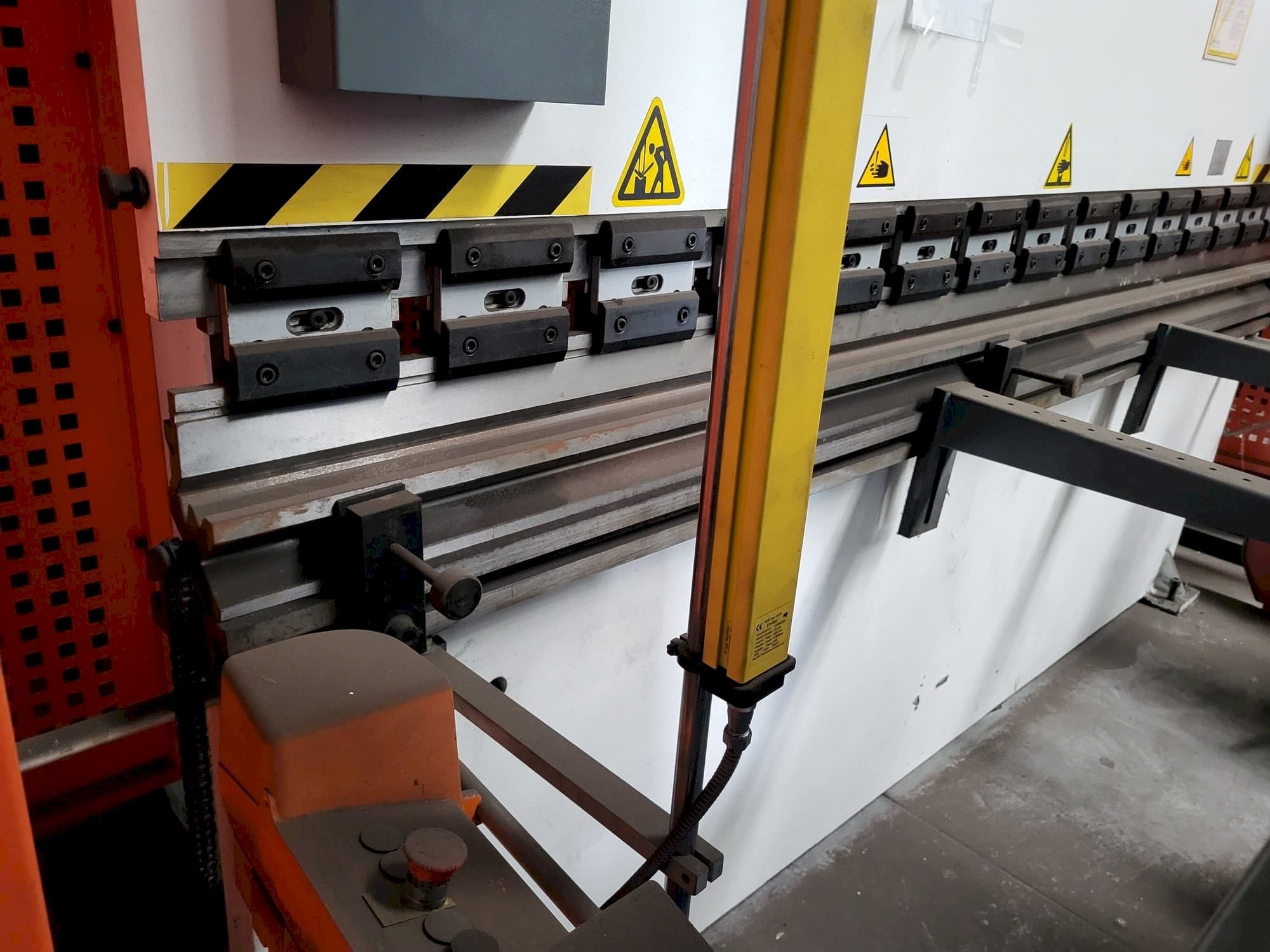

Left side view of YSD PPT/135/30 NC  machine

YSD PPT/135/30 NC

YSD - PPT/135/30 NC


Rs. 1,545,550

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Chloé Martin

+33 7 86 98 48 01


Click to chat on WhatsApp
Show in original language

This YSD PPT/135/30 NC press brake machine was built in the year 2012 in Poland and has 700 hours. It is equipped with an ELGO Electric Seria P40-000 control unit. The machine has a pressing force of 1350 kN and a bending length of 3000 mm.


  • brand: YSD
  • year: 2012
  • MODEL: PPT/135/30 NC
  • production hours: 700
  • application type: Bending
  • Location: Poland
  • machine type: Bending machines
  • availability: Immediately
  • control unit brand: ELGO
  • GINDUMAC ID: PL-BEN-YSD-2012-00001

Technical Information

General Data

  • Measurements width: 3145 mm
  • Measurements depth: 1435 mm
  • Measurements height: 2420 mm
  • Machine weight: 7500 kg

Control Unit

  • Brand: ELGO
  • Model: Electric Seria P40-000

Main drive

  • Pressing force: 1350 kn
  • Bending length: 3000 mm


  • Outer width: 180 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance between columns: 2550 mm
      • - Max backgauge distance: 600 mm
      • - Throat depth: 300 mm
      • - Max slider stroke: 130 mm
      • - Approach speed: 100 mm/s
      • - Working speed: 8 mm/s
      • - Return speed: 60 mm/s
      • - Motor power: 7. 5 kw
      • - Oil tank capacity: 125 liters
    • Qualitative Machine Benefits:
      • - Full documentation is available, and the machine is ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
