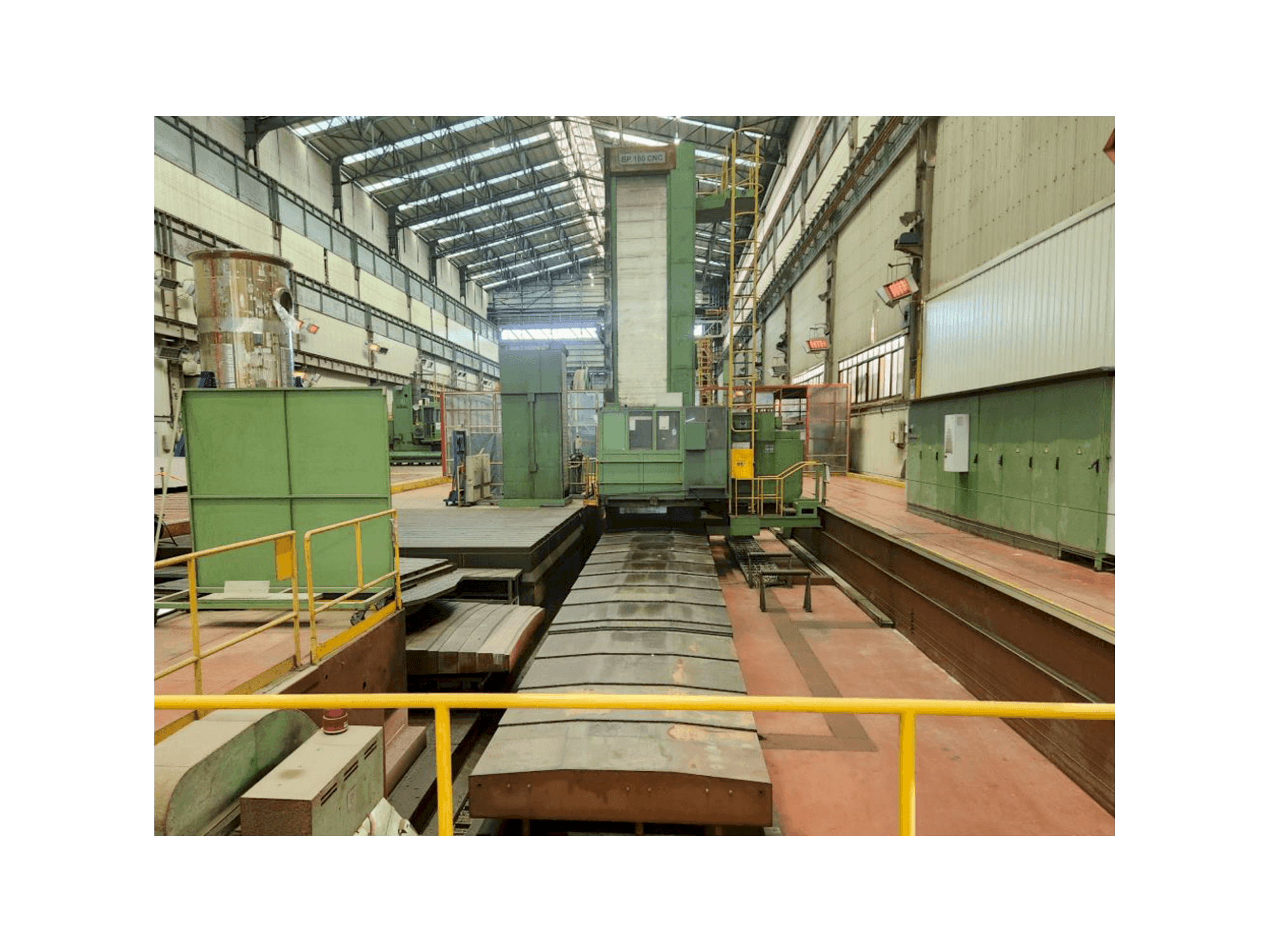

Front view of WMW BP 160 CNC  machine

WMW - BP 160 CNCKR-BOR-WMW-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This WMW BP 160 CNC Horizontal Floor type boring and milling machine was made in the year 2008. It is equipped with a Siemens 840D control unit. The machine has a spindle speed of 4 - 2500 rpm and a boring bar diameter of Ø 160.

Overview

  • brand: WMW
  • year: 2008
  • MODEL: BP 160 CNC
  • application type: Boring
  • Location: South Korea
  • machine type: Boring Machine
  • availability: Sold
  • control unit brand: Siemens

Technical Information - WMW BP 160 CNC

Control Unit

  • Brand: Siemens
  • Model: 840D

Main drive

  • Spindle speed range: 4 - 2500 1/MIN
  • Spindle motor power: 100 kw
  • Tool taper: ISO 50

Movement

  • X-AXIS Movement: 11000 mm
  • Y-AXIS Movement: 5000 mm
  • Z-AXIS Movement: 1200 mm
  • V-Axis Movement: 2000 mm
  • W-Axis Movement: 1000 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Spindle torque 12,000nm
      • - Boring bar diameter Ø 160
      • - Ram section 500 x 620mm
      • - Feed rate of x, y-axis 15,000mm/min
      • - Feed rate of z, w-axis 6,000mm/min
      • - Rotary table size 2,500 x 2,500mm
      • - Rotary table loading capacity 40tons
      • - Floor plate size 6,000 x 6,000mm
      • - Attachment u-tronic / 2-axis head / angle head / ram cover

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
