TOS - WH 10 CNC SK-OTH-TOS-1996-00001

Rs. 6,059,974
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

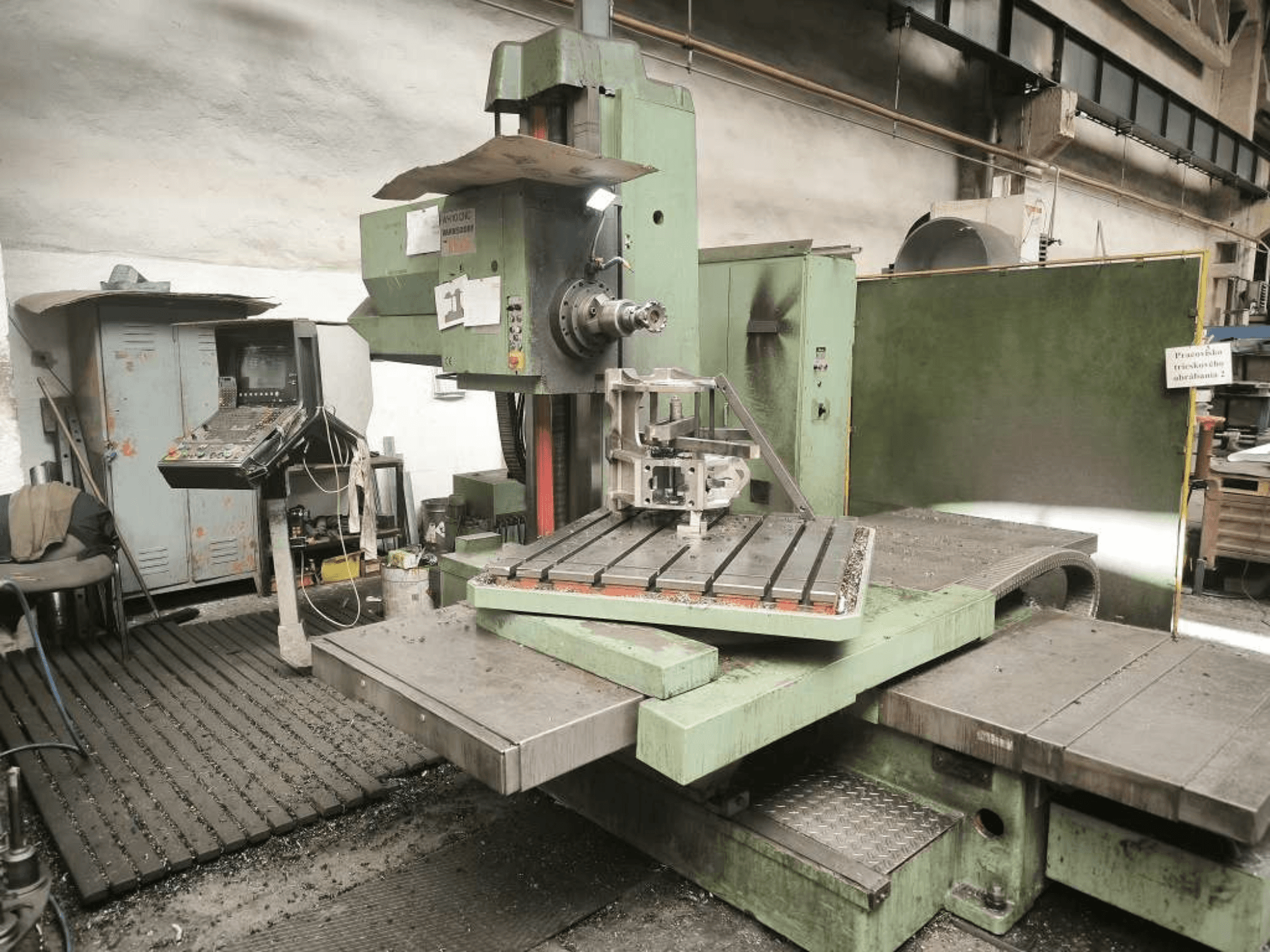

This 4-axis TOS WH 10 CNC boring machine was manufactured in 1996. It features a longitudinal travel of 1250 mm, transverse feed of 1100 mm, and vertical travel of 950 mm. The machine has a robust table size of 1000 x 1120 mm and a maximum table load capacity of 3000 kg. If you are looking to get high-quality boring capabilities, consider the TOS WH 10 CNC machine we have for sale. Contact us for further details.

Overview

  • brand: TOS
  • year: 1996
  • MODEL: WH 10 CNC
  • application type: Other Machine Tools
  • Location: Slovakia
  • machine type: Boring Machine (Metal)
  • control unit brand: HEIDENHAIN

Technical Information - TOS WH 10 CNC

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC407

Dimensions

  • Machine Weight: 13400 kg
  • Table Load: 3000 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 1250 mm
  • Y-axis Travel: 950 mm
  • Z-axis Travel: 1100 mm

Technical Specification

  • Spindle Speed: 1250 RPM
  • Taper Size: ISO 50

Additional Information

  • Spindle diameter: 100 mm

  • Table size: 1000 x 1120 mm

  • Retrofitted: 2018

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
