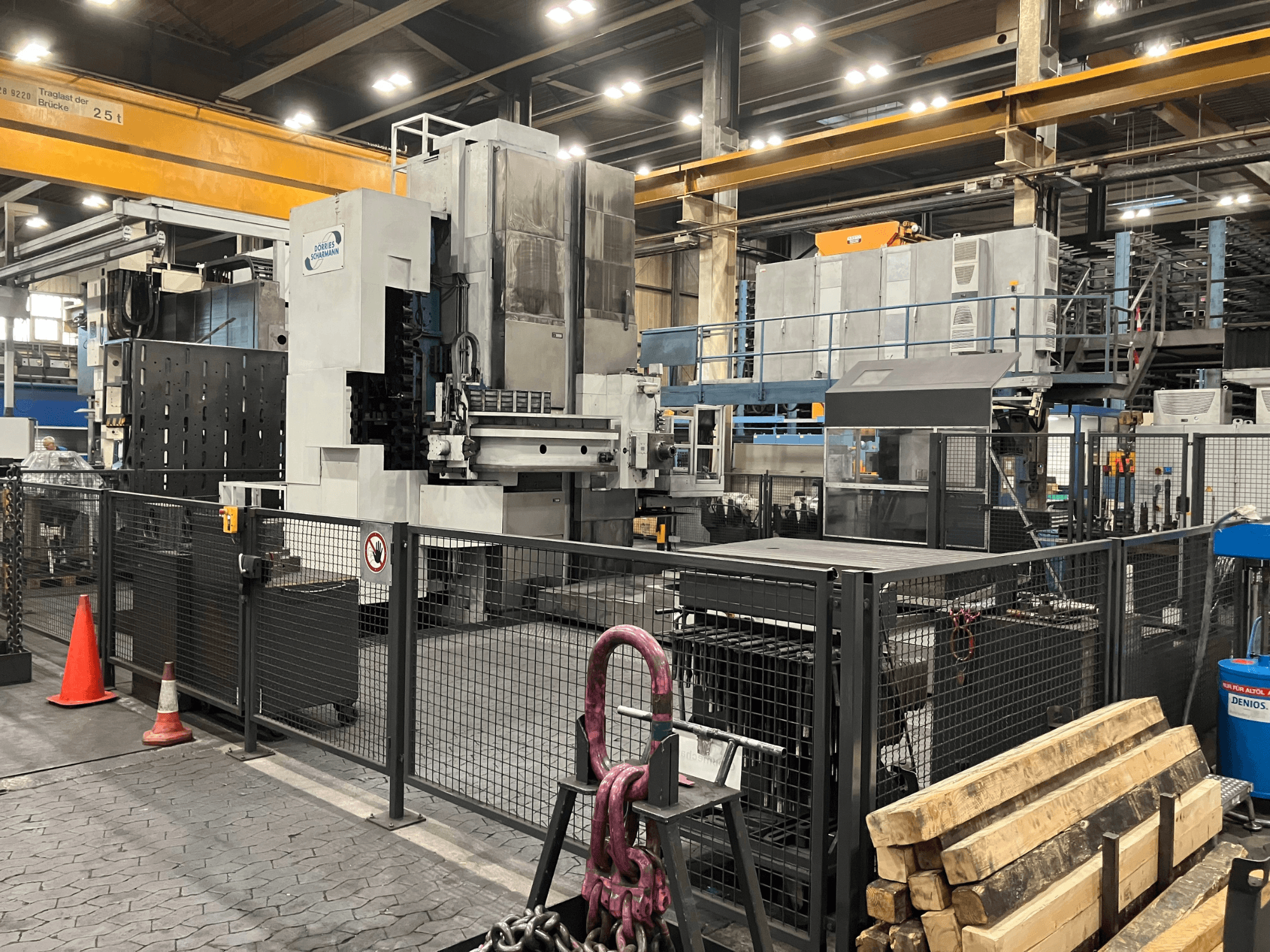

DÖRRIES SCHARMANN - Heavycut 1.2 TDV4 DE-OTH-DOR-1989-00001

Technical Specifications

* Control: Heidenhain iTNC 530

* X-Axis Travel: 2,500 mm

* Y-Axis Travel: 2,500 mm

* Z-Axis Travel: 800 mm

* W-Axis Travel: 700 mm

* V-Axis Travel: 1,500 mm

* B-Axis: 360°

* Work Spindle Diameter: 150 mm

* Tool Holder: ISO 50 DIN 2079

* Number of Gear Stages: 3

* Table Size: 2,000 × 2,500 mm

* Table Height: 1,050 mm

* Table Load Capacity: 25,000 kg

* V-Axis Feed Rate: 1–10,000 mm/min

* B-Axis Feed Rate: 2.4 rpm

* X/Y/Z/W Rapid Traverse: 10,000 mm/min

* X/Y/Z/W Feed Rate: 1–10,000 mm/min

* Gantry Beam Cross-Section: 325 × 325 mm

* Tool Magazine: Chain Magazine

* Tool Magazine Capacity: 40 tools

* Max. Tool Diameter: 340 mm

* Max. Boring Bar Diameter: 500 mm

* Max. Tool Length: 500 mm

* Max. Tool Weight: 40 kg

* Tool Magazine Rapid Speed: approx. 40 m/min

* Tool Magazine Creep Speed: approx. 1.2 m/min

* Coolant System: Coolant through spindle

* Coolant System: External coolant nozzles

* Coolant Filtration: Paper band filter

* Process Monitoring: Adaptive Control

* Handwheel: HR 550 FS

* DNC: Heidenhain DNC

* Load Adaptive Control: Yes

* KinematicsOpt: Yes

* Global Program Settings: Yes

* HDR and SIK: Yes

Additional equipment / accessories

* WFK 100 S

* WFK 50 S

* Automatic mounting of milling head

* Automatic milling head clamping

* Milling head drive via controlled shaft

* Tool cooling with 4 nozzles

* Chip conveyor

* Torque monitoring

* Position displays

Retrofit / Modernization in 2013

* CNC Control: Heidenhain iTNC 530

* 19" TFT colour flat-panel display BF 760

* TE 745 TouchPad with integrated machine control panel

* HR 550 FS electronic handwheel with grid and connection components

* HDR and SIK

* Global Program Settings

* KinematicsOpt

* Load Adaptive Control

* Heidenhain DNC
