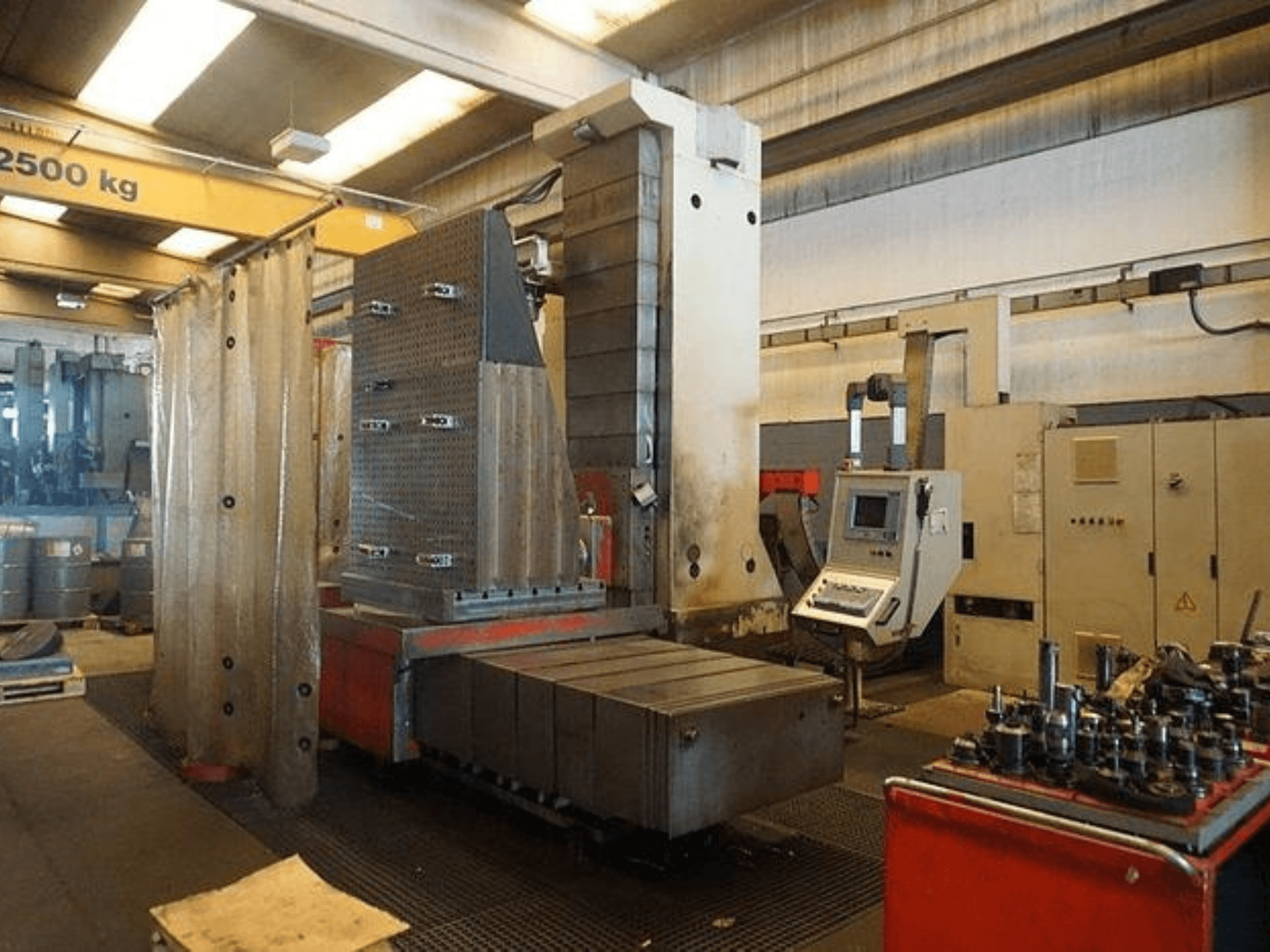

This 5-axis San Rocco FMC 110/S-MMZ CNC ECS 4801 (OE) was manufactured in 2000. It features a horizontal spindle orientation, a table size of 1,300 x 1,100 mm, and a tool magazine with 30 positions. Spindle speeds range from 20 to 3,000 rpm, and it includes a continuous rotary table. Consider the opportunity to buy this San Rocco FMC 110/S-MMZ CNC ECS 4801 (OE) boring machine. Contact us for more information about this machine.
Overview
- brand: San Rocco
- year: 2000
- MODEL: FMC 110/S-MMZ CNC ECS 4801 (OE)
- application type: Other Machine Tools
- Location: Italy
- machine type: Boring Machine (Metal)
Technical Information - San Rocco FMC 110/S-MMZ CNC ECS 4801 (OE)
Movement
- Number of Axes: 3
- X-axis Travel: 3100 mm
- Y-axis Travel: 2000 mm
- Z-axis Travel: 2200 mm
Technical Specification
- Spindle Power: 27 kW
- Spindle Speed: 3000 RPM
- Taper Size: ISO 50
Additional Information
Table size: 1,300 x 1,100 mm
W-axis travel (boring head): 600 mm
B-axis rotation (rotary table): Continuous
Spindle orientation: Horizontal
Tool magazine: 30 positions
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
