- ➤ Used Wenzel LH87 - 2010 - CMM For Sale | gindumac.com

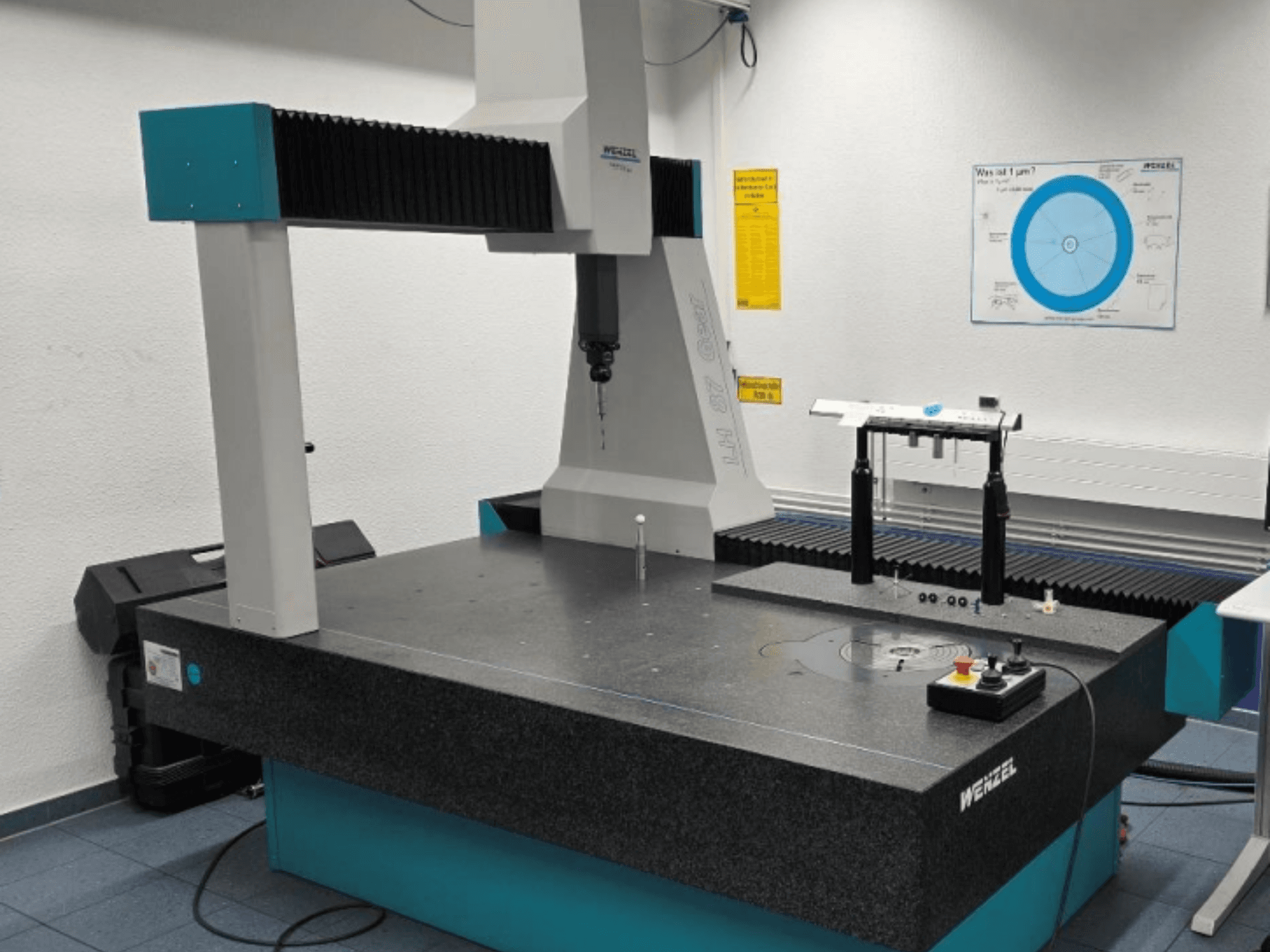

This 3-axis Wenzel LH87 was manufactured in 2010. It features an X-axis travel of 800 mm, Y-axis travel of 1500 mm, and Z-axis travel of 680 mm, with a maximum table load of 1000 kg. The machine includes a Renishaw probe system and integrated rotary indexing table. If you are looking to get high-quality measurement capabilities, consider the Wenzel LH87 CMM machine we have for sale. Contact us for further details.
Overview
- brand: Wenzel
- year: 2010
- MODEL: LH87
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
- control unit brand:
Technical Information - Wenzel LH87
Dimensions
- Machine Height: 2900 mm
- Machine Length: 60 mm
- Machine Width: 2560 mm
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 680 mm
Additional Information
Probe system: Renishaw PH10M / SP25M
Last calibration: 06.09.2023
Operating system: Windows 7 Ultimate
Software: Metrosoft CM 3.111, wingeco V7.403, TMain 4.113.1
Rotary table: Integrated rotary indexing table
Additional equipment
Scanning modules: SM25-2, SM25-4, SM25-5
Stylus holders: SH25 series
Stylus kit: 200–400 mm
Reference spheres: Inclined and standard
Gear measurement software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
