Wenzel LH 87

Photo Gallery

Wenzel - LH 87HU-MEA-WEN-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Wenzel LH 87 - 2017 - CMM For Sale | gindumac.com

Show in original language

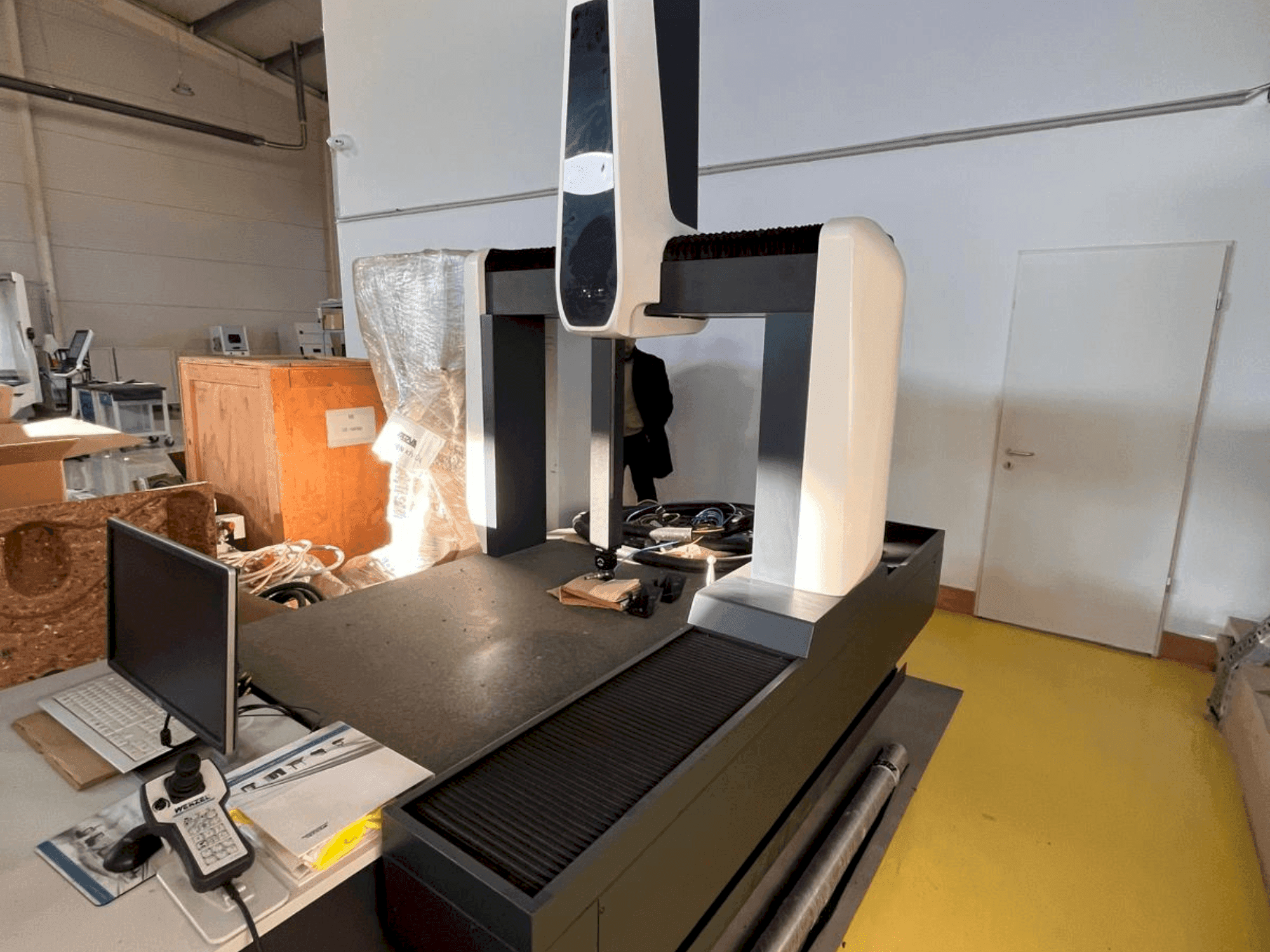

This Wenzel LH 87 was manufactured in 2017. It is a 3D coordinate measuring machine with a measuring range of 800 x 1500 x 700 mm. Features include a tactile system TP200, resolution of 0.1 μm, and a base table of 1040x2280 mm. It supports a workpiece weight up to 1000 kg. Consider the opportunity to buy this Wenzel LH 87 CMM machine. Contact us for more information.

Overview

brand: Wenzel
year: 2017
MODEL: LH 87
application type: Measuring
Location: Hungary
machine type: Coordinate Measuring Machine (CMM)
availability: Sold

Technical Information - Wenzel LH 87

General Data

Measurements width: 2570 mm
Measurements depth: 3012 mm
Measurements height: 1700 mm
Machine weight: 3210 kg

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece weight: 1000 kg

Media

Main electronic connection: 230 V/50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Base table (usable surface): 1040 x 2280 mm
- - Din 876/quality: 00
- - Working height: 300 mm
- - Compressed air requirement: 6-10 bar

Extra information

- Length Measurement Uncertainty: Tactile System TP200 MPEe(μm): 2.0 + L/300 MPEp(μm): 2.0 Resolution: 0.1 μm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
