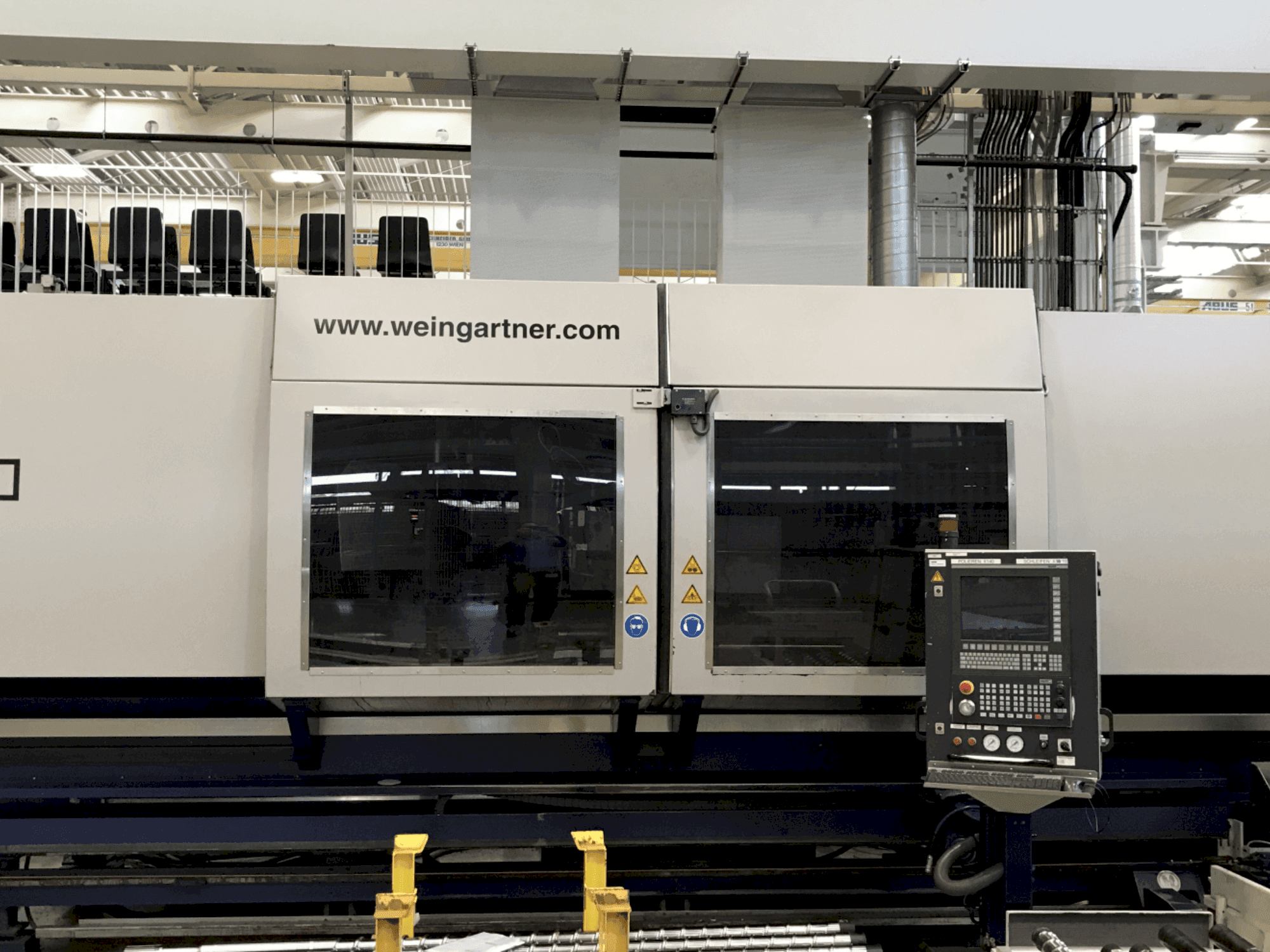

Front view of Weingartner Finish 450/3000  machine

Weingartner Finish 450/3000

Weingartner - Finish 450/3000

2009

Rs. 9,010,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-Axis WEINGÄRTNER Finish 450/3000 grinding machine, manufactured in 2009, integrates a NUM Axium Power control system for precision operations. It features a manual 3-jaw chuck with a 128mm passage diameter and a workpiece capacity of up to 320mm in diameter and 3000mm in length, with a maximum weight of 3500kg including support. The machine’s work spindle offers speeds tailored to the workpiece diameter, enhancing versatility. Buy this WEINGÄRTNER Finish 450/3000 grinding machine for specialized finishing tasks. For more information about this grinding machine, please reach out to us.

Overview

  • brand: Weingartner
  • year: 2009
  • MODEL: Finish 450/3000
  • application type: Grinding
  • Location: Austria
  • machine type: Grinding machines
  • availability: Immediately
  • control unit brand: NUM
  • GINDUMAC ID: AT-GRI-WEI-2009-00001

Technical Information

General Data

  • Measurements width: 4500 mm
  • Measurements depth: 6000 mm
  • Measurements height: 2900 mm
  • Machine weight: 12900 kg

Control Unit

  • Brand: NUM
  • Model: Axium Power

Main drive

  • Number of spindles: 1
  • Spindle speed range: 120 rpm 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 200 mm
  • X-AXIS Rapid traverse: 5m/min
  • Z-AXIS Movement: 3500 mm
  • Z-AXIS Rapid traverse: 15m/min
  • W-Axis Movement: 3500 mm
  • W-Axis Rapid traverse: 10 m/min

Workpiece

  • Workpiece weight: 3500 kg

    Additional equipment

    • - 3-jaw chuck with passage diameter 128mm
    • - Coolant system with 300L tank
    • - Sanding belt and sisal disk for surface finishing

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - A-axis: swivel range +/- 70°
        • - Workpiece diameter max: 320 mm
        • - Workpiece length max: 3000 mm
        • - Advanced control system for precision grinding.
        • - Multiple rapid traverse options to reduce non-cutting time.
      • Qualitative Machine Benefits:
        • - High precision and versatility in handling different sizes and weights of workpieces.
        • - Stability and accuracy in grinding operations, enhanced by specific design features such as pneumatic weight compensation.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
