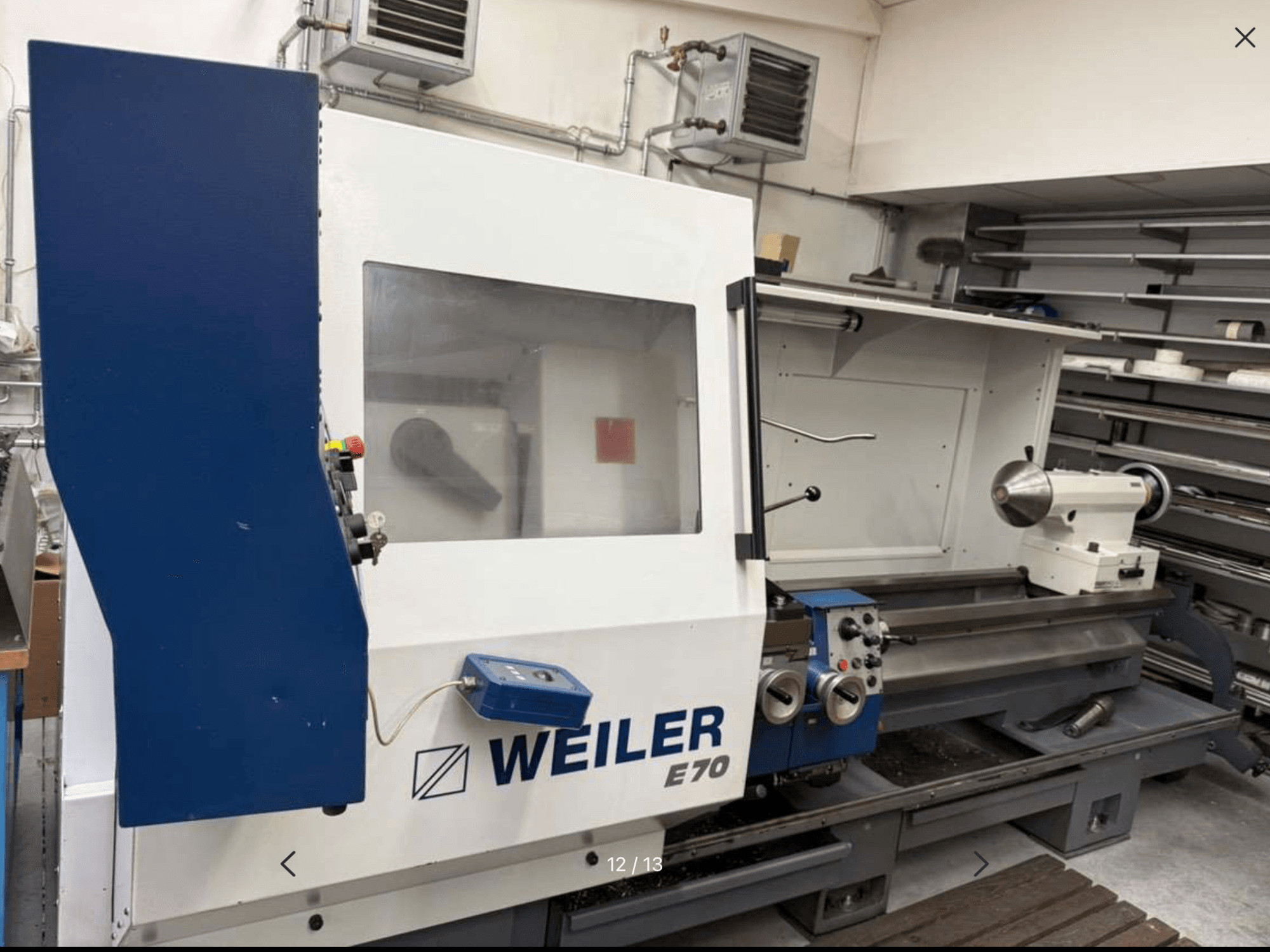

Weiler - E70 / 2000AT-TUR-WEI-2008-00001

• Working range and capacities:

  • Swing over bed: 720 mm

  • Swing over cross slide: 430 mm

  • Center height: 360 mm

  • Distance between centers: 1,000 / 2,000 / 3,000 / 4,000 / 6,000 mm

  • Bed width: 480 mm

  • Max workpiece weight (unsupported): 2,500 kg

  • Max workpiece weight (with steady rest): 3,800 kg

• Spindle and headstock:

  • Spindle bore (standard): 106 mm

  • Spindle bore (options): 128 / 165 / 216 / 262 / 317 mm

  • Spindle nose: DIN 55027 size 11

  • Max torque at spindle: 3,150 Nm

• Feeds and movement:

  • Z-axis rapid traverse: 10,000 mm/min (10 m/min)

  • X-axis rapid traverse: 5,000 mm/min (5 m/min)

  • Feed force (Z): 20,000 N

  • Feed force (X): 10,000 N

• Tailstock:

  • Quill diameter: 115 mm

  • Quill stroke: 225 mm

  • Inner taper: MK 6 (Morse Taper)

• Threading capabilities:

  • Metric threads: 0.1–400 mm

  • Inching threads: 1/4–56 TPI

  • Module threads: 0.125–28 mm

  • DP threads: 1–224 DP

• Hours: 22,491 h

Additional equipment

• Steady rest

• Tailstock

• Faceplate
