Weeke - OPTIMAT BP 120LV-CNC-WEE-2001-00001

Rs. 2,055,220
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

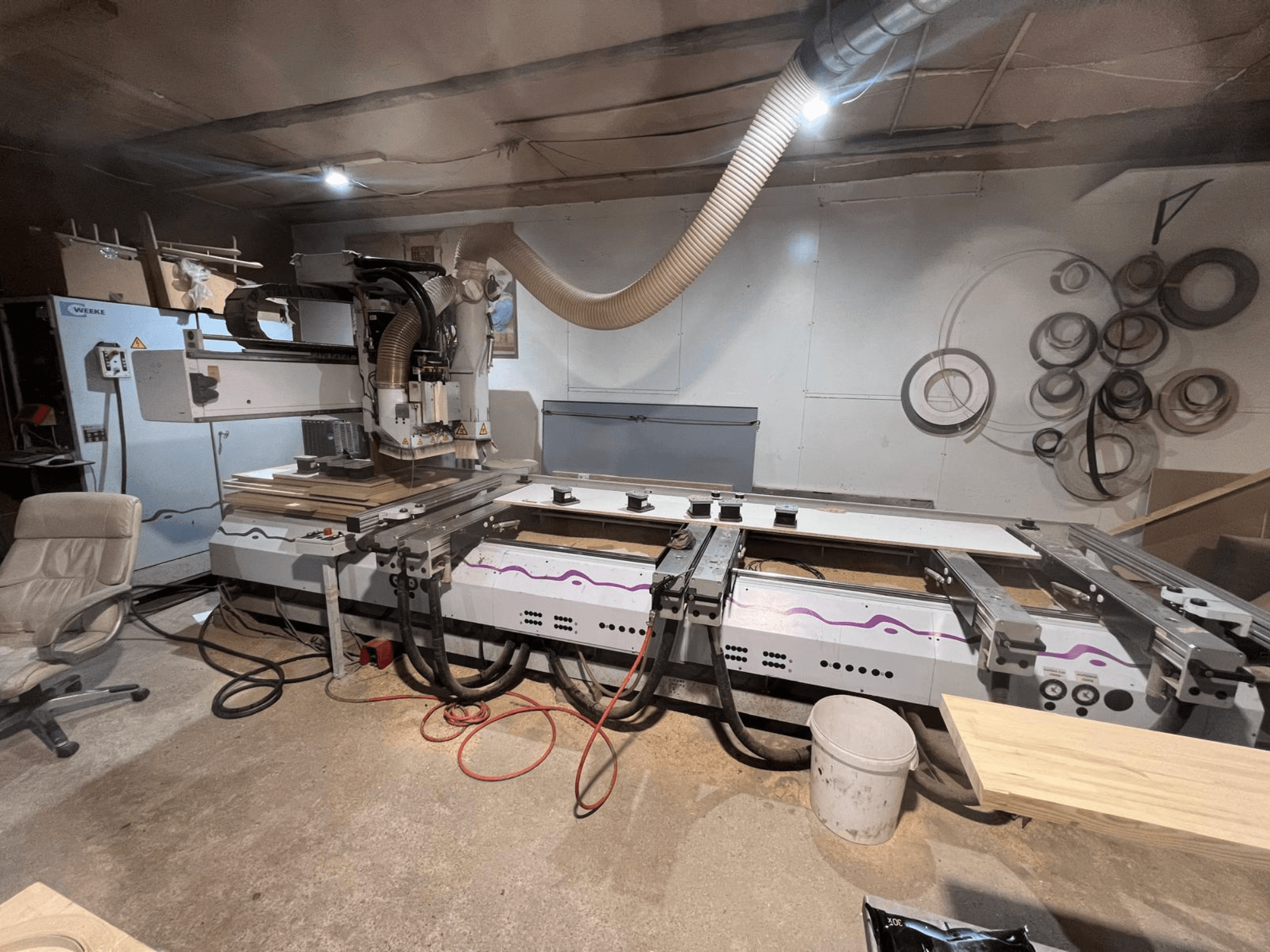

This 3-axis Weeke OPTIMAT BP 120 was manufactured in 2001. It features a working area of 2800 mm in the X direction, 1252 mm in the Y direction, and 200 mm in the Z direction. The machine includes an automatic tool changer with an 8-position tool magazine and a maximum spindle speed of 24,000 rpm. If you are looking to get high-quality CNC wood machining capabilities, consider the Weeke OPTIMAT BP 120 machine we have for sale. Contact us for further details.

Overview

  • brand: Weeke
  • year: 2001
  • MODEL: OPTIMAT BP 120
  • application type: CNC Wood Machining
  • Location: Latvia
  • machine type: CNC Wood Machining Centre

Technical Information - Weeke OPTIMAT BP 120

Movement

  • Number of Axes: 3
  • X-axis Travel: 2800 mm
  • Y-axis Travel: 1252 mm
  • Z-axis Travel: 200 mm

Technical Specification

  • Spindle Speed: 24000 RPM

Additional Information

  • CNC software: HOMAG WOODWOP 4.0

  • Electrical: 400 V, 50 Hz, 3~ + N; rated current 32 A; control/aux voltage 24 V; fuse rating 35 A

  • Automatic tool changer: Yes; tool magazine capacity: 8 positions

  • Table: Console / Pod & Rail; table length 3260 mm; number of consoles: 6

  • Main spindle: quantity 1; tool holder HSK-F63

  • Drilling spindles: vertical 21; horizontal (X) 4; horizontal (Y) 2

  • Grooving saw: X direction

  • Material clamping: Vacuum clamping; vacuum system: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
