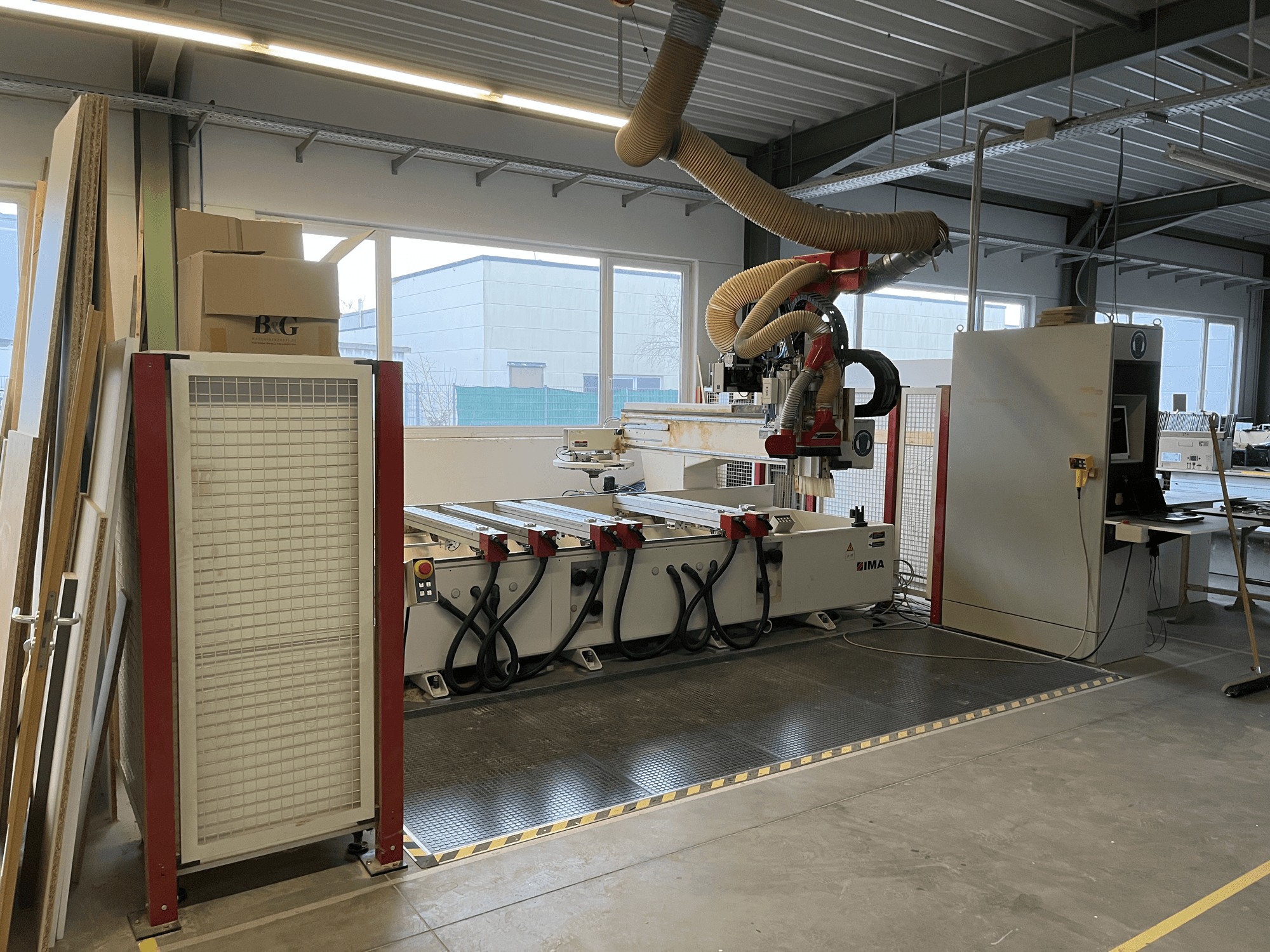

This 4-axis IMA BIMA 410 CNC Wood Machining Centre was manufactured in 2000. It features a working area of 3000 mm in X and 1200 mm in Y, with a maximum clamping height of 100 mm. The machine is equipped with an automatic central lubrication system and AC servo motors for precise operation. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 410 machine we have for sale. Contact us for further details.
Overview
- brand: IMA
- year: 2000
- MODEL: BIMA 410
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
Technical Information - IMA BIMA 410
Movement
- Number of Axes: 4
- X-axis Travel: 3000 mm
- Y-axis Travel: 1200 mm
Additional Information
Working area X: 3000 mm
Working area Y: 1200 mm
Max. clamping height Z1: 100 mm
Max. workpiece thickness Z2: depending on equipment/application
Table height: approx. 1000 mm
Pendulum operation X: 2 × 1400 mm
Free space center X: 200 mm
Pendulum operation alternative X: 2 × 900 mm
Free space center alternative X: 1200 mm
Machine weight: approx. 6000 kg
Guide system: precision linear guides hardened approx. 62 HRC
Central lubrication: automatic for all main axes and ball screw
Drive system: AC servo motors with encoder
X/Y drive: rack and pinion
Z drive: ball screw
Feed rate: 40 m/min
Rapid traverse X/Y: 80 m/min
Rapid traverse Z: 25 m/min
Acceleration: 3 m/s²
Extraction connection main spindle: 300 mm
Extraction connection drilling spindles: 120 mm
Air speed: approx. 28 m/s
Air volume: approx. 7080 m³/h
Vacuum pump capacity: 100 m³/h
Compressed air connection: 1/2"
Air pressure: 6 bar
Control voltage: 24 V DC
Connected load: approx. 24 kVA
Power supply: 3/N/PE 400/230 V 50 Hz
Frequency converter: 0–480 Hz
Ambient temperature: +15 to +35 °C
Control system: IMATRONIC NT 231
Interpolation: linear all axes, circular 2.5D
Resolution: 0.001 mm
Spindle: HSK F63
Tool clamping force: 11000 N
Max tool weight: 6 kg
Speed range: 1500–18000 rpm
Spindle power: 7.5 kW
Cooling: water cooled
CNC axis: 360° rotating
Tool magazine type: plate changer
Tool positions: 18
Max tool length: 150 mm
Max tool diameter: 100 mm (150 mm with free сосед positions)
Max load: 60 kg
Saw unit motor: 1.5 kW
Saw speed: 5600 rpm
Saw blade diameter: max. 150 mm
Drilling unit: 14 spindles
Spindle stroke: 70 mm
Drive: 2.2 kW
Speed: 3150 rpm
Drill diameter max: 20 mm
Adapter head spindles: 4
Speed max: 6000 rpm
Drill diameter max: 12 mm
Table equipment:
6 adjustable support arms
12 suction cups 114 × 159 × 100 mm
6 suction cups 125 × 75 × 100 mm
Vacuum system: 2-circuit clamping system
Electrical cabinet size: 2000 × 1800 × 600 mm
DEFECT: The main spindle no longer releases the interchangeable drill head
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
