HUNDEGGER - K2-ADE-CNC-HUN-2000-00001

Rs. 5,727,768
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

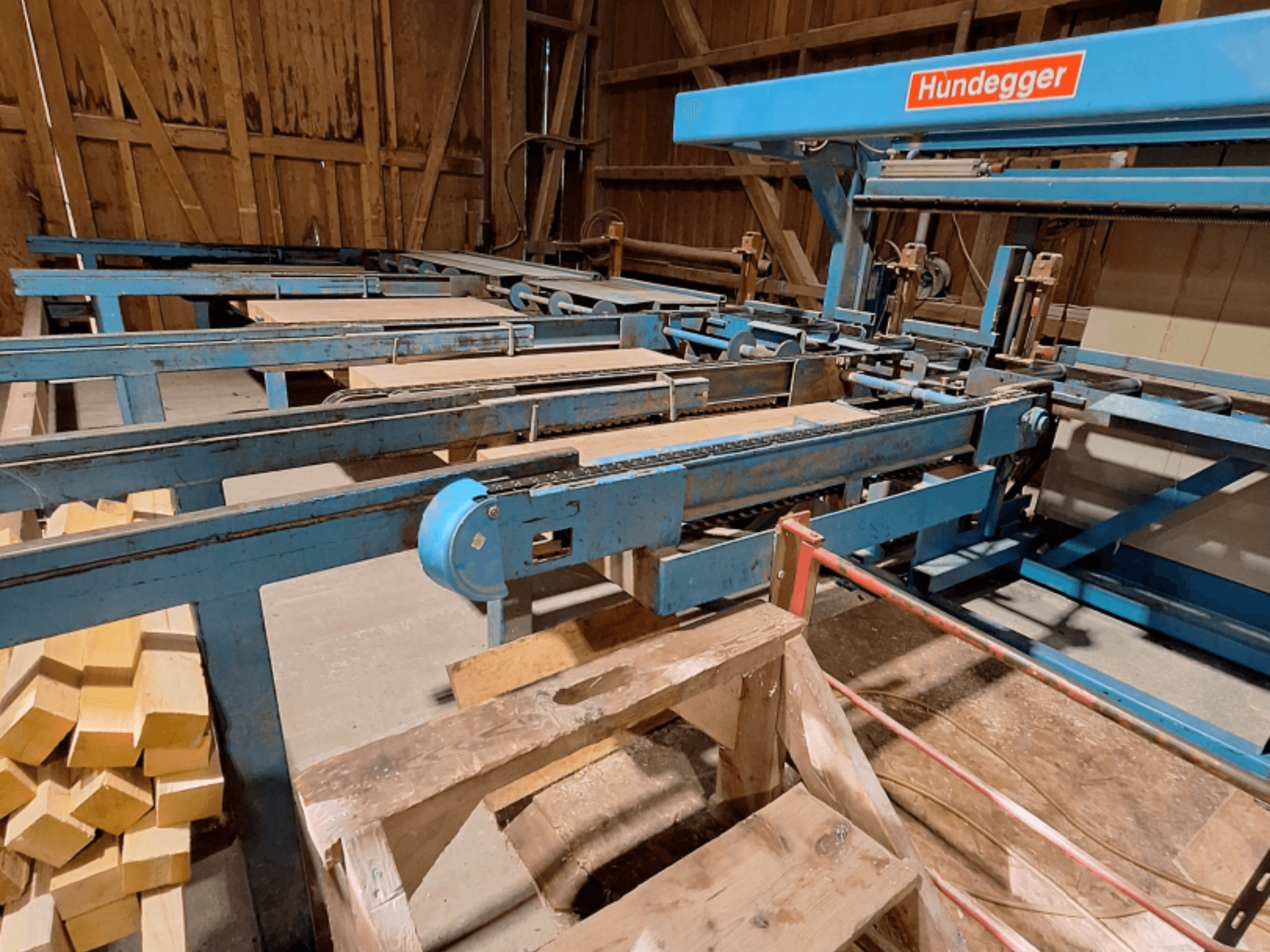

This 4-axis HUNDEGGER K2-A was manufactured in 2000. It features a workpiece cross-section capacity ranging from 20 x 50 mm to 300 x 450 mm, with a minimum workpiece length of 300 mm in automatic mode. The machine includes various components such as an under-table swivel cut-off saw and a universal milling unit. If you are looking to get high-quality CNC wood machining capabilities, consider the HUNDEGGER K2-A machine we have for sale. Contact us for further details.

Overview

  • brand: HUNDEGGER
  • year: 2000
  • MODEL: K2-A
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Wood Machining Centre

Technical Information - HUNDEGGER K2-A

Dimensions

  • Machine Height: 2550 mm
  • Machine Length: 12000 mm
  • Machine Weight: 13000 kg
  • Machine Width: 2400 mm

Movement

  • Number of Axes: 4

Additional Information

- Machine Type: Fully Automatic Joinery Machine

- Workpiece Cross-Section Min.: 20 x 50 mm

- Workpiece Cross-Section Max.: 300 x 450 mm

- Minimum Workpiece Length (Automatic Mode): 0.3 m (300 mm)

- Operating Voltage: 400 / 230 V (3/N/PE)

- Electrical Frequency: 50 Hz

- Fusing Protection: 3 x 63 A

- Peak Power Requirement: 15 kW

- Operating Compressed Air Pressure: 8.5 bar (Max: 10 bar)

- Compressed Air Flow Requirement: > 600 l/min

- Hydraulic Operating Pressure: 100 bar

- Noise Emission Level (LpA): 79 dB(A) ± 3 dB(A)

- Transport Dimensions (L x W x H): 12.00 m x 2.40 m x 2.55 m

- Included / Equipping Components:

* Under-table Swivel Cut-Off Saw with HM saw blade (D=735 mm, s=6.0 mm)

* Universal Milling Unit with cylindrical cutterhead (D=350 mm, B=120 mm)

* Vertical Combo Support

* Horizontal Combo Support

* Rafter Nail Drilling Unit

* Slotting / Mortising Unit

* Infeed & Outflow Conveyors / Positioning Trolleys

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
