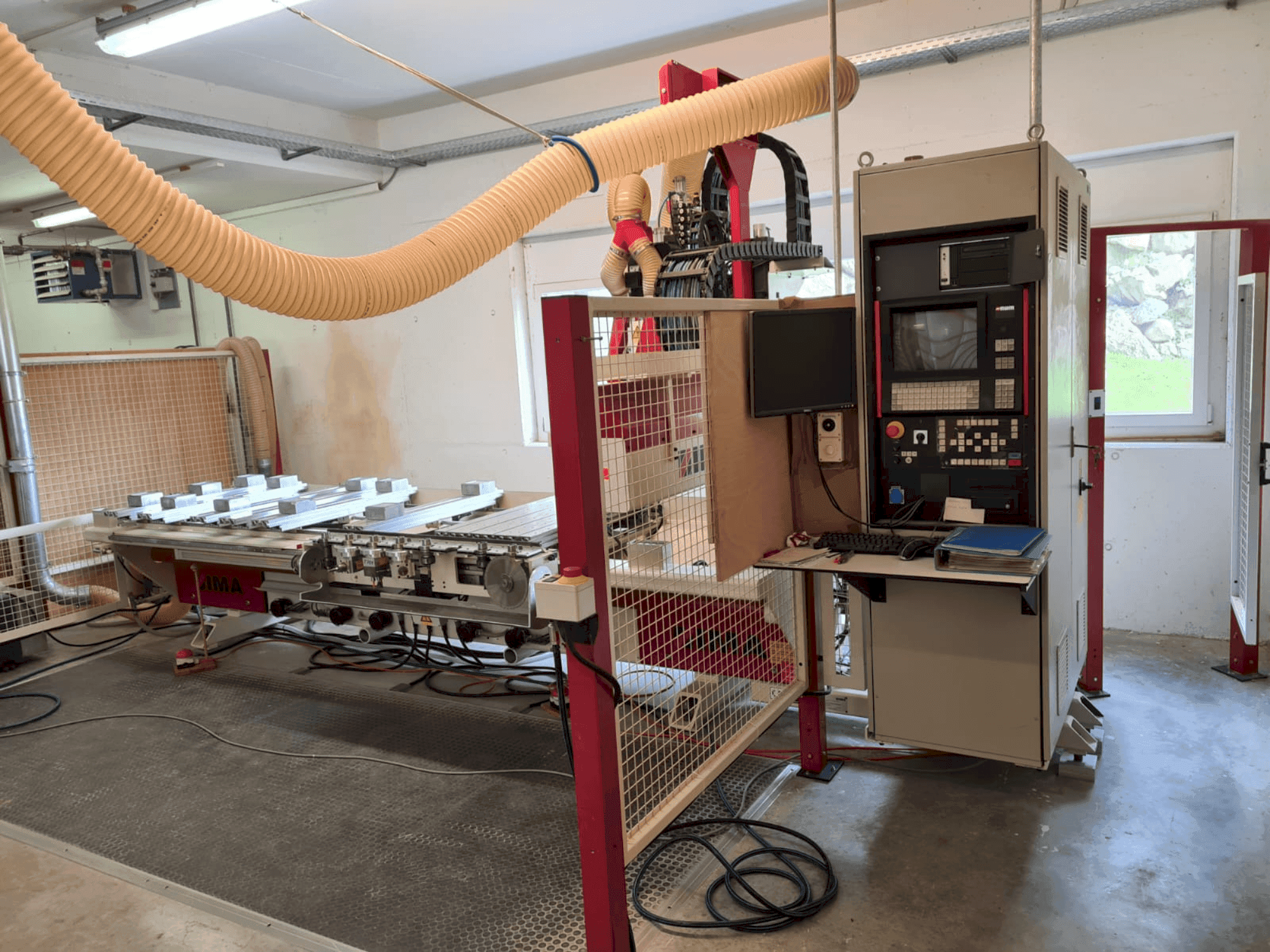

IMA - BIMA 310 120/300CH-CNC-IMA-1999-00001

Additional equipment

• 1 vertical drilling unit in Y Direction
• 1 vertical drilling unit in X Direction
• 1 main spindle with programmable direction of rotation
• 1 centrally integrated CNC axis rotating 360 degrees
• 1 adapter unit saw, fixed at 90 degrees
• Saw blade diameter: 200 mm
• 1 adapter unit horizontal drilling and milling head (cross head)
• 1 adapter unit horizontal milling cutter (face milling)
• 2x adapter units for hinge drilling
• Includes 1 new Siemens vacuum pump + numerous accessories

Machine Benefits

Technical Machine Benefits

• Max. Clamping height from top edge of the suction plate: z1 100 mm
• Working height: 950 mm
• Path operation speed: 20 m/min
• Acceleration: 5 m/s²
• Changing field area without pendulum machining: x 2 x 1400 mm
• Free space in the middle: x 200 mm
• With pendulum machining: x 2 x 900 mm
• Free space in the middle: x 1200 mm
• Tool feed: automatic
• Feed force: 11000 n

Extra Information

Media Extraction standard: Connection for 200 mm, 120 mm, and 100 mm diameter Extraction speed: Approx. 28 m/sec Extraction volume: Approx. 3200 m³ per hour 1 vacuum pump 40 m³/h Compressed air: Central connection for 1/2" with maintenance unit. Air pressure 6 bar constant Electrical Equipment Electrical installation according to EN Control cabinet dimensions (HxWxD): 2000 mm / 1200 mm / 600 mm Safety and protection measures according to CE regulations
