Vimercati PHSY 30X1250 Bending machine

Show in original language

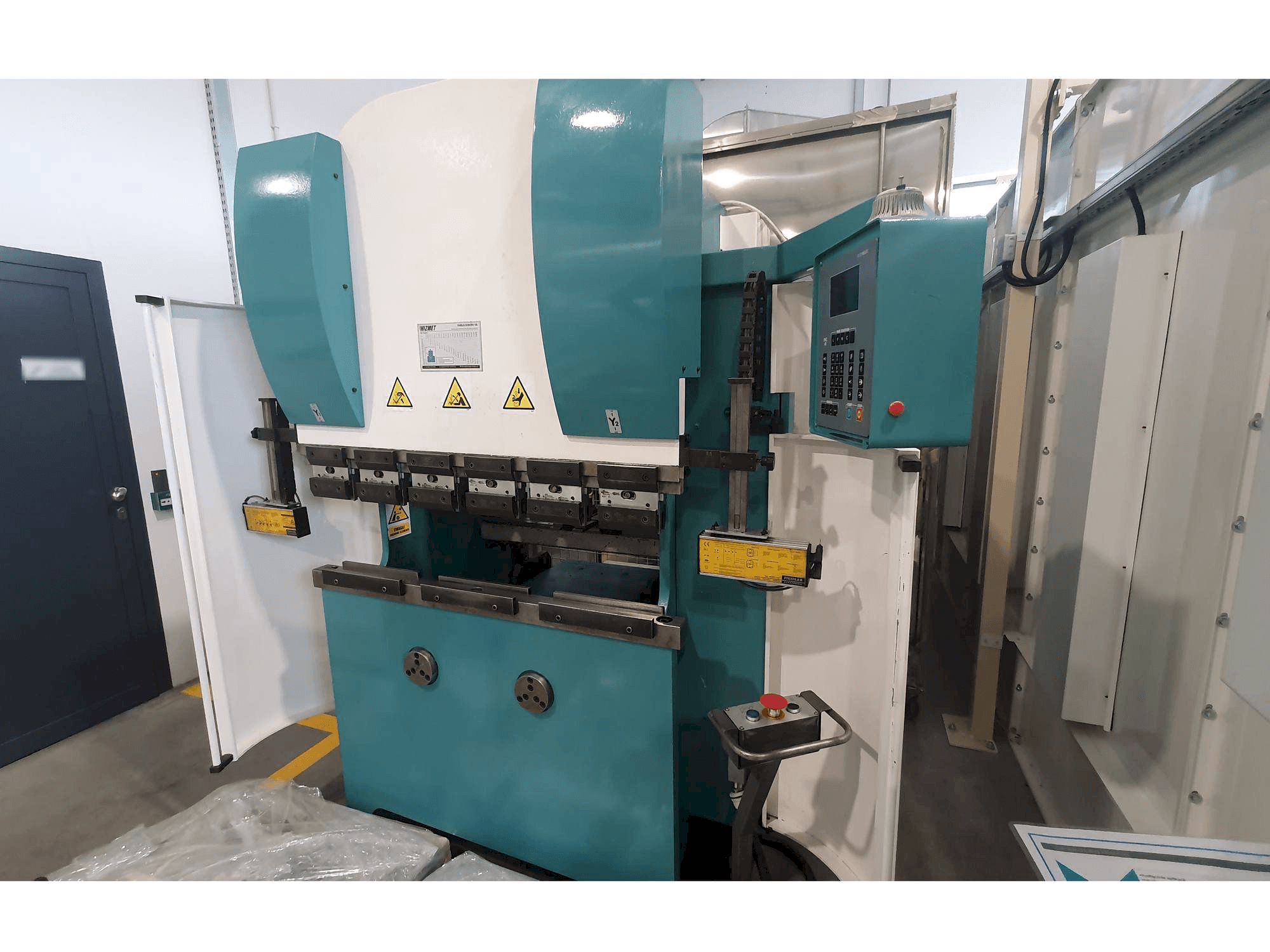

This Vimercati PHSY 30X1250 Bending machine was built in the year 2006. It has been working for 10900 hours. This machine is equipped with a Cybelec DNC 60 control unit. It operates with a maximum bending length of 1250 mm. This machine is in very good working condition ready for tests.

Overview

brand: Vimercati
year: 2006
MODEL: PHSY 30X1250
production hours: 10900
application type: Bending
Location: Poland
machine type: Bending machines
availability: Sold
control unit brand: Cybelec
GINDUMAC ID: PL-BEN-VIM-2006-00001

Technical Information

General Data

Measurements width: 2100 mm
Measurements depth: 1300 mm
Measurements height: 2300 mm
Machine weight: 2800 kg

Control Unit

Brand: Cybelec
Model: DNC 60

Media

Main electronic connection: 380V / 50 Hz
Power consumption: 4 kW

Additional equipment

- 1 set of standard tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum bending length: 1250 mm
- - Maximum opening height (y axis): 373 mm
- - Back gauge (x axis): 450 mm
- - Motor power: 4 kw
- - Table height for work : 940mm
- - Distance between columns (y1-y2): 1000mm
- - Technical condition: very good
- - Front supports for bending: none
- - Rear bumper distance adjustment (x axis): servo drive
- - Beam adjustment (y axis): servo drive
Qualitative Machine Benefits:
- - Back gauge adjustment (z axis): manual, back gauge height adjustment (r axis): cnc-program
- - Type of punch and die holders: amada quick-action fastener
- - Safety photocells
- - Side safety devices

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
