Victor V Turn NP

Photo Gallery

Victor - V Turn NPDE-TUR-VIC-2018-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

Show in original language

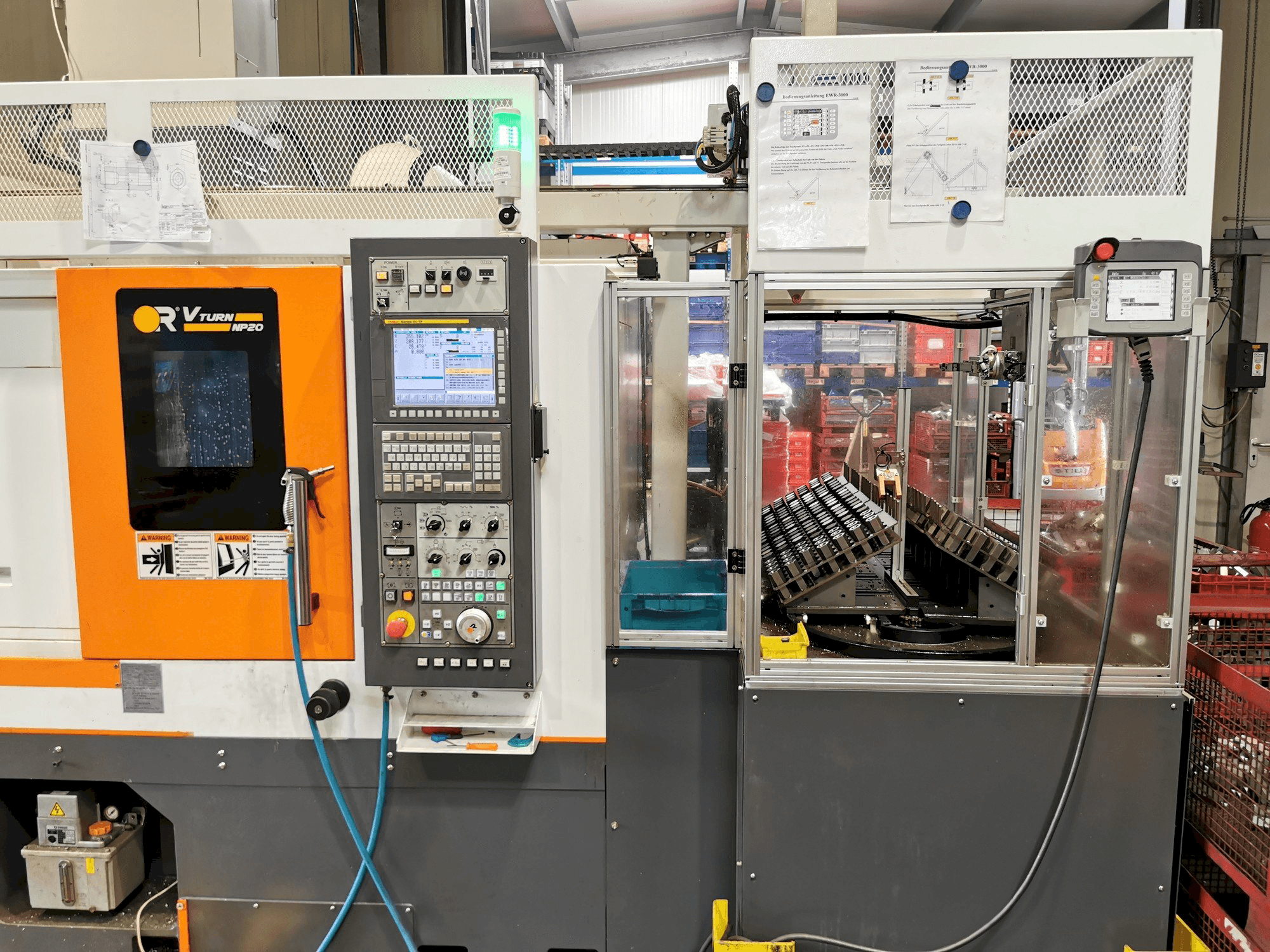

This Victor V Turn NP Lathe was manufactured in 2018 in Taiwan. It has a record of 6138 working hours, of which 2698 are running time and 945 are machining hours. This machine is equipped with a FANUC Series Oi-TF control unit. It can operate with a spindle speed up to 4200 rpm and a turning length 400 mm. This machine includes several options as 1 set of soft jaws and 1 servo turret with driven tools.

Overview

brand: Victor
year: 2018
MODEL: V Turn NP
production hours: 6138
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - Victor V Turn NP

Control Unit

Control Brand: FANUC
Control Model: SERIES 0I-TF

Dimensions

Machine Weight: 4300 kg

Movement

X-axis Travel: 3000 mm
Y-axis Travel: 650 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 4200 RPM

Additional Information

Additional equipment

1 circle interpolation
1 coolant system with pump SPK2-3 AC 0.25 kw
1 hydraulic power chuck 8'' with hollow clamping cylinder and draw tube
1 set of soft jaws
1 servo turret with driven tools
1 chip conveyor with chip carriage (rear chip ejector)
1 complete splash guard with sliding door
1 automatic central lubrication with pump and motor AND 1 workpiece counter
1 machine lamp (built-in) AND 1 PCMCIA interface 1 RJ 45 interface standard
1 set of hand tools and manuals (CD)

Machine Benefits

Technical Machine Benefits

Turning diameter 260 mm and turning length 400 mm
Spindle diameter 52 mm and chuck diameter 200 mm
12 driven bmt 55 tool holders
Feed speed 90/90 m/min
Positioning accuracy +/- 0. 05 mm
Parts x long 120 x 140 mm (flange) 35 x 400 mm (shaft)
Loading magazine 20 -120 mm 30 kg / pallete
Turning station ts-03
For part size 3 kg 20 - 120 mm l-40-100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
