EMAG - VL2 HU-TUR-EMA-2017-00001

Rs. 7,397,517
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

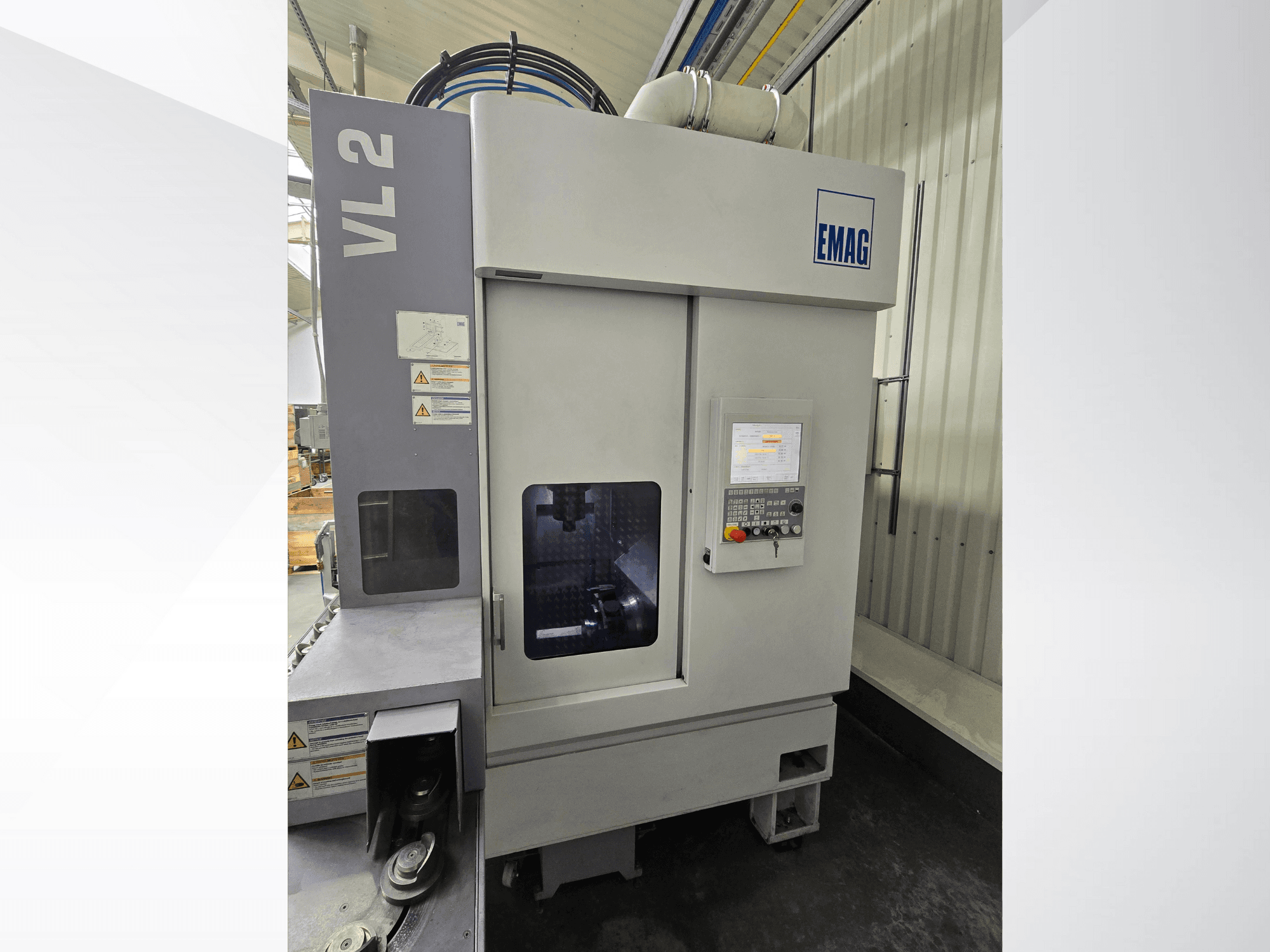

This 3-axis EMAG VL2 vertical turning machine was manufactured in 2017. It features a max workpiece diameter of 100 mm, chuck diameter of 160 mm, and a swing diameter of 210 mm. The main spindle offers a power rating up to 18.1 kW and a max spindle speed of 6,000 rpm. Consider the opportunity to buy this EMAG VL2 vertical turning machine. Contact us for more information.

Overview

  • brand: EMAG
  • year: 2017
  • MODEL: VL2
  • production hours: 10437
  • application type: Turning
  • Location: Hungary
  • machine type: Vertical Turning Machine

Technical Information - EMAG VL2

Movement

  • Number of Axes: 3
  • X-axis Travel: 650 mm
  • Y-axis Travel: 50 mm
  • Z-axis Travel: 375 mm

Technical Specification

  • Spindle Power: 18.1 kW
  • Spindle Speed: 6000 RPM

Additional Information

  • Run time: 10,437 hours

  • Max. workpiece diameter: 100 mm (4")

  • Chuck diameter: 160 mm (6.5")

  • Swing diameter: 210 mm (8")

  • Max. workpiece length: 150 mm (6")

  • Main spindle:

    • Power rating (40% / 100%): 18.1 / 13.9 kW (24 / 19 hp)

    • Torque (40% / 100%): 77 / 59 Nm (57 / 44 ft-lb)

  • Turret:

    • Tool positions: 12

    • Driven tools speed: 6,000 rpm

    • Driven tools torque (30% / 100%): 27 / 15 Nm (20 / 11 ft-lb)

  • Rapid traverse rate:

    • X axis: 60 m/min

    • Y axis: 30 m/min

    • Z axis: 30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
