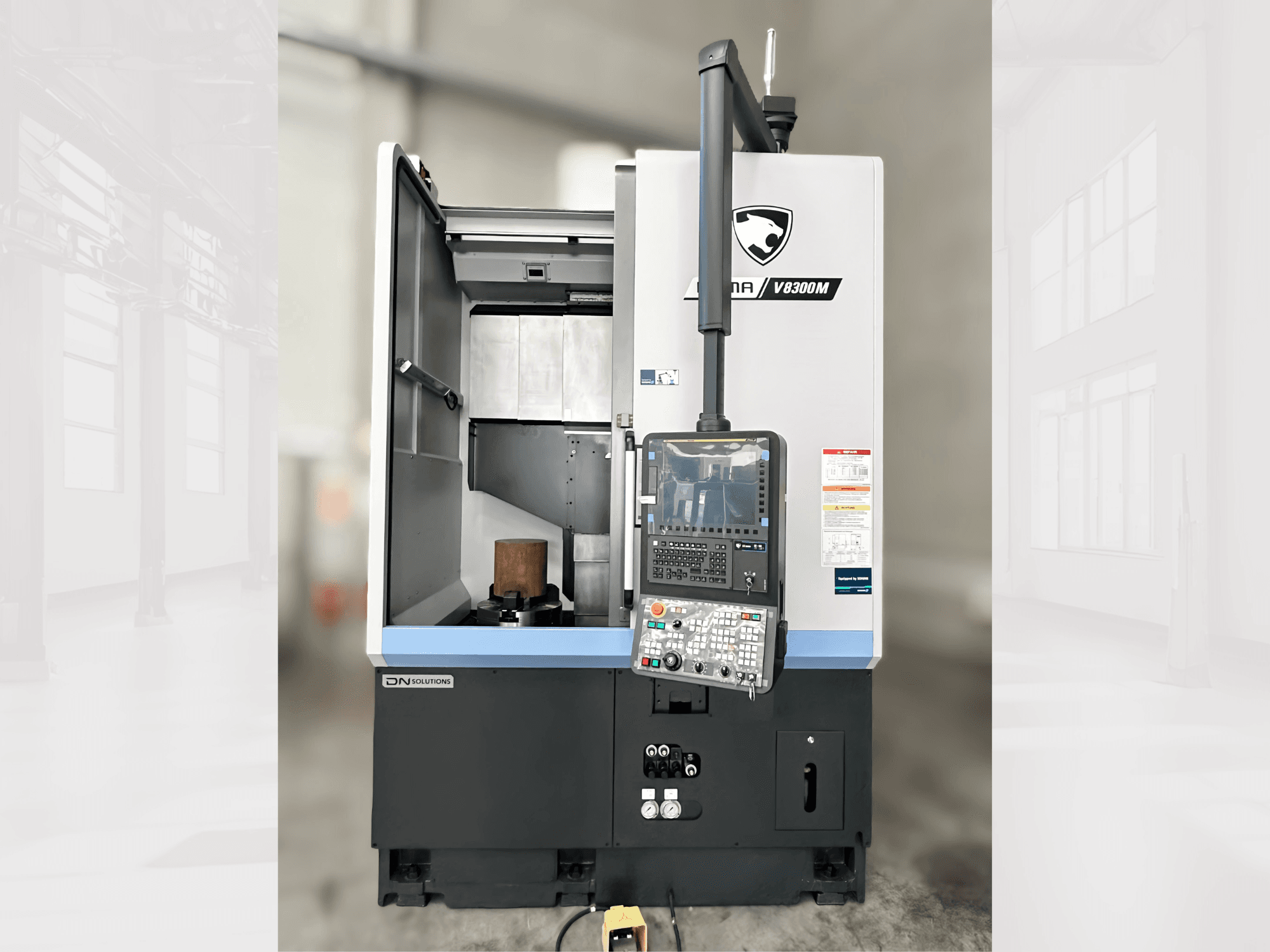

This 3-axis DN SOLUTIONS PUMA V8300MR vertical turning machine was manufactured in 2023. It features a maximum turning diameter of 830 mm and a turning length of 690 mm. The machine is equipped with a powerful spindle offering 2,592 Nm of torque and a rapid traverse of 20 m/min. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA V8300MR machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: PUMA V8300MR
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA V8300MR
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F Plus iHMI-Touch
Dimensions
- Machine Height: 3636 mm
- Machine Length: 2005 mm
- Machine Width: 2860 mm
Movement
- Number of Axes: 3
- X-axis Travel: 495 mm
- Z-axis Travel: 780 mm
Technical Specification
- Driven Tools: No
- Spindle Power: 37 kW
- Spindle Speed: 2000 RPM
Additional Information
Condition: Showroom machine, like new
Chuck size (main spindle): 15" (380 mm)
Bar capacity: 60 mm
Rapid traverse (X/Z): 20 / 20 m/min
Spindle torque: 2,592 Nm
Max turning diameter: 830 mm
Max turning length: 690 mm
Tool stations: 12
Tool holder: BMT 75P
Guideway type: Box guideway
Monitor size: 19"
Main features:
Powerful, very compact vertical turning center
Standing spindle; optimal crane loading and operator accessibility
Extremely rigid cast bed
High torque main spindle
Compact machine design
Optionally driven tools with high torque
High-quality, robust box guideways
Rapid traverse up to 20 m/min
Additional equipment
Chip conveyor
Coolant pump, 10 bar
Oil skimmer
3-color warning light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
