- ➤ Used EMAG VSC 400 Vertical Lathe For Sale | gindumac.com

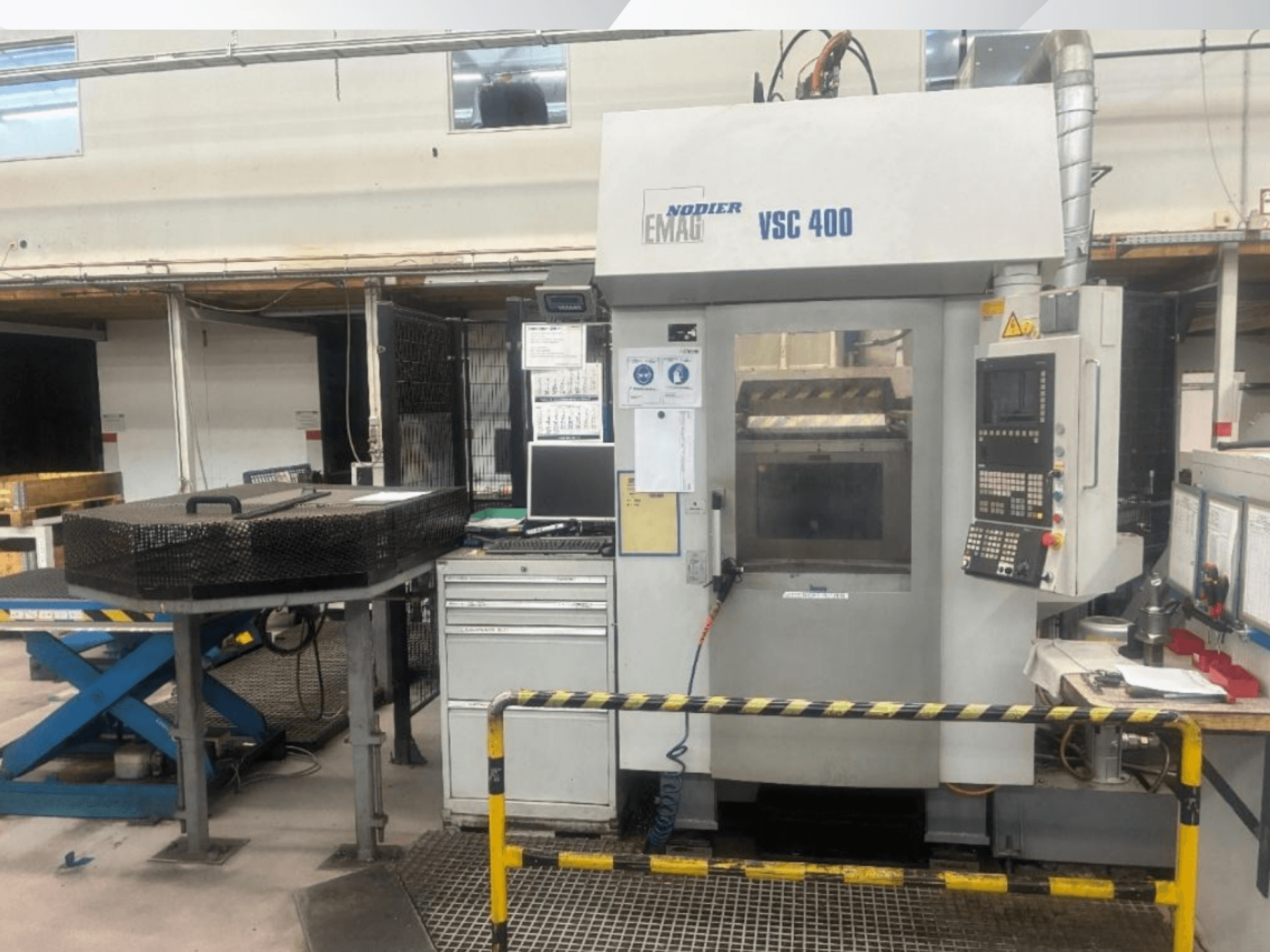

Vertical turning machine manufactured in 2007. This EMAG VSC 400 features a turning diameter of 400 mm and a swing diameter of 420 mm. It offers an X-travel of 850 mm and Z-travel of 315 mm, with a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: EMAG
- year: 2007
- MODEL: VSC 400
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
Technical Information - EMAG VSC 400
Dimensions
- Machine Height: 3000 mm
- Machine Length: 9500 mm
- Machine Weight: 9000 kg
- Machine Width: 4500 mm
Movement
- Number of Axes: 2
- X-axis Travel: 850 mm
- Z-axis Travel: 315 mm
Technical Specification
- Driven Tools: No
- Spindle Power: 58 kW
- Spindle Speed: 4000 RPM
Additional Information
- Turning Diameter: 400 mm
- Swing Diameter: 420 mm
- Spindle Head: DIN 55026 - Size 11
- Spindle Bearing Diameter: 140 mm
- Rapid Traverse X + Z Axes: 45 / 30 m/min
- Feed Force Z/X: 11 kN
- Total Power Requirement: 58 kW
- Installed Power (Nameplate): 54 kW
- Frequency: 50 Hz
- Voltage (Power): 400 V
- Control Voltage: 230 V
- Nominal Current: 104 A
- Cos Phi: 0.83
- Fuse Protection: 125 A
- Features: Hard turning, Dry machining, Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
