Victor V Centre-80 Vertical Machining Center

Show in original language

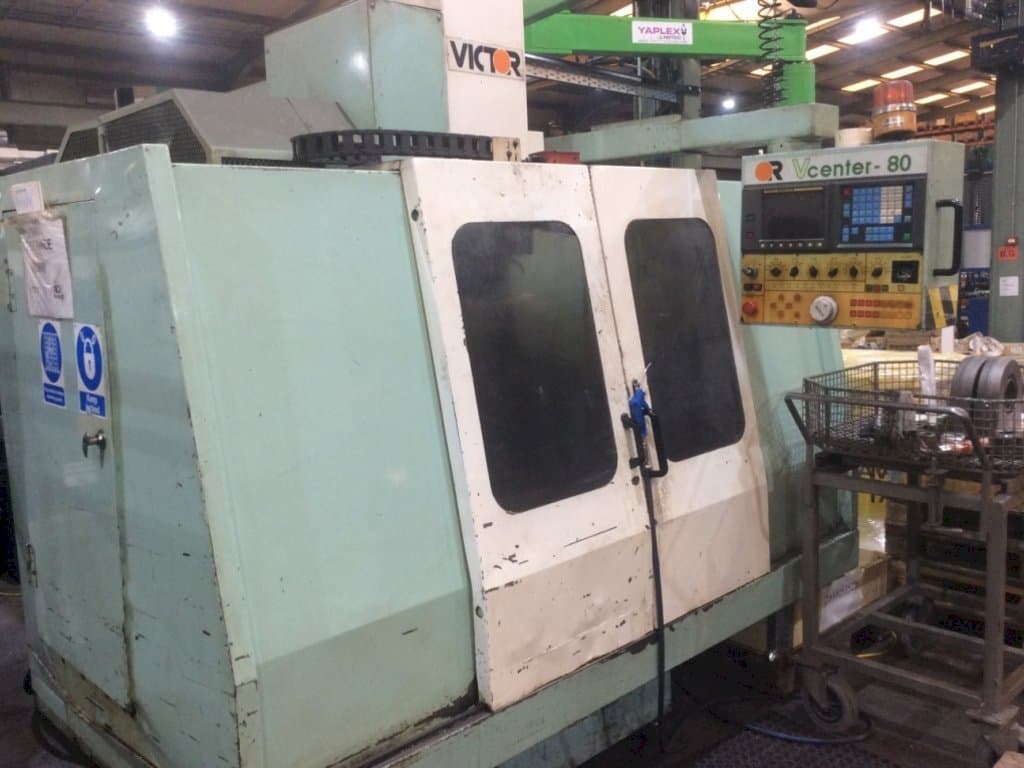

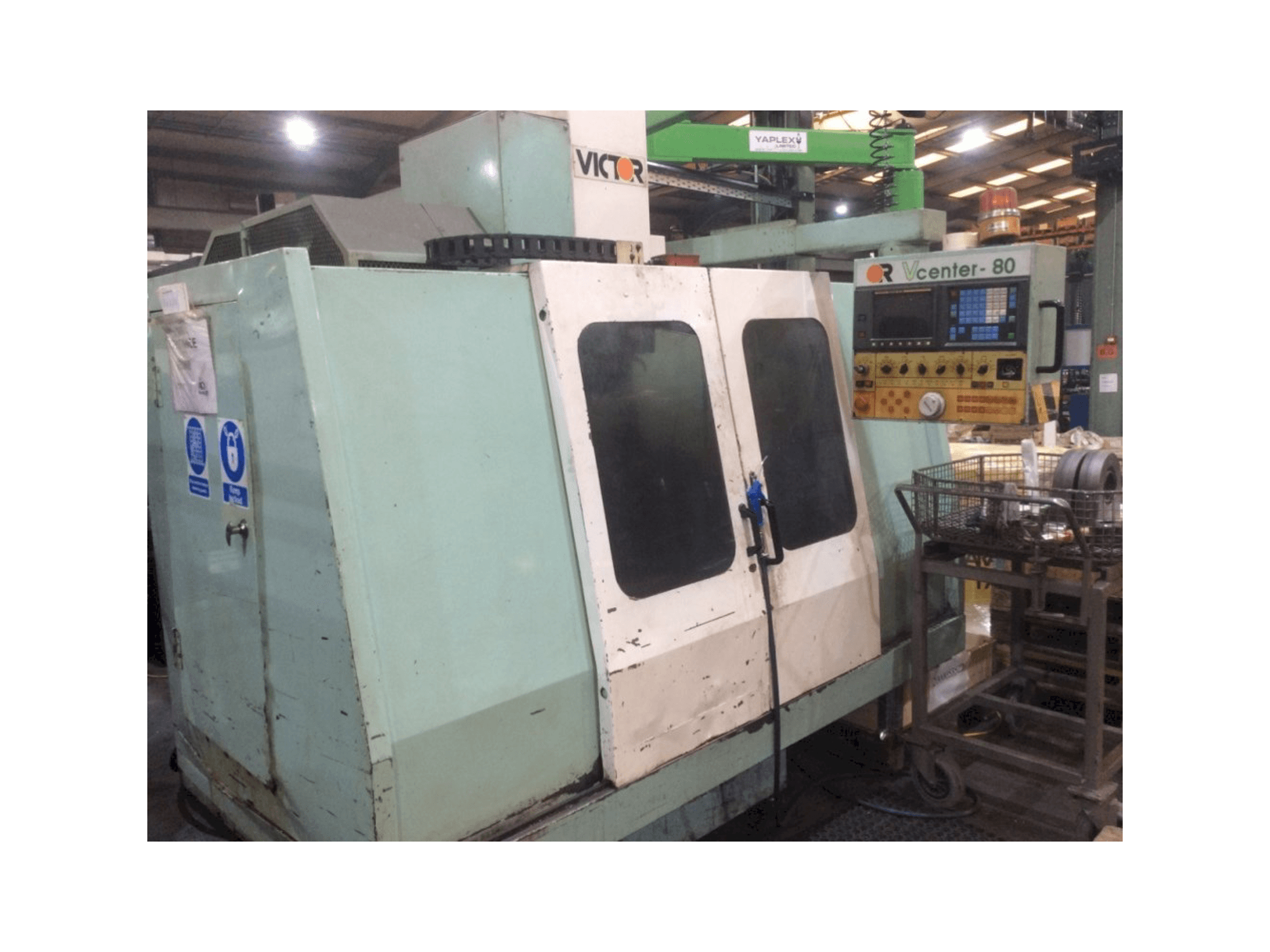

This Victor V Centre-80 Vertical Machining Center was manufactured in Taiwan in 1990. Equipped with a FANUC Series O-M Control unit, this machine operates with a spindle speed up to 6000 rpm.

Overview

brand: Victor
year: 1990
MODEL: V Centre-80
application type: Milling
Location: Ireland
machine type: Machining centers (vertical)
availability: Sold
control unit brand: FANUC
GINDUMAC ID: IE-MIL-VIC-1990-00001

Technical Information

General Data

Measurements width: 2500 mm
Measurements depth: 2825 mm
Measurements height: 2740 mm
Machine weight: 6000 kg

Control Unit

Brand: FANUC
Model: Series O-M
CNC main language: English

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 890 mm
Outer width: 400 mm
Number of tslots: 3

Tools

Slots in storage: 24
Max weight: 6 kg
Max tool diameter: 125 mm
Max tool length: 300 mm
Type of tool holder: BT40

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
