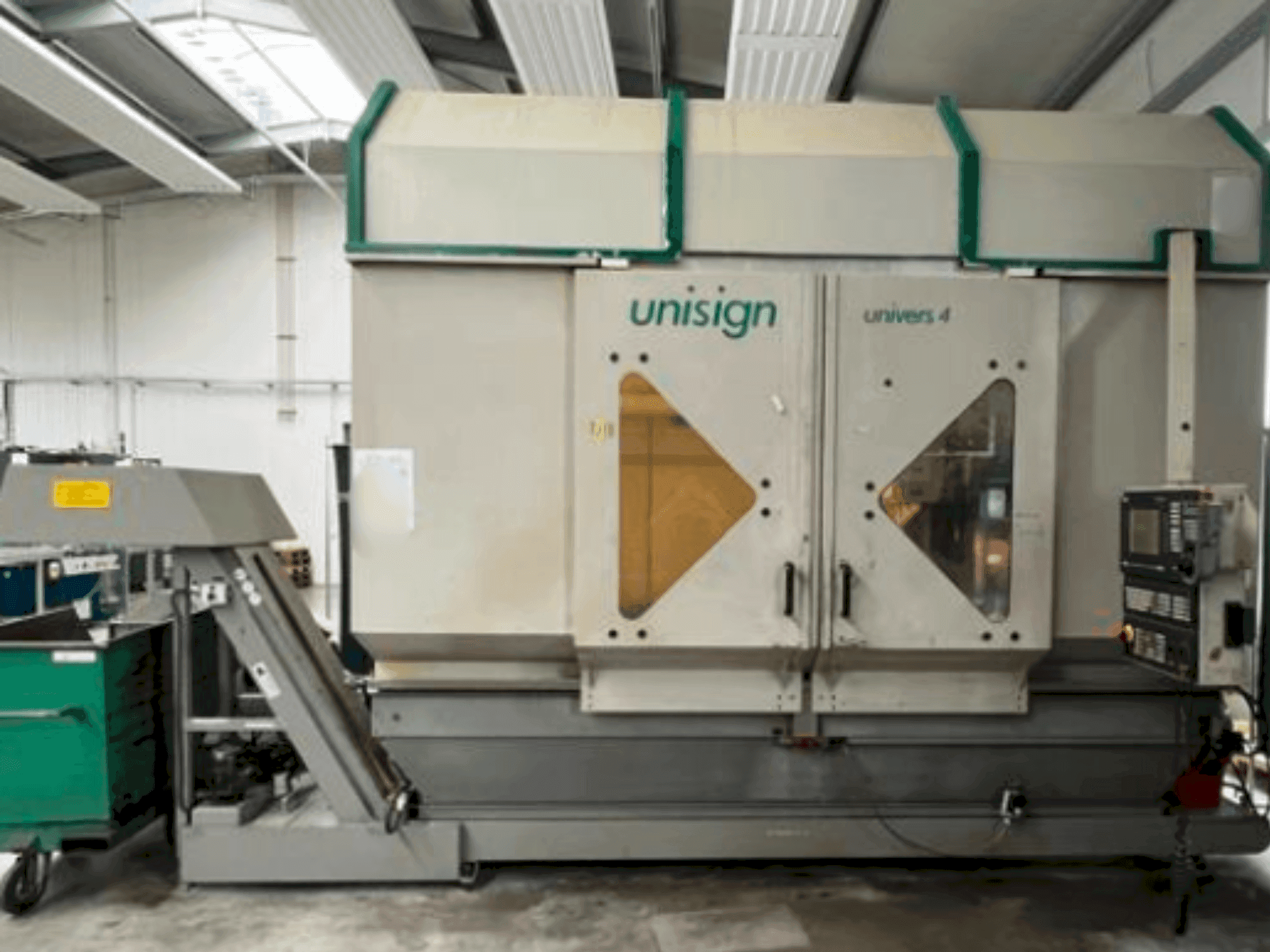

Front view of Unisign Univers 4  machine

Unisign - Univers 4DE-MIL-UNI-2004-00001

Rs. 3,709,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Unisign Univers 4 was manufactured in 2004, featuring X-travel of 1600mm, Y-travel and Z-travel of 400mm each, and a spindle speed up to 9000 rpm. It includes a chain tool magazine with 44 positions and a tool holder type DIN 69871-SK40. The machine weighs 9000 kg and requires a space of 6.5 x 3.5m. If you are looking to get high-quality milling capabilities consider the Unisign Univers 4 machine we have for sale. Contact us for more information.

Overview

  • brand: Unisign
  • year: 2004
  • MODEL: Univers 4
  • production hours: 19357
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - Unisign Univers 4

General Data

  • Measurements width: 3500 MM
  • Measurements depth: 6500 MM
  • Machine weight: 9000 KG

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 810D

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 1600 MM
  • X-AXIS Rapid traverse: 28000 mm/min
  • Y-AXIS Movement: 400 MM
  • Y-AXIS Rapid traverse: 28000 mm/min
  • Z-AXIS Movement: 400 MM
  • Z-AXIS Rapid traverse: 28000 mm/min

Table

  • Table load: 150 kg

Tools

  • Slots in storage: 44
  • Max weight: 5 kg
  • Max tool diameter: 70 mm
  • Max tool length: 240 mm
  • Type of tool holder: DIN 69871-SK40

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Measuring Probe RWP20.00
    • - Enclosed Work Area Enclosure according to UW
    • - Some SK40 Chucks
    • - Hydraulic/Pneumatic Clamping Option in the Machining Area
    • - Römheld 8400-185 Hydraulic Unit, Max. Pressure 500 bar
    • - Flushing Gun in the Machining Area
    • - Replacement Milling Spindle Available

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Total power requirement: 14 kw
        • - A-axis: 360 x 0. 001°, 20 rpm
        • - Table/pallet size (lxw in mm): 1 bridge with 4 sides, l1800mm, 4x113mm
        • - Table/pallet alignment type: m10 & 10h7 grid
        • - Tool magazine type: chain magazine
        • - Coolant type/content: emulsion (internal & external) / approx. 480 l
        • - Coolant unit: clefil rbf-e100 20 bar via m-befeld, max. 75 l/min
        • - Some hydraulic and pneumatic hoses replaced
        • - Lt module replaced in the control cabinet
        • - Regular maintenance was performed

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
