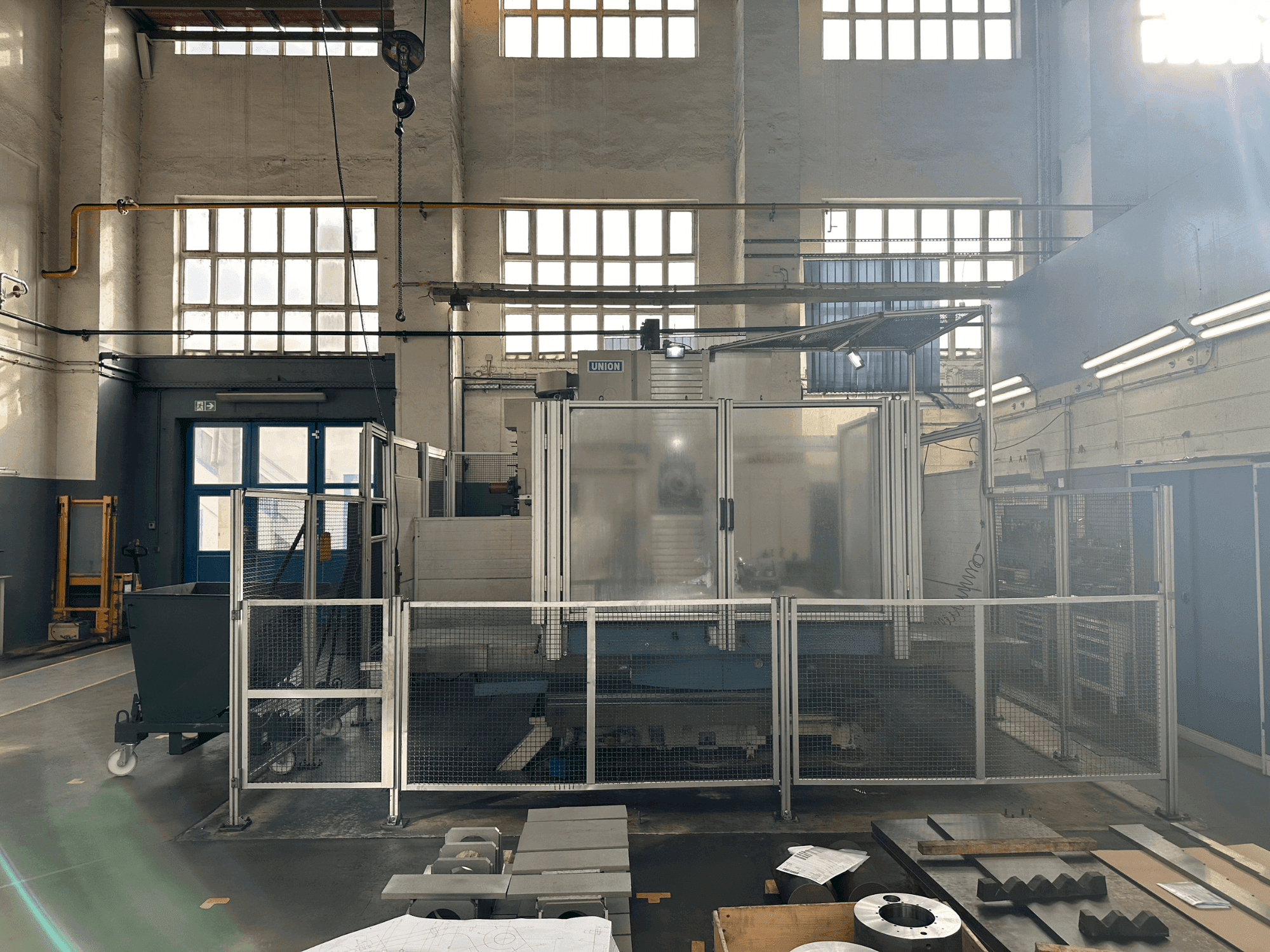

Front view of Union TC 110  machine

Union TC 110

Union - TC 110

2002

Rs. 8,085,450

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis Union TC 110 milling machine, crafted in 2002, is adeptly controlled by a Heidenhain TNC 426 system. It comes with a SIDEPALSA 40-fold tool changer and an SK50 tool holder. The table dimensions are 1250 x 1600mm, and it features movement in X, Y, Z, and W axes measuring 2000mm, 1600mm, 1500mm, and 550mm, respectively. Its spindle supports a diameter of 110mm, enhancing the precision with a nominal torque of 1639 Nm and speeds ranging up to 4000 min^-1. For more information about this Union TC 110 milling machine, reach out to us.

Overview

  • brand: Union
  • year: 2002
  • MODEL: TC 110
  • application type: Boring
  • Location: Germany
  • machine type: Boring Machine
  • availability: FROM MID JUNE
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-BOR-UNI-2002-00001

Technical Information

General Data

  • Measurements width: 5150 mm
  • Measurements depth: 8600 mm
  • Measurements height: 5150 mm

Control Unit

  • Brand: Heidenhain
  • Model: TNC 426

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4000 1/MIN
  • Tool taper: SK50
  • Number of axis: 3

Movement

  • X-AXIS Movement: 2000 mm
  • X-AXIS Rapid traverse: 15m/min
  • Y-AXIS Movement: 1600 mm
  • Y-AXIS Feed Force: 16kN
  • Y-AXIS Rapid traverse: 15m/min
  • Z-AXIS Movement: 1500 mm
  • Z-AXIS Feed Force: 20kN
  • Z-AXIS Rapid traverse: 15m/min
  • W-Axis Movement: 550 mm

Tools

  • Number of index: 40
  • Type of tool holder: SK50

    Additional equipment

    • - Tool changer SIDEPALSA 40-fold
    • - Control on 79431 hrs // Machine on 76080 hrs // Program run 27696 hrs

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Advanced control unit (heidenhain tnc 426) enhances precision in operations.
        • - Spindle diameter: 110mm
        • - Pressure, min. : 6 bar
        • - Outer tube diameter: 8mm
        • - Number of gear stages: 2
        • - Speed range gear stage 1: 5-670min-1
        • - Speed range gear stage 2: 671-4000 min-1
        • - Nominal torque of the spindle: 1639 nm
        • - Max torque of the spindle: 2012nm
      • Qualitative Machine Benefits:
        • - High spindle accuracy with circular deviation and cylindricity values ensuring high-quality finishes.
        • - Strong spindle torque providing robust cutting capabilities.
        • - Table dimensions: 1250 x 1600mm

      Extra information

      • - MACHINE STILL UNDER POWER

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
