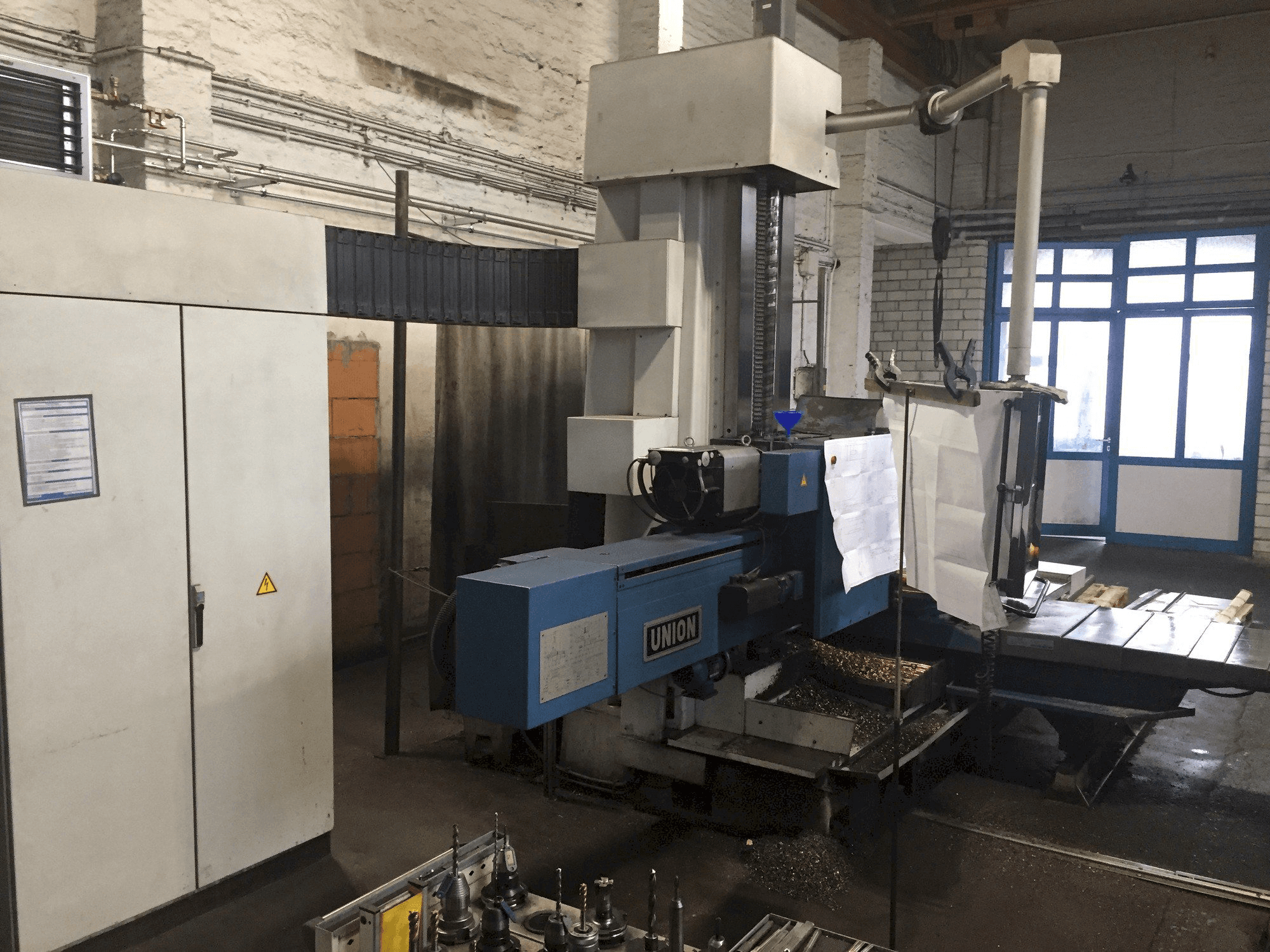

Union BFT 102 boring machine

Show in original language

This Union BFT 102 boring machine was made in the year 1998. It is equipped with a Heidenhain TNC 426 control unit and has 3 axis. The machine has a spindle speed of 4 - 1600 rpm.

Overview

brand: UNION
year: 1998
MODEL: BFT 102
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - UNION BFT 102

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Dimensions

Table Length: 1250 mm
Table Width: 1400 mm

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 1600 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Longitudinal movement (x): 1600 mm
Transverse movement (y): 1250 mm
Table movement (z): 1600 mm
Spindle movement (w): 710 mm
Spindle Ø: 102 mm
Positioning accuracy (xyz): 30μm/1000 mm
Circular form deviation spindles: 0,008 mm
Cylindricity of spindles: 0,012 mm
Circular form deviation circular inside: 0,012 mm
Circular form deviation circular outside: 0,016 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
