➤ Used TRUMPF TRUMATIC TC 600L Y1300 | CO2 Laser Cutter

Show in original language

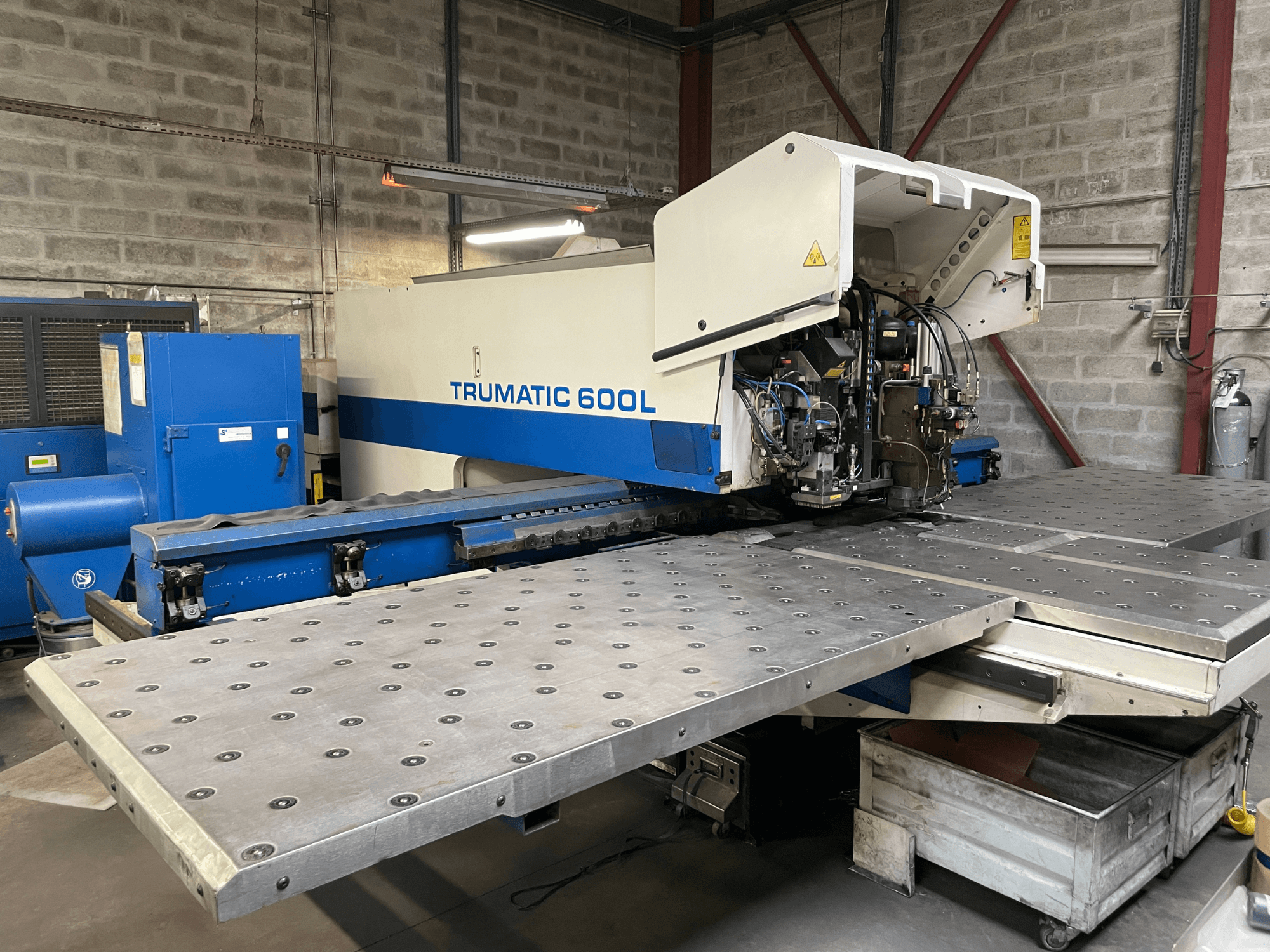

CO2 laser cutting machine manufactured in 2001. This TRUMPF TRUMATIC TC 600L Y1300 features a punching force of 22 T and a maximum thickness of 8 mm. It offers a maximum format of 3085 x 1370 mm in punching operation and a feed rate of 90 m/min on the X axis. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TRUMATIC TC 600L Y1300 machine we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 2001
MODEL: TRUMATIC TC 600L Y1300
application type: Cutting
Location: France
machine type: CO2 Laser Cutting Machine

Technical Information - TRUMPF TRUMATIC TC 600L Y1300

Movement

Number of Axes: 2
X-axis Travel: 3085 mm

Technical Specification

Laser Power: 2.4 kW

Additional Information

Condition: Good overall condition; fully functional; still in production
Maximum format (combined operation): 2585 x 1280 mm
Maximum format (LASER operation): 3085 x 1280 mm
Maximum format (punching operation): 3085 x 1370 mm
Power-on hours: 48,746 h
Laser beam operating hours: 2,159 h
Punching force: 22 T
Maximum thickness: 8 mm
Laser source: TLF 2400W turbo
Feed rate X axis: 90 m/min
Feed rate Y axis: 60 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
