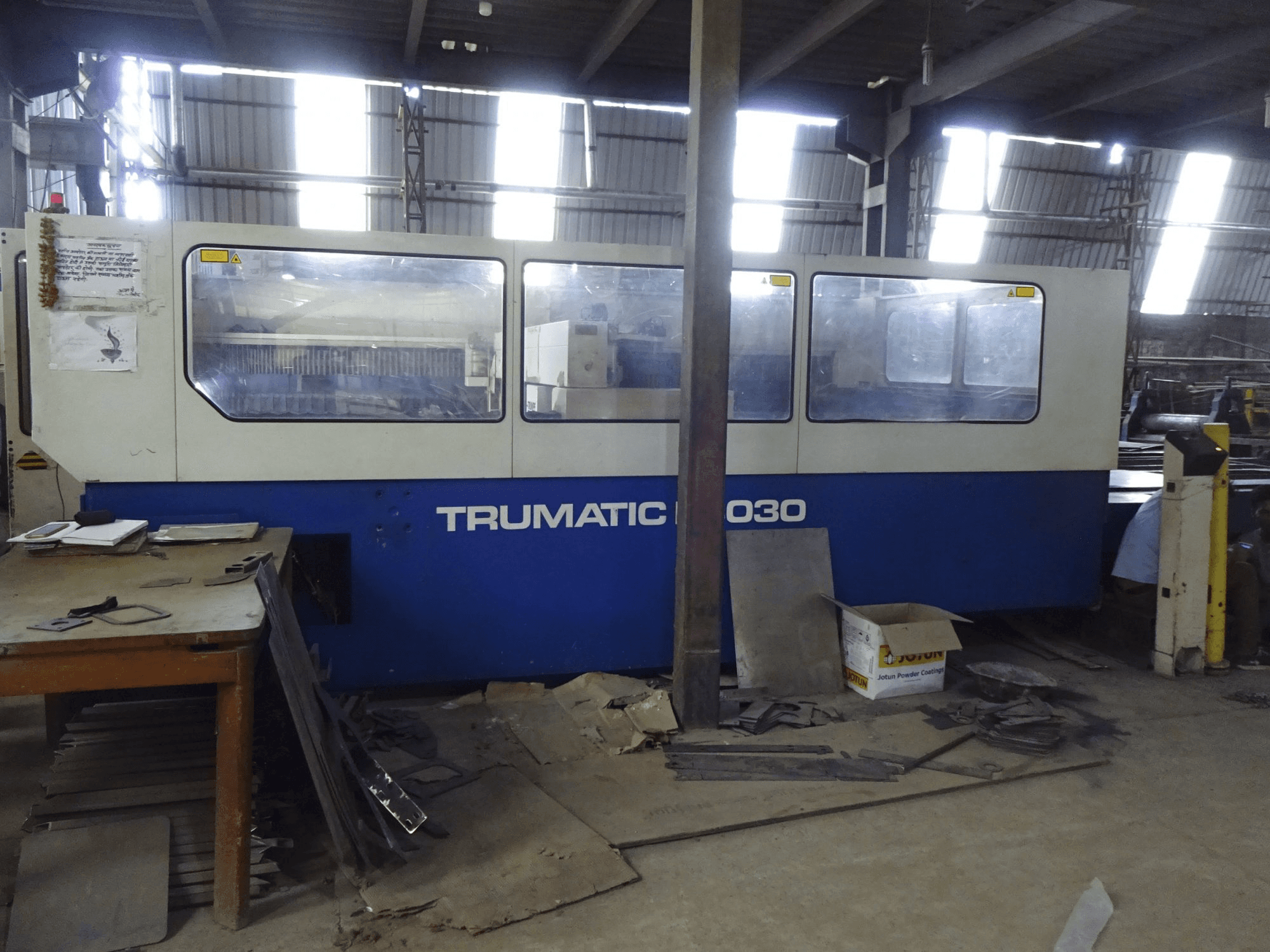

Front view of Trumpf Trumatic L3030 Machine
Front view of Trumpf Trumatic L3030 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic L3030IN-LAS-TRU-1998-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic L3030 Laser Cutting Machine from 1998 was manufactured in Switzerland and has a working history of 54254 production hours, respectively 33600 laser hours of which approximately 20000 are beam hours. Equipped with a BOSCH Control unit and two cutting heads, this 3kW Laser Cutter can process sheets with up to 3000x1500 mm of size. During the past, this setup has mainly worked with 20 mm steel and 12 mm stainless steel sheets.

Overview

  • brand: TRUMPF
  • year: 1998
  • MODEL: Trumatic L3030
  • production hours: 54254
  • application type: Cutting
  • Location: India
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: BOSCH

Technical Information - TRUMPF Trumatic L3030

General Data

  • Measurements width: 9300 mm
  • Measurements depth: 4700 mm
  • Measurements height: 2300 mm

Control Unit

  • Brand: BOSCH

Main drive

  • Laserpower: 3 kW
  • Laser type: CO2
  • Laser brand: BOSCH

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 12 mm
  • Aluminum: 10 mm

Machine specific data

  • Size of cutting head 1: 5"
  • Size of cutting head 2: 7.5"

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 71 kVA
  • Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
