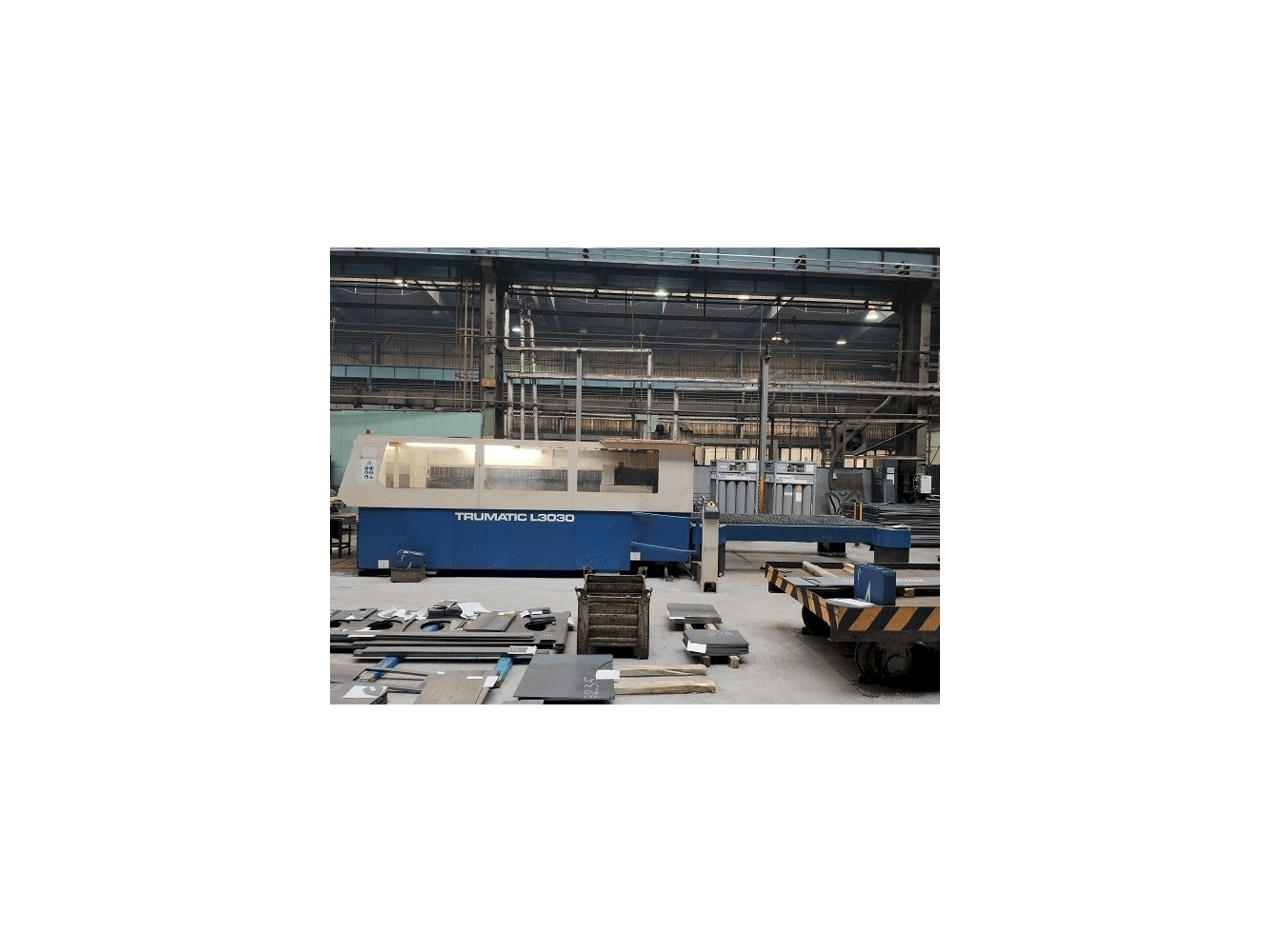

Front view of Trumpf TRUMATIC L 3030 machine
Front view of Trumpf TRUMATIC L 3030 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TRUMATIC L 3030SK-LAS-TRU-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

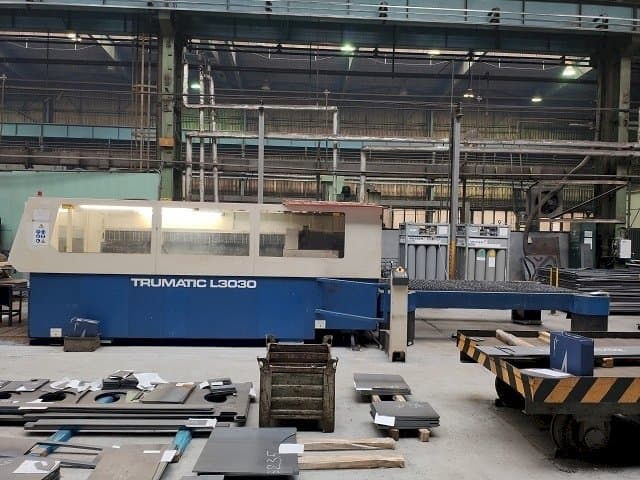

This Trumpf TRUMATIC L 3030 Laser Cutting Machine was manufactured in 2005 in Germany. It has a working record of approximately 42300 (18600 laser beam) hours. This equipment is operated through a SIEMENS SINUMERIK 840D control unit. This machine can operate with a laser power of 2.7 kW and has mainly processed steel up to 15 mm of thickness. The Laser is in good condition, it has been regularly serviced, and is in operation from 2007.

Overview

  • brand: TRUMPF
  • year: 2005
  • MODEL: TRUMATIC L 3030
  • production hours: 42300
  • application type: Cutting
  • Location: Slovakia
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TRUMPF TRUMATIC L 3030

General Data

  • Machine weight: 11500 kg

Control Unit

  • Model: Sinumerik 840D
  • CNC language customizable: Yes
  • Brand: SIEMENS

Main drive

  • Laserpower: 2,7 kW
  • Plasma brand: Trumpf
  • Laser type: TLF 2700

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm
  • Z-AXIS Movement: 100 mm

Max Material thickness

  • Steel: 15 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - X speed max. : 84 m/min y speed max. : 60 m/min
      • - Y speed max. : 60 m/min
    • Qualitative Machine Benefits:
      • - Laser in good condition
      • - Regularly serviced
      • - In operation from 2007

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
