Trumpf TruLaser 3030 Laser cutting machine

Show in original language

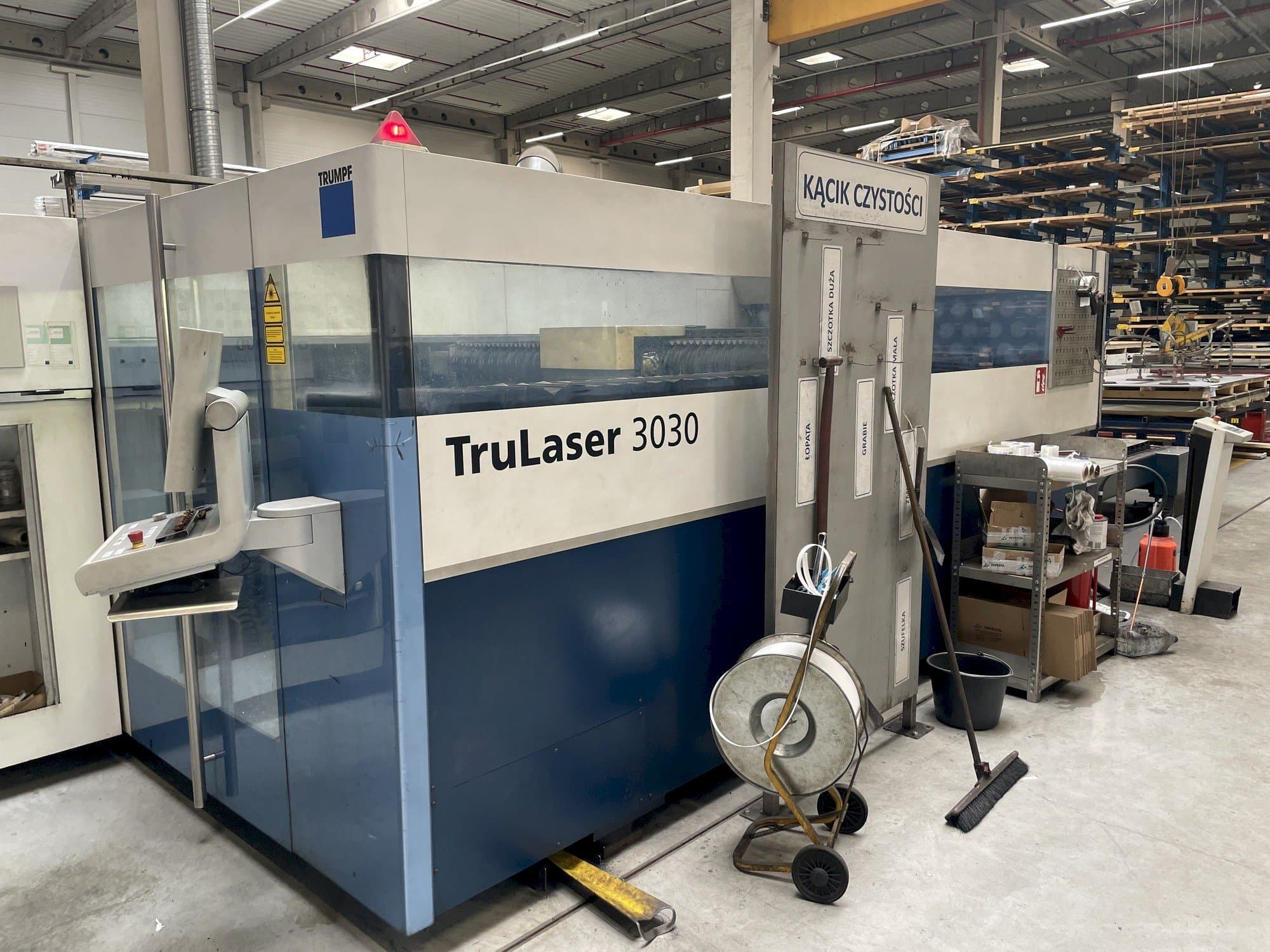

This Trumpf TruLaser 3030 Laser cutting machine was manufactured in the year 2011 and has 64787 production hours, of which 35624 are laser beam hours. It is equipped with a Siemens Sinumerik 840 D control unit. The machine has a laser power of 6,0 kW.

Overview

brand: TRUMPF
year: 2011
MODEL: TruLaser 3030
production hours: 64787
application type: Laser Cutting
Location: Poland
machine type: Laser Cutting Machines (CO2)
availability: Sold
control unit brand: Siemens
GINDUMAC ID: PL-LAS-TRU-2011-00002

Technical Information

General Data

Measurements width: 9300 mm
Measurements depth: 4700 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Brand: Siemens
Model: Sinumerik 840 D

Main drive

Laserpower: 6,0 kW
Laser type: CO2

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Speed:: 140 m/min
- - Positioning accuracy:: 0,05 mm
- - Max. Sheet thickness: 25mm
Qualitative Machine Benefits:
- - Very good technical condition. Serviced by trumpf service. Full documentation available.
- - The laser resonator was maintained recently.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
