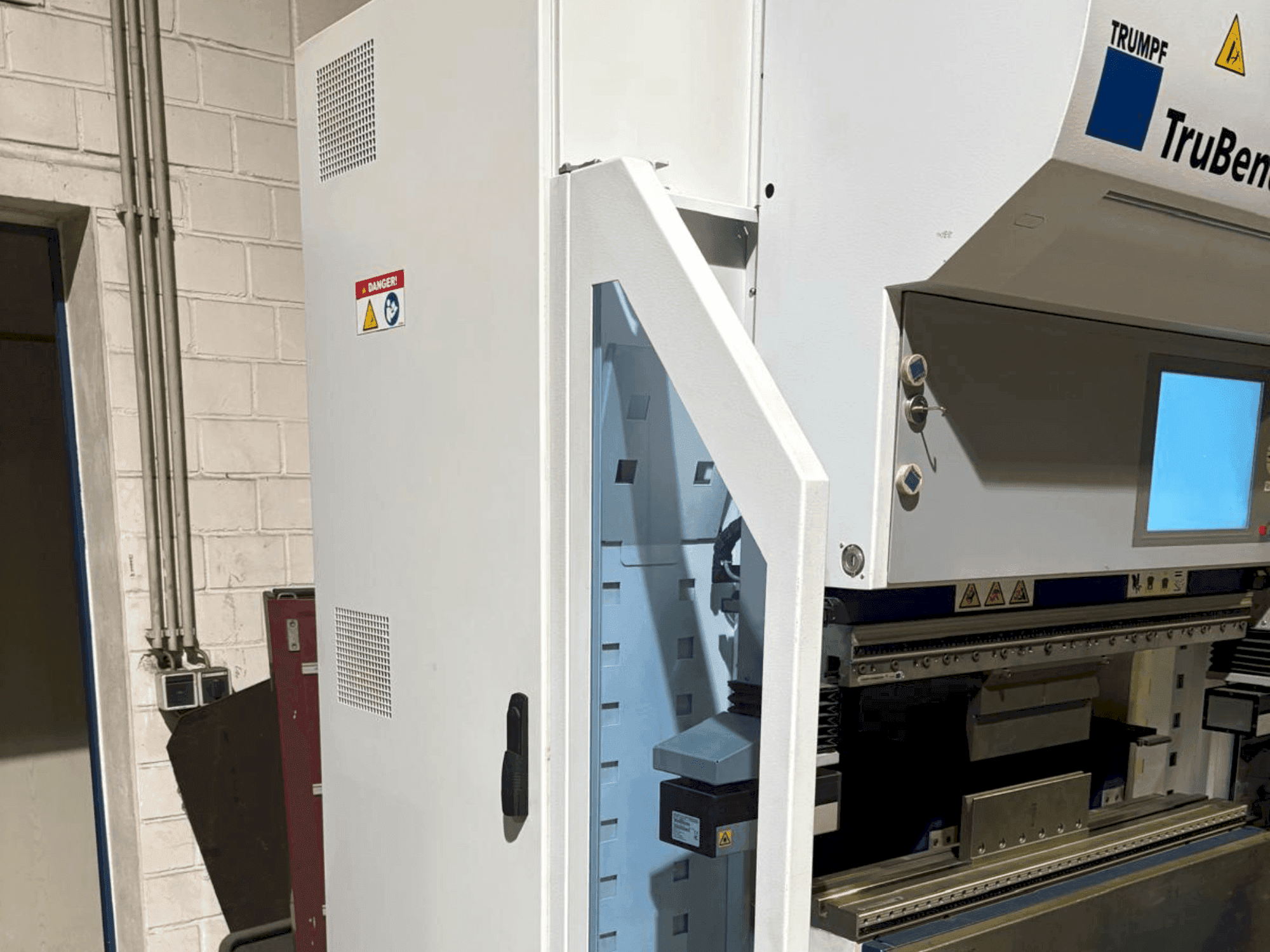

Front view of TRUMPF TruBend 7036 machine
Front view of TRUMPF TruBend 7036 machine

TRUMPF - TruBend 7036DE-BEN-TRU-2018-00001

Rs. 8,438,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TRUMPF TruBend 7036 press brake was manufactured in 2018. It features a press force of 360 kN and a bending length of 1020 mm. The machine includes a Touchpoint TruBend operating interface and offers a maximum stroke of 120 mm. Dimensions are 1900 mm in length, 1340 mm in width, and 2380 mm in height, weighing 2600 kg. If you are looking to get high quality bending capabilities consider the TRUMPF TruBend 7036 machine we have for sale.Contact us for more information.

Overview

  • brand: TRUMPF
  • year: 2018
  • MODEL: TruBend 7036
  • application type: Bending
  • Location: Germany
  • machine type: Press Brake

Technical Information - TRUMPF TruBend 7036

General Data

  • Measurements width: 1340 mm
  • Measurements depth: 1900 mm
  • Measurements height: 2380 mm
  • Machine weight: 3300 kg

Main drive

  • Pressing force: 360 kN
  • Bending length: 1020 mm
  • Stroke: 120 mm

Movement

  • Y-AXIS Rapid traverse: 25 mm/s

Additional Information

  • Distance between side frames / free stand clearance: 932 mm

  • Usable installation height: 295 mm

  • Projection / throat depth: 150 mm

  • Operating surface / user interface: Touchpoint TruBend

  • Follow-up time (max): 90 ms

  • Follow-up distance (max): 15 mm

  • Follow-up distance with brake (max): 8 mm

  • Safety distance (min): 180 mm

  • Mains: 400 V / 50 Hz

  • Connected load: 6.0 kVA

  • Control voltage: 24 V DC

  • Rated current: 24.0 A

Additional equipment

  • Optional tools available (on request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
