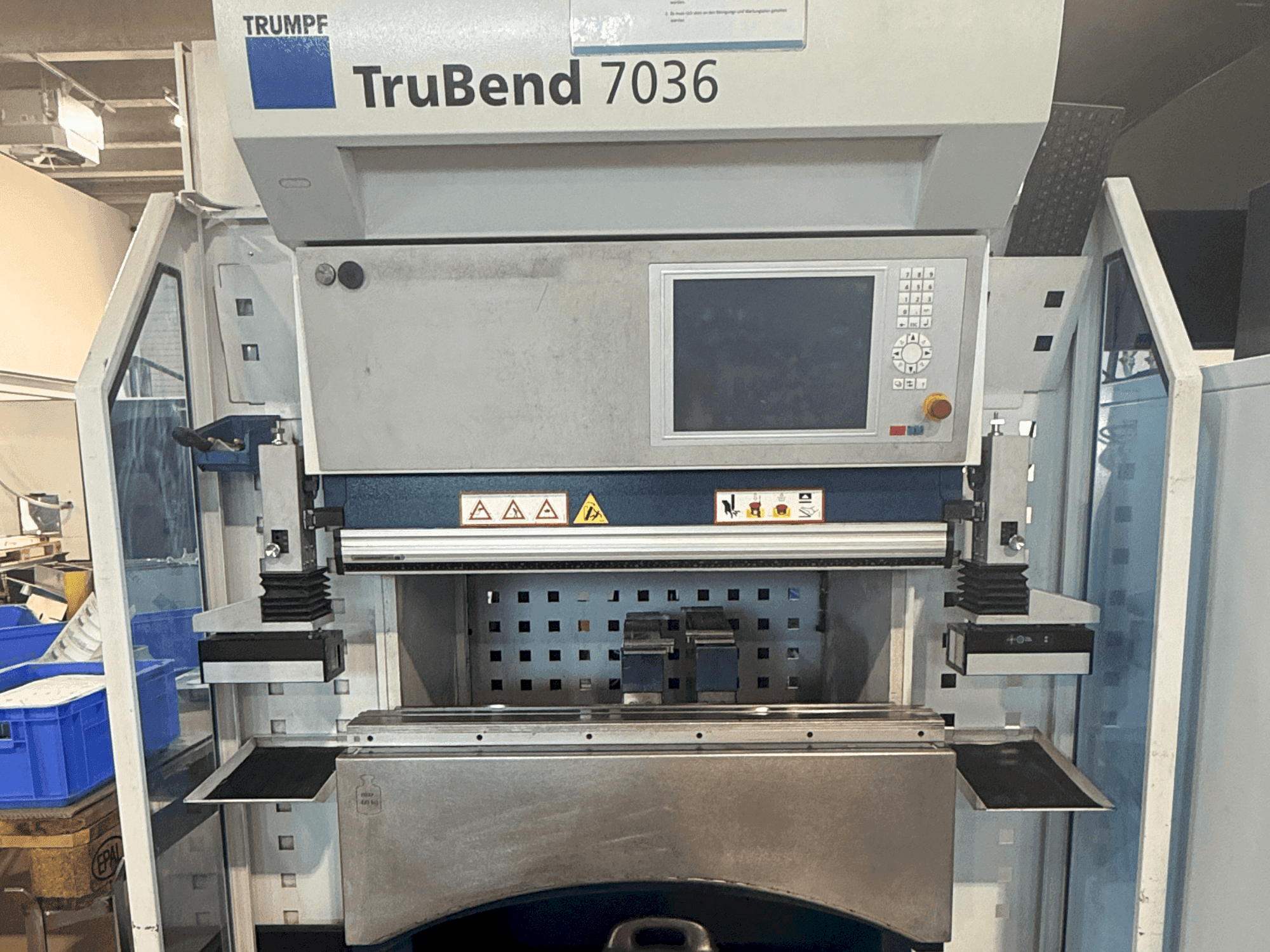

TRUMPF - TruBend 7036DE-BEN-TRU-2014-00003

Additional equipment

• Backgauge system with 5 axes and control cabinet climate control

• Upper tool clamping: hydraulic and hardened

• Lower tool clamping: hydraulic

• CNC Crowning

• BendGuard safety device

• Foot switch

• 2x support consoles, front

• 1x bending aid with 900 mm parking position

• Table extension for base table / additional table

Machine Benefits

Technical Machine Benefits

• Free column clearance: 3680 mm

• Installation height: 535 mm

• Control system: 2d graphic control da 69 on windows with 10. 4" color screen

• Electrical equipment: for three-phase current 400 v / 50 hz

• The machine was serviced annually

• Maintenance contract in place

Extra Information

• Sturdy machine frame, welded all-steel construction

• Press beam with high bending strength

• Highly dynamic electromechanical direct drive (torque motor)

• Electro-hydraulic top drive via proportional valves

• Modern block hydraulics

• Inductive length measuring system with temperature compensation

• CNC backgauge system: 3-axis (X1, R1, Z1) and 6-axis options

• Rack and pinion drive for X and R axes

• Safe, front-accessible movement of stop fingers

• Modufix top tool holder system, self-centering, manual clamping

• Manual lower tool holder for EV dies, hardened, programmable offset

• Integrated TRUMPF TASC 6000 control

• Numerical workshop programming

• Embedded Windows XPe operating system, Pentium M 1.1 GHz

• 1 GB RAM

• 15-inch touchscreen

• Network-enabled, teleservice via modem

• Control cabinet climate control

• Side-hinged safety doors and rear protective cover

• 2-button foot switch for standing or seated operation

• Rear work area LED lighting

• Front work area LED lighting

• Ergonomics package: comfortable front work surface and footrest

• 2 storage brackets and 2 document trays
