TRUMPF TruBend 5170

Photo Gallery

TRUMPF - TruBend 5170DE-BEN-TRU-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruBend 5170 - Press For Sale | gindumac.com

Show in original language

This 5-axis TRUMPF TruBend 5170 was manufactured in 2016. It features a maximum press force of 1700 kN and a stroke length of 445 mm, making it suitable for various bending applications. The machine has a weight of 12,200 kg and operates at a maximum pressure of 300 bar. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 5170 press brake we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 2016
MODEL: TruBend 5170
production hours: 4868
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TruBend 5170

Dimensions

Machine Weight: 12200 kg

Movement

Number of Axes: 5

Technical Specification

Bending Length: 3230 mm
Max. Stroke: 445 mm
Pressing Force: 1700 Kn

Additional Information

Operating pressure: max. 300 bar
Overrun time: max. 95 ms
Overrun distance: max. 10.0 mm
Safety distance: min. 190.0 mm
Rated current: 40.0 A
Voltage: 3x400 V
Frequency: 50 Hz
Connected load: 28.0 kVA
Control voltage: 24 V
Compressed air connection: 6.0 bar
Machine on time: 13,000 h
Hydraulic runtime: 5,000 h
Press beam cycles: 41,000 h
Crowning cycles: 15,000 h

Additional equipment

Optional: Many tools available

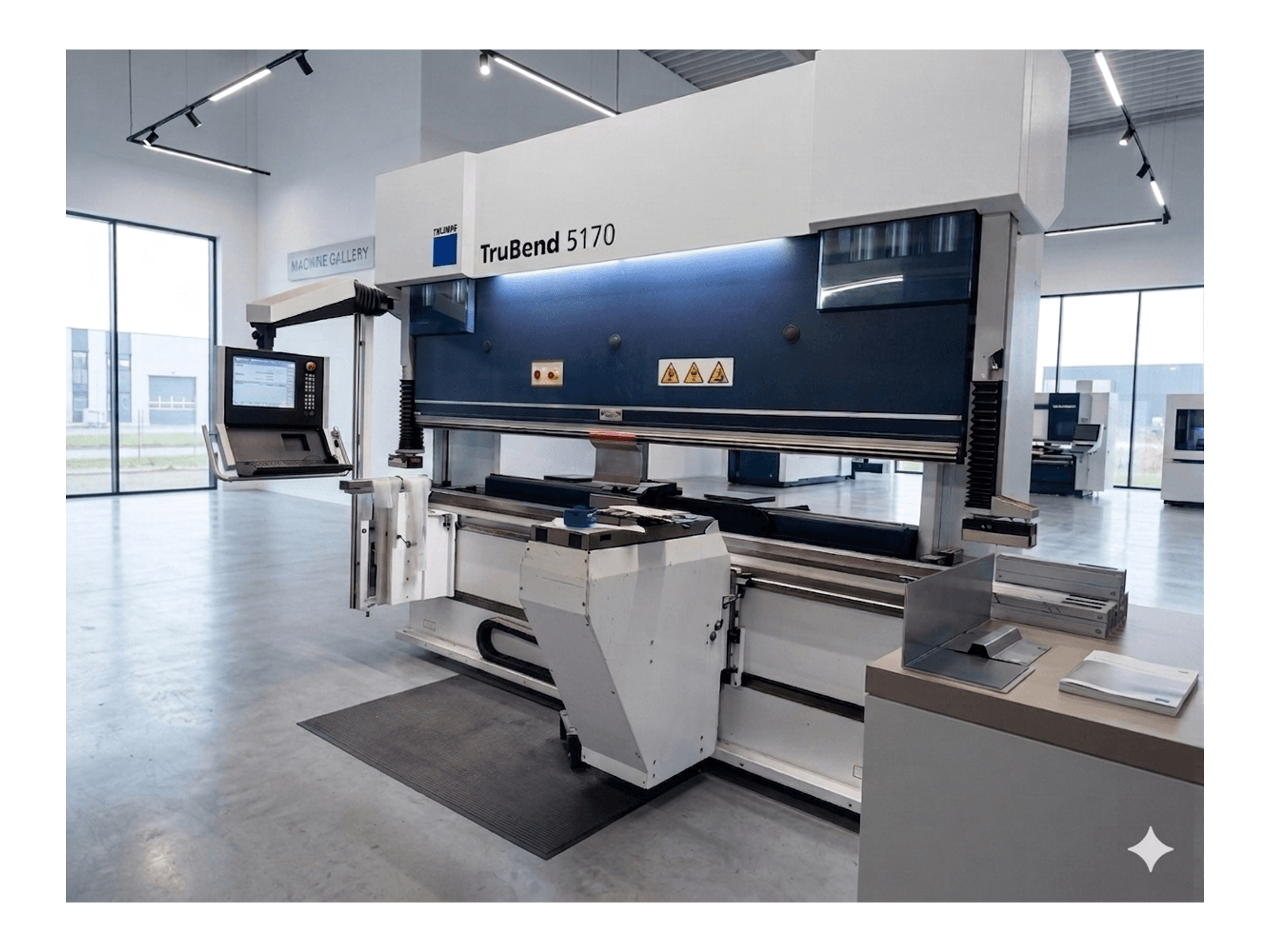

The picture is AI generated. Real pictures on demand

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
