TRUMPF TC L 3050

Photo Gallery

TRUMPF - TC L 3050AT-LAS-TRU-2005-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

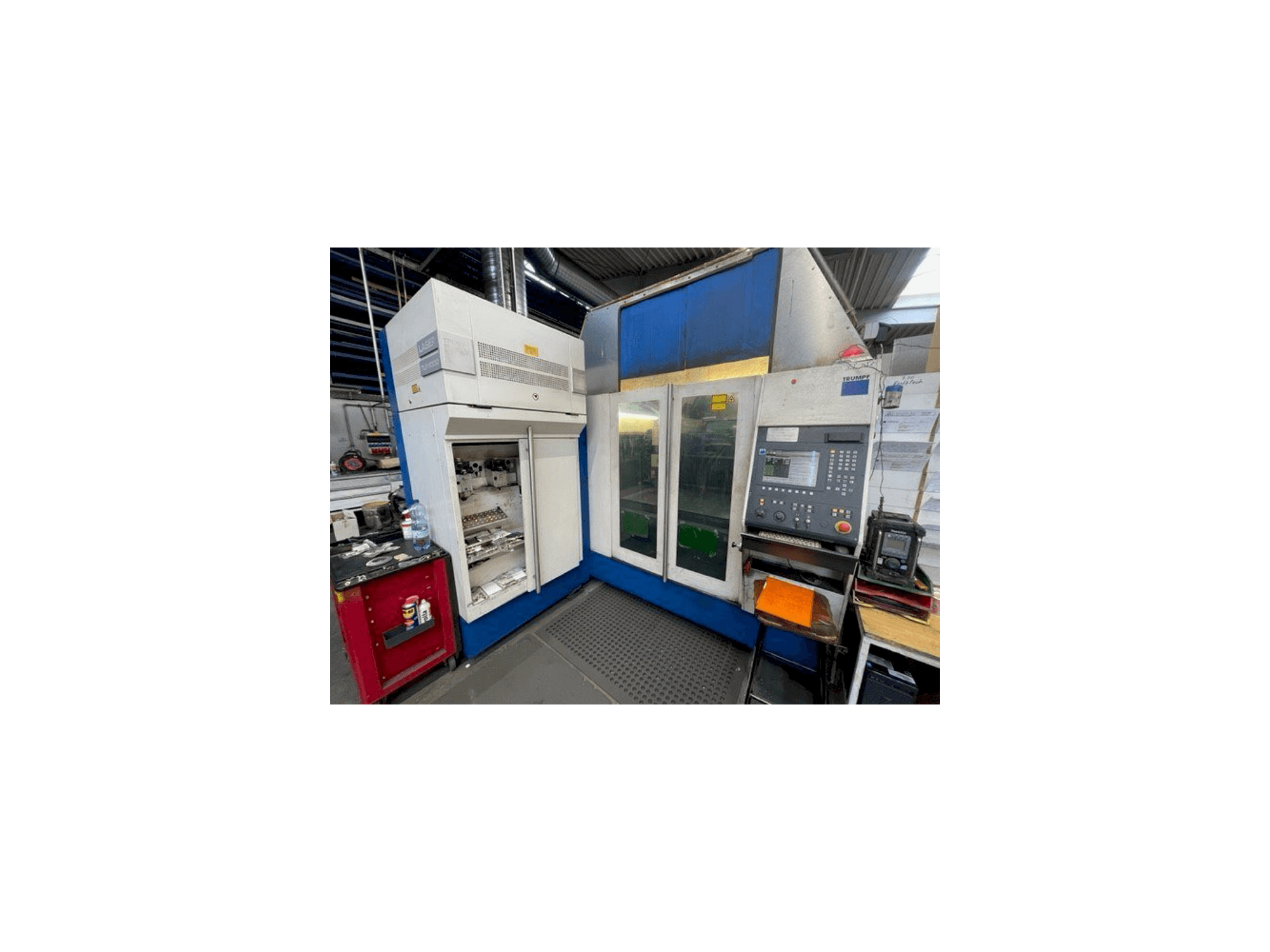

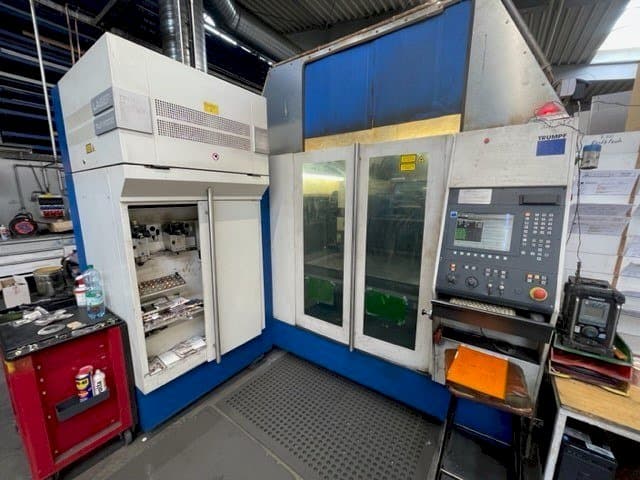

Trumpf TC L 3050 Laser cutting machine

Show in original language

This Trumpf TC L 3050 Laser cutting machine was manufactured in the year 2005 and has 61105 hours, of which 34502 are beam on hours. It is equipped with a Sinumerik 840D control unit. The machine has a laser power of 5,0 kW and includes a LIFTMASTER base for automatic loading.

Overview

brand: TRUMPF
year: 2005
MODEL: TC L 3050
production hours: 61105
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF TC L 3050

Control Unit

Model: 840D

Main drive

Laserpower: 5 kW
Laser type: TLF 5000 turbo

Table

Outer length: 1500 mm
Outer width: 3000 mm

Additional equipment

- LIFTMASTER incl. base for automatic loading
- HI-LAS high pressure cutting
- laser cutting head 5", and 7,5" lens
- cutting head quick change device
- autom. sheet edge detection
- APC height control and process control
- PCS Control System Microweld
- PMS plasma sensor system
- SPRINTLAS, Contourlas, AutoLas Plus, spray device
- Conveyor for small parts/waste

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control: sinumerik 840d (renewed in 2015)
- - Automatic pallet changer
- - Automatic switch-off
Qualitative Machine Benefits:
- - Good condition for age, commissioning 03/2005

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
