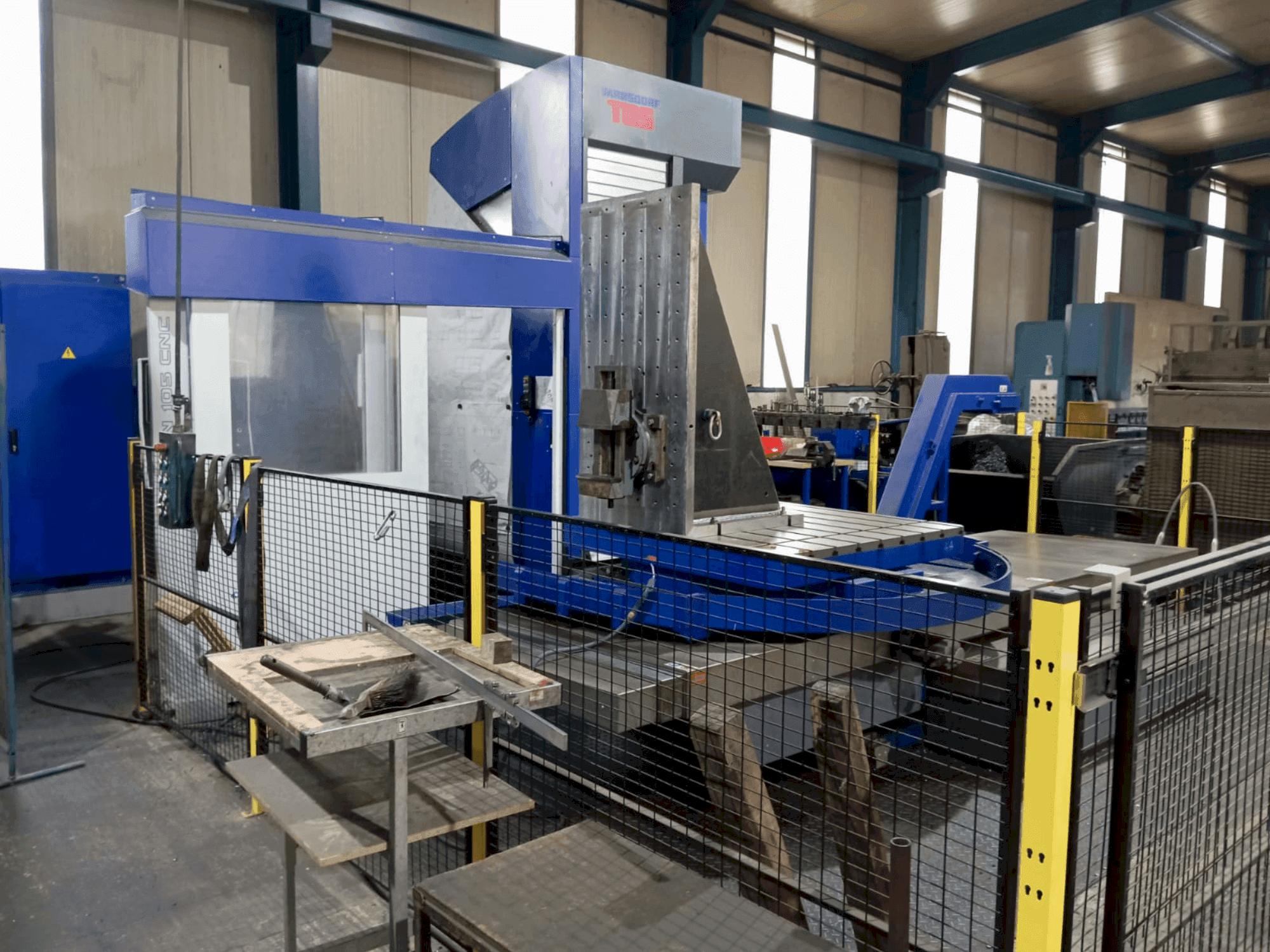

Front view of TOS Vansdorf WHQ 105  machine

TOS - Vansdorf WHQ 105DE-OTH-TOS-2020-00001

Rs. 35,422,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis TOS Vansdorf WHQ 105 boring machine was manufactured in 2020. It features a Heidenhain TNC 640 control system, a universal milling head, and a mechanical spindle drive. The machine design includes dimensions X = 1,800 mm, Y = 1,250 mm, Z = 1,250 mm, and W = 630 mm. The table clamping area is 1,400 x 1,400 mm with a maximum load capacity of 5,000 kg. If you are looking to get high-quality boring capabilities, consider the TOS Vansdorf WHQ 105 machine we have for sale. Contact us for more information.

Overview

  • brand: TOS
  • year: 2020
  • MODEL: Vansdorf WHQ 105
  • application type: Other Machine Tools
  • Location: Germany
  • machine type: Boring Machine (Metal)
  • control unit brand: HEIDENHAIN

Technical Information - TOS Vansdorf WHQ 105

General Data

  • Measurements width: 1250 mm
  • Measurements depth: 1800 mm
  • Measurements height: 1250 mm

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 640

Main drive

  • Spindle speed range: 3000 rpm 1/MIN
  • Spindle motor power: 20 kW
  • Tool taper: ISO 50
  • Number of axis: 3

Table

  • Table load: 5000 kg

    Additional equipment

    • - Schimpke oil cooler DK 28-V
    • - CHOV 20 bar belt filter system with two cooling circuits
    • - Internal cooling through the work spindle at approx. 20 bar
    • - External cooling at 3 bar
    • - 900 l coolant tank with mounted RAPID 3 oil skimmer
    • - Universal milling head - manually attachable

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table clamping area: 1400 x 1400 mm
        • - Max. Permissible spindle torque: 1000 nm
        • - Control system on: 4549 hours
        • - Machine on: 1793 hours
        • - Program run: 618 hours
        • - Hydraulics: 6 hours
        • - Work spindle face diameter: 128. 57 h5 mm
        • - Mechanical spindle drive ratio: 1:1
        • - Rotation range of the head sections - degrees: 2x ±180

      Extra information

      • - Standard chip conveyor: X = 1800 mm Incline angle: 60° Belt speed: 4.35 m/min Conveyor belt width: 175 mm Total conveyor belt width: 291 mm Link spacing: 63 mm Motor power: 0.55 kW 3D probe with wireless transmission, type RWP 38.41 Brand M & H for Heidenhain control Steep taper DIN 69871 SK 50 with cable for TNC 640 HSCI control, including 15 m Bidi cable

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
