TORNOS MultiSwiss 8x26

Photo Gallery

TORNOS - MultiSwiss 8x26DE-TUR-TOR-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TORNOS MultiSwiss 8x26 Lathe

Show in original language

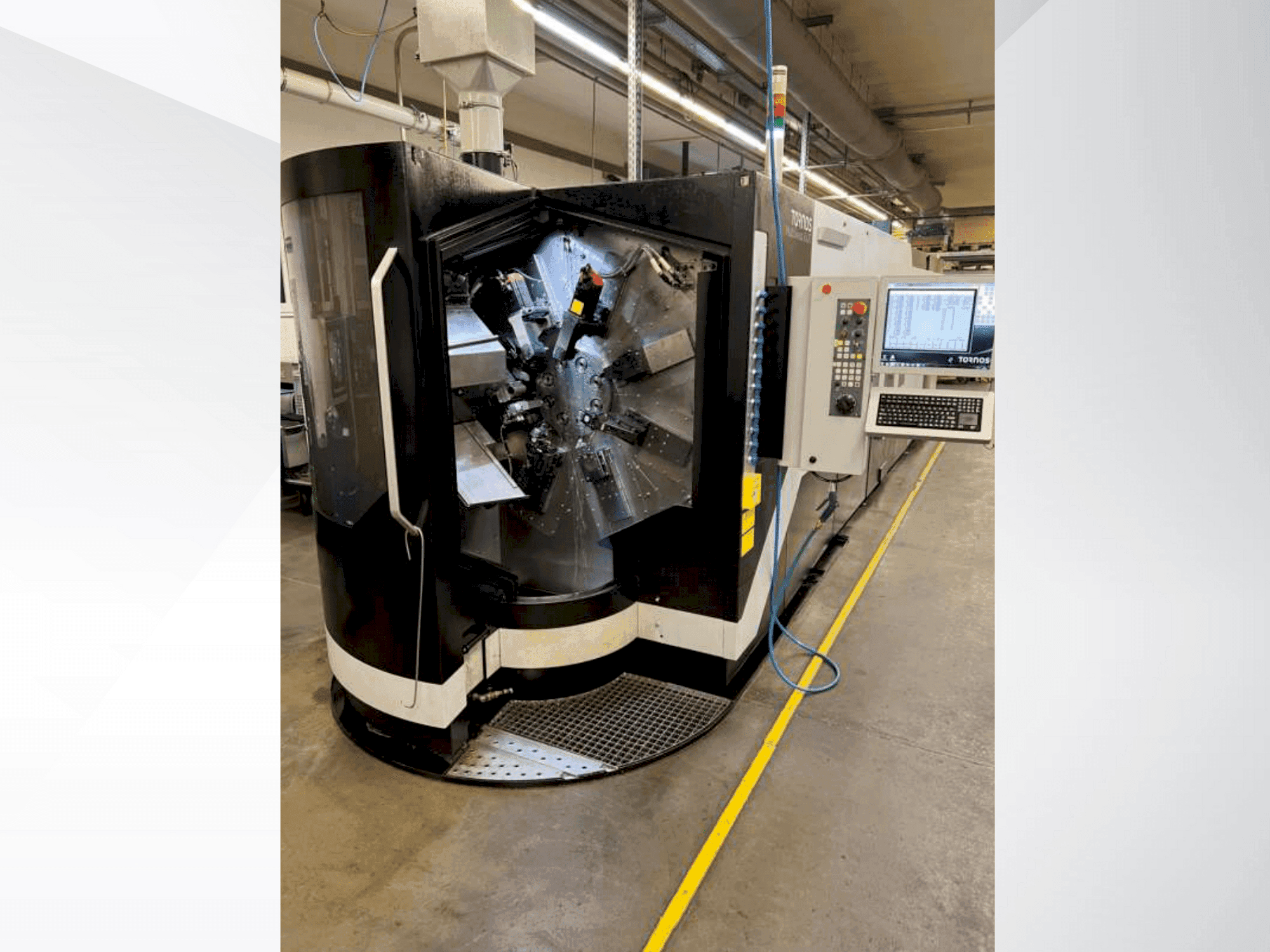

This TORNOS MultiSwiss 8x26 Lathe was manufactured in the year 2018. It is equipped with a Kraft & Bauer fire extinguishing system and a hinged belt conveyor. It is included all existing machining units and accessories. The machine is under power and immediately available.

Overview

brand: TORNOS
year: 2018
MODEL: MultiSwiss 8x26
production hours: 8070
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine

Technical Information - TORNOS MultiSwiss 8x26

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Including all existing machining units and accessories
Cut-off tool holder GWS ISCAR
oil drip tray with grid / loader collet / 1 counter spindle collet chuck diameter 3-26mm
turning tool holder 16 x 16
holder for 2 front units diameter 16mm
stationary drilling unit
ARTIS tool monitoring system

Machine Benefits

Qualitative Machine Benefits

Machine under power and immediately available
Oil collecting basin
Clamping tubes 20mm diameter // reduction tubes 20mm diameter
Bracket for 2 front units 25mm diameter // support for 2 front units 25mm diameter

Technical Machine Benefits

Oil cooling // all axes fully cnc
9 spindles (8 main and 1 counter)
4 x back machining
Hinged belt conveyor for finished parts
2x 80 bar high pressure pumps
Kraft & bauer fire extinguishing system
Bar loader // paper belt filter
Z axis: 75mm stroke 150mm x 170mm // stroke 8 slides x 80mm // stroke fanuc 30i // z 150mm x 170mm stroke
Holder for 2 quick-change systems vdi-25 // slide max. 135mm // part length max. 65mm
Collets diameter 6-26mm // counter-spindle collet 3-26mm diameter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
