➤ Used Star RNC16B-1 For Sale | gindumac.com

Show in original language

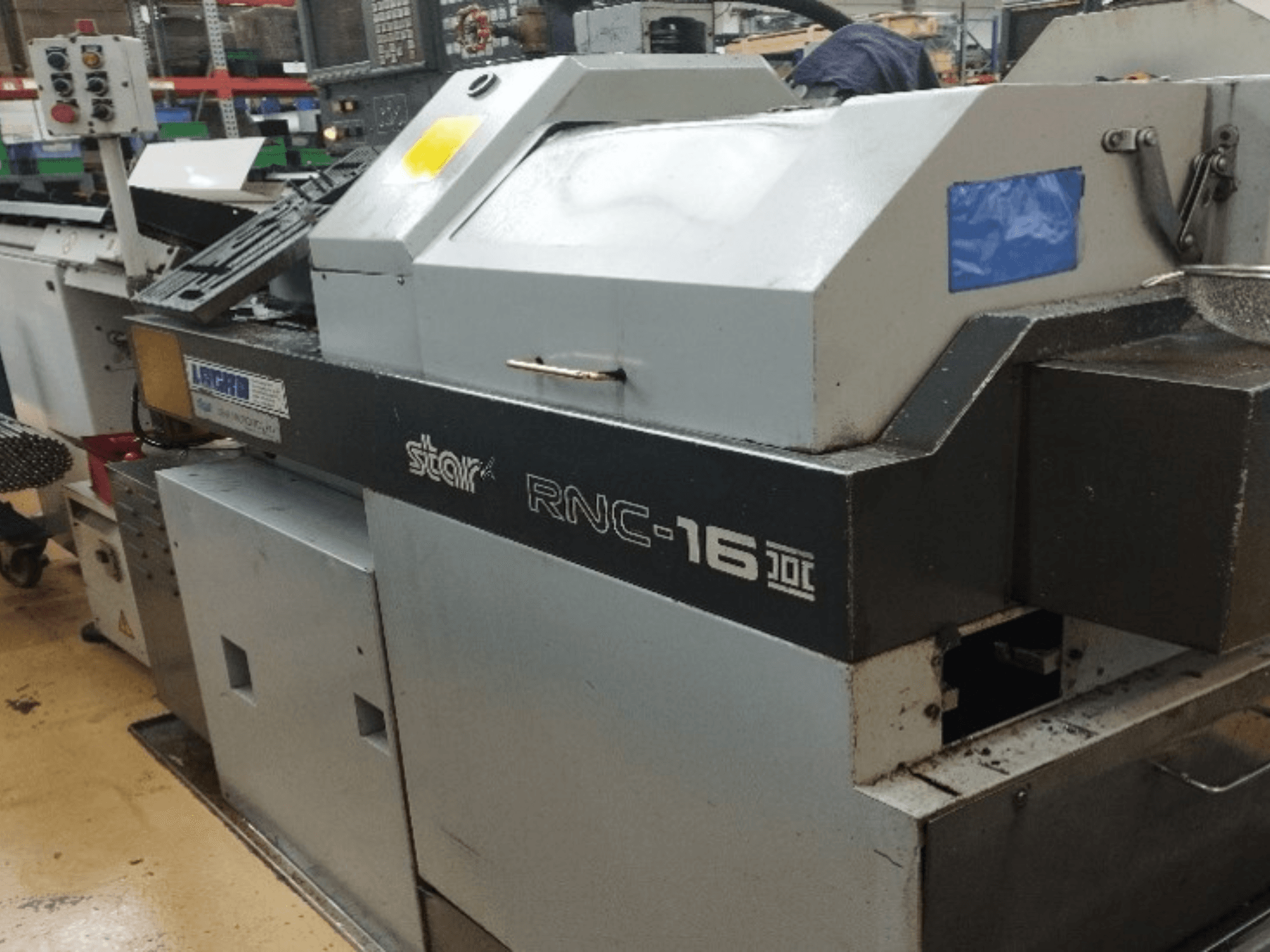

Swiss type turning machine manufactured in 1995. This Star RNC16B-1 features a belt-driven spindle motor and is equipped with a flexible coolant system for enhanced performance. If you are looking to get high-quality turning capabilities, consider the Star RNC16B-1 machine we have for sale. Contact us for further details.

Overview

brand: Star
year: 1995
MODEL: RNC16B-1
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star RNC16B-1

Control Unit

Control Brand: FANUC
Control Model: Series 0-TT

Movement

Number of Axes: 2

Technical Specification

Counter Spindle: Yes
Max. Bar Diameter: 16 mm

Additional Information

- Sub-Spindle / Counter Spindle: Equipped with synchronized pick-up sub-spindle for back working

- Sub-Spindle Controls: Front panel dedicated sub-spindle control switches (ON/OFF, COLLET OPEN/CLOSE)

- Back Working Attachment: Multi-station back-working block mounted opposite the counter spindle

- Main Spindle Max Bar Capacity: 16 mm (5/8")

- Controller: FANUC Series O-TT (Dual-path CNC control for simultaneous main and sub-spindle operations)

- Tooling Configuration: Gang-type slide tooling plus back-end working station

- Coolant System: Multi-point articulated coolant delivery hoses with integrated tray and recovery basin

- Drive System: Independent electric belt-driven spindle drive motor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
