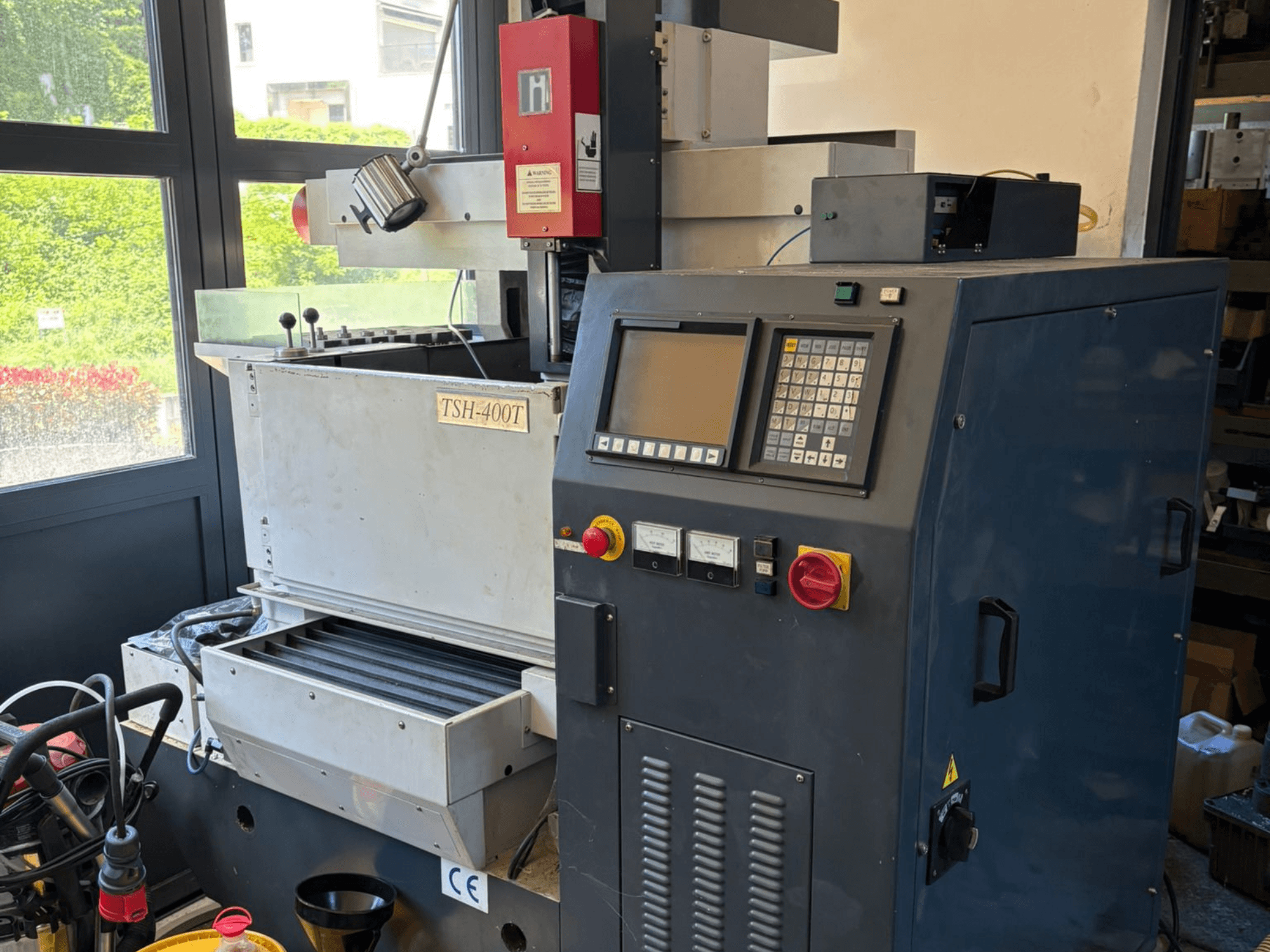

This 5-axis TOPEDM TSH-400T CNC EDM machine was manufactured in 2012. It features an X-axis travel of 400 mm, Y-axis travel of 400 mm, and Z-axis travel of 390 mm. The machine includes a stainless steel table size of 480 × 458 mm and an automatic electrode changer with 21 positions. If you are looking to get high-quality spark erosion hole drilling capabilities, consider the TOPEDM TSH-400T die-sinking EDM machine we have for sale. Contact us for further details.
Overview
- brand: TOPEDM
- year: 2012
- MODEL: TSH-400T
- application type: EDM
- Location: Croatia
- machine type: Die-Sinking EDM Machine
- control unit brand:
Technical Information - TOPEDM TSH-400T
Dimensions
- Machine Height: 2580 mm
- Machine Length: 2700 mm
- Machine Weight: 2100 kg
- Machine Width: 1900 mm
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 390 mm
Additional Information
Machine head travel: 310 mm
Stainless steel table size: 480 × 458 mm
Work tank size: 670 × 930 × 330 mm
Max. distance between guide unit and worktable: 315 mm
Electrode diameter: Ø0.15 – Ø6.0 mm
Submersible tank: Yes
Dielectric system: Pressure and deionization control
Max. machining current: 50 A
Max. power consumption: 5 kVA
Electrical data: 380 V, 50/60 Hz, 14.6 A
Additional equipment
Automatic Electrode Changer (AEC), 21 positions
Automatic Guide Changer (AGC), 5 guides
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
