➤ Used ONA NX6 - Die-Sinking EDM For Sale | gindumac.com

Show in original language

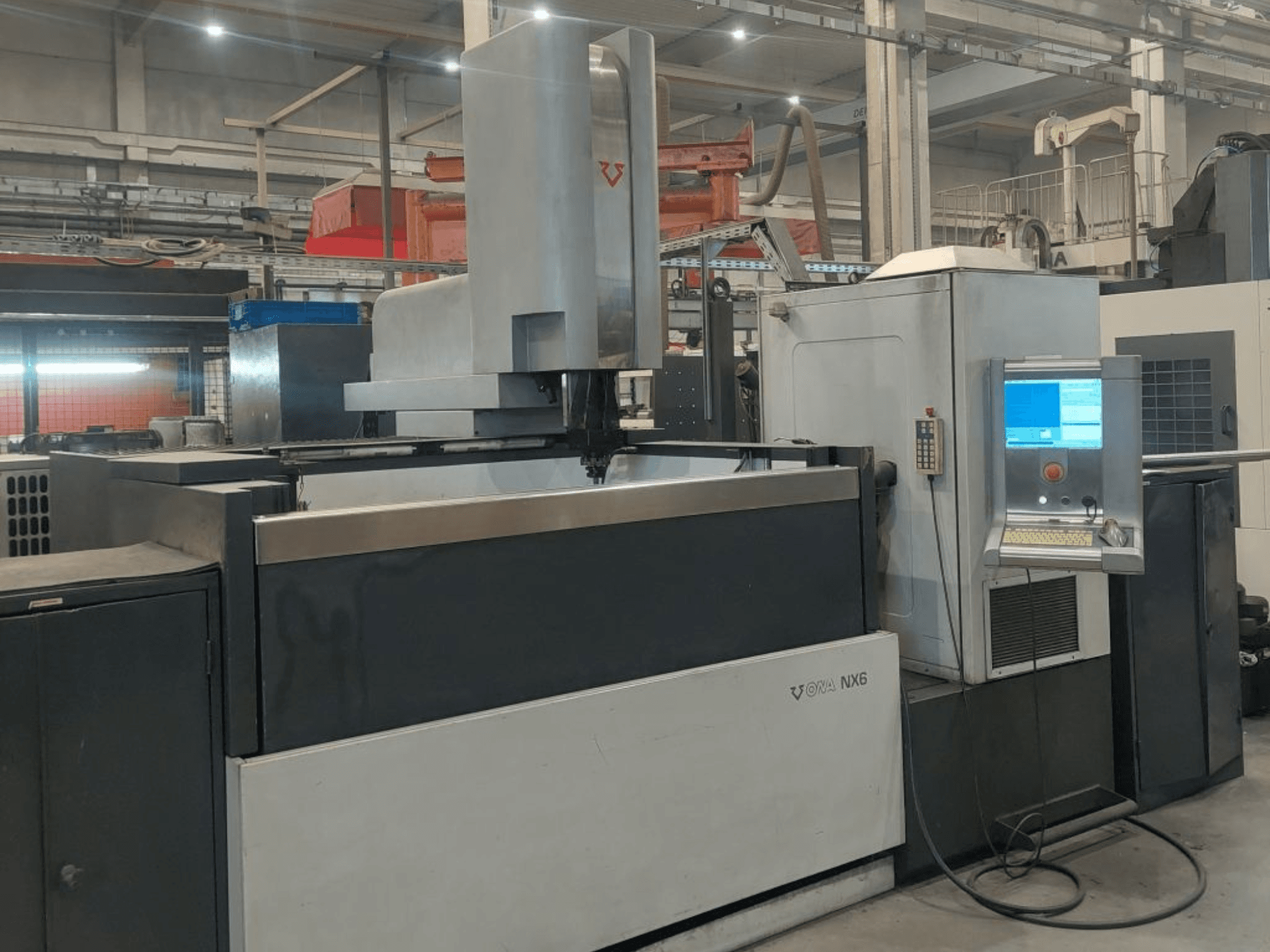

This 3-axis ONA NX6 die-sinking EDM machine was manufactured in 2007. It features a working table dimension of 1,000 × 700 mm and an impressive X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 400 mm. With a maximum table load of 4,000 kg, this machine is designed for high-quality machining capabilities. If you are looking to get high-quality die-sinking capabilities, consider the ONA NX6 machine we have for sale. Contact us for further details.

Overview

brand: ONA
year: 2007
MODEL: NX6
application type: EDM
Location: Croatia
machine type: Die-Sinking EDM Machine

Technical Information - ONA NX6

Dimensions

Machine Weight: 7400 kg
Table Load: 4000 kg

Movement

Number of Axes: 3
X-axis Travel: 800 mm
Y-axis Travel: 600 mm
Z-axis Travel: 400 mm

Additional Information

Working table dimensions: 1,000 × 700 mm
T-slots: 3 × 12 mm, 210 mm spacing
Maximum distance between table and head holder: 730 mm
Maximum workpiece dimensions: 1,700 × 950 × 650 mm
Maximum electrode weight: 500 kg
Tool clamping system: EROWA
Dielectric tank dimensions: 1,700 × 1,000 × 650 mm
Machining accuracy: 0.05 mm
Positioning accuracy: 0.01 mm
Repeatability: 0.01 mm
Total installed power: 9 kW
Electrical power rating: 20.3 kVA
Voltage: 400 V
Frequency: 50 Hz
Current: 29.3 A
Required air supply: minimum 6 bar
Total weight: 7,400 kg
Generator unit weight: 1,300 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
