ONA - QX4PT-EDM-ONA-2017-00001

Rs. 9,217,257
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

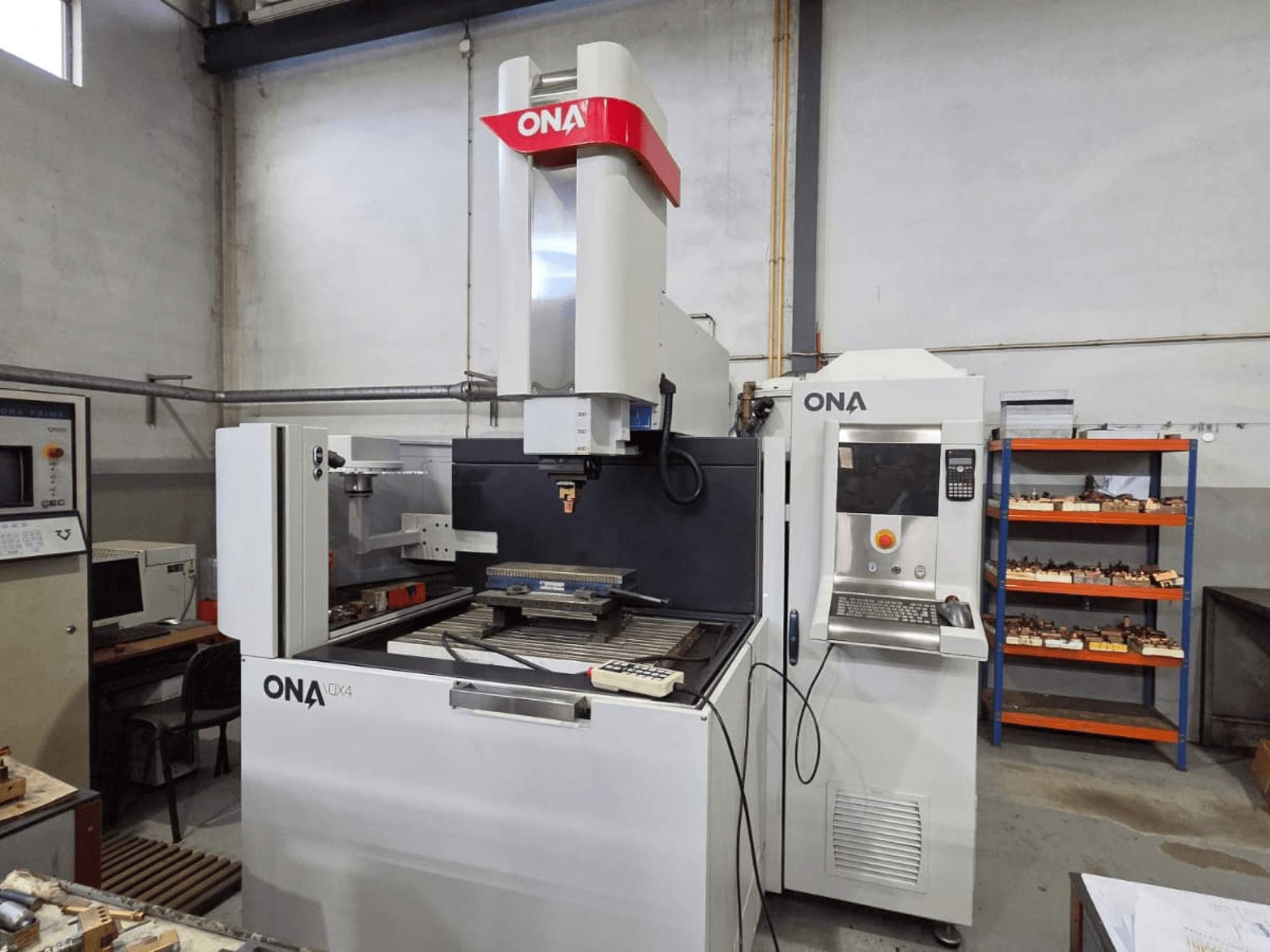

This 3-axis ONA QX4 die-sinking EDM machine was manufactured in 2017. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The work tank dimensions are 1060 x 750 x 480 mm, accommodating a maximum workpiece weight of 1500 kg. If you are looking to get high-quality die-sinking capabilities, consider the ONA QX4 machine we have for sale. Contact us for further details.

Overview

  • brand: ONA
  • year: 2017
  • MODEL: QX4
  • production hours: 19600
  • application type: EDM
  • Location: Portugal
  • machine type: Die-Sinking EDM Machine

Technical Information - ONA QX4

Dimensions

  • Machine Weight: 4350 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 400 mm

Additional Information

  • Work tank dimensions (L x W x H): 1060 x 750 x 480 mm

  • Maximum workpiece weight: 1500 kg

  • Maximum electrode weight: 100 kg

  • Distance table to headstock: 200–600 mm

  • Voltage: 400 V

  • Frequency: 50 Hz

  • Current: 25.8 A

  • Power: 17.9 kVA

  • Minimum air supply: 6 bar

  • Generator unit weight: 350 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
