➤ Used AGIE AGIETRON Innovation 2 For Sale | gindumac.com

Show in original language

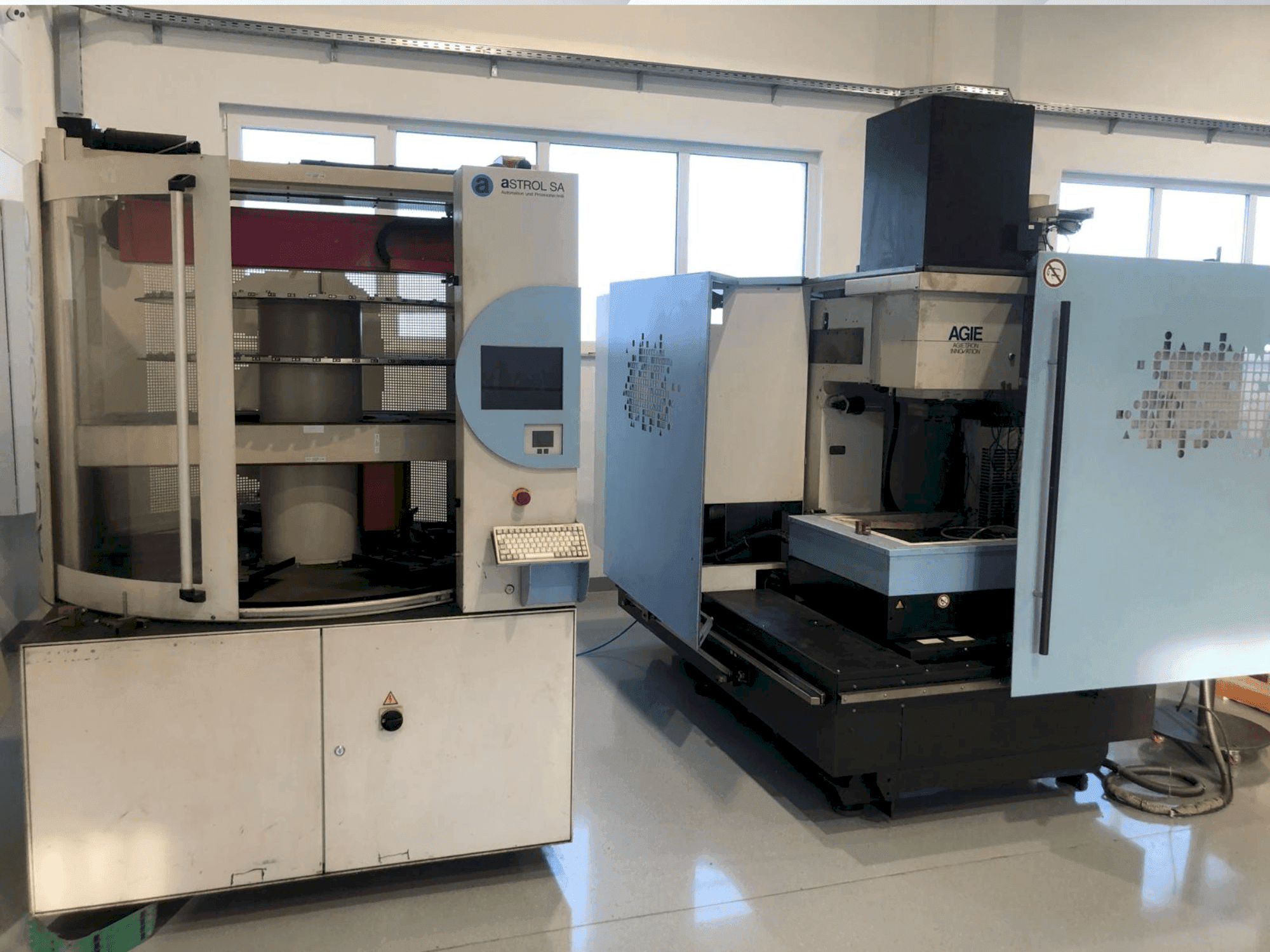

This 3-axis AGIE AGIETRON Innovation 2 die-sinking EDM machine was manufactured in 2002. It features a robust AGIEVISION control system, a 28-position electrode changer, and a C-axis for rotation, indexing, and erosion. The machine can handle workpieces up to 650 x 580 x 250 mm and 400 kg. It boasts a high-performance AGIE IPG generator with a removal rate of 450 mm³/min for copper/steel. Consider the opportunity to buy this AGIE AGIETRON Innovation 2. Contact us for more information.

Overview

brand: AGIE
year: 2002
MODEL: AGIETRON Innovation 2
application type: Cutting
Location: Croatia
machine type: Die-Sinking EDM Machine
availability: Immediately
control unit brand: AGIE

Technical Information - AGIE AGIETRON Innovation 2

Control Unit

Brand: AGIE
Model: AGIEVISION control system

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece x: 650 mm
Workpiece y: 580 mm
Workpiece z: 250 mm
Workpiece weight: 400 kg

Additional equipment

- AGIE IPG high-performance generator with 72 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from table to quill: 170-520 mm
- - Electrode changer: 28-position
- - C-axis for rotation, indexing, and erosion (u = 0-60 rpm)
- - Removal rate copper/steel: 450 mm³/min
- - Removal rate graphite/steel: 530 mm³/min
- - Best achievable surface finish: ra 0. 2 µm
Qualitative Machine Benefits:
- - Liftable keyboard and mouse
- - Work bowl can be lowered for optimum accessibility

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
