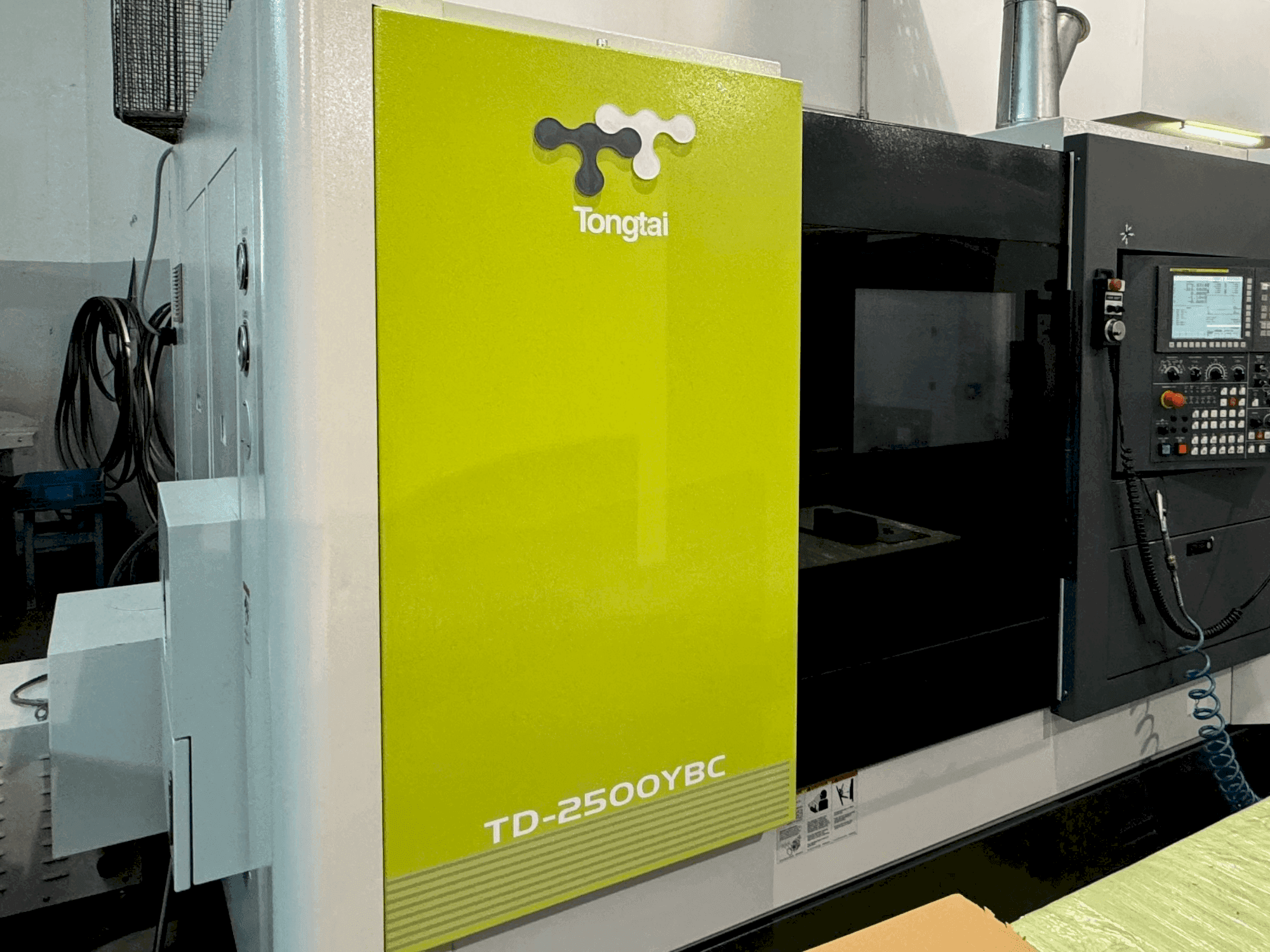

Front view of Tongtai TD-2500YBC  machine

Tongtai TD-2500YBC

Tongtai - TD-2500YBC

2019

Rs. 10,272,850

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TONGTAI TD-2500YBC Lathe was manufactured in 2019 in Taiwan. It is equipped with a FANUC Q1-TF control and has a spindle speed of 3500 rpm. The machine has 4 axes (X/Y/Z/B Axis Travel: 230/±51/600/630 mm) and can process a bar capacity of Ø64 mm. It is in a well-preserved condition with overall 7,600 operating hours.

Overview

  • brand: Tongtai
  • year: 2019
  • MODEL: TD-2500YBC
  • production hours: 7600
  • application type: Turning
  • Location: Slovenia
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: SI-TUR-TON-2019-00001

Technical Information

General Data

  • Machine weight: 6340 KG

Control Unit

  • Brand: FANUC
  • Model: Q1-TF

Main drive

  • Spindle speed range: 3500 1/MIN
  • Spindle motor power: 18.5
  • Number of axis: 4

Movement

  • X-AXIS Movement: 230 mm
  • Y-AXIS Movement: ±51 MM
  • Z-AXIS Movement: 600 MM
  • B-AXIS Movement: 630 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Travel distance x-axis: 230 mm
      • - Rapid traverse: x-axis: 30,000 mm/min - y-axis: 15,000 mm/min - z-axis: 30,000 mm/min
      • - Rotational speed: 3,500 rpm (min. )
      • - Chuck o. D. : 10" inch, bar capacity: Ø64 mm
      • - X/y/z/b axis travel: 230/±51/600/630 mm
      • - X/y/z/b axis rapid traverse: 30/15/30/30 m/min
      • - Spindle nose: a2-8
      • - Spindle motor: 18. 5/15/11 kw
      • - Sub-spindle chuck o. D. : [6"] inch, sub-spindle speed: [5,000] rpm, sub-spindle motor: [7. 5/5. 5] kw
      • - Tool capacity: vdi-40/bmt-65: 12 pc, vdi-30/bmt-55: 16 pc
    • Qualitative Machine Benefits:
      • - Well-preserved used cnc lathe, tongtai td-2500

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
