- ➤ Used THERMAL DYNAMICS UltraCut 200 | Plasma Cutter

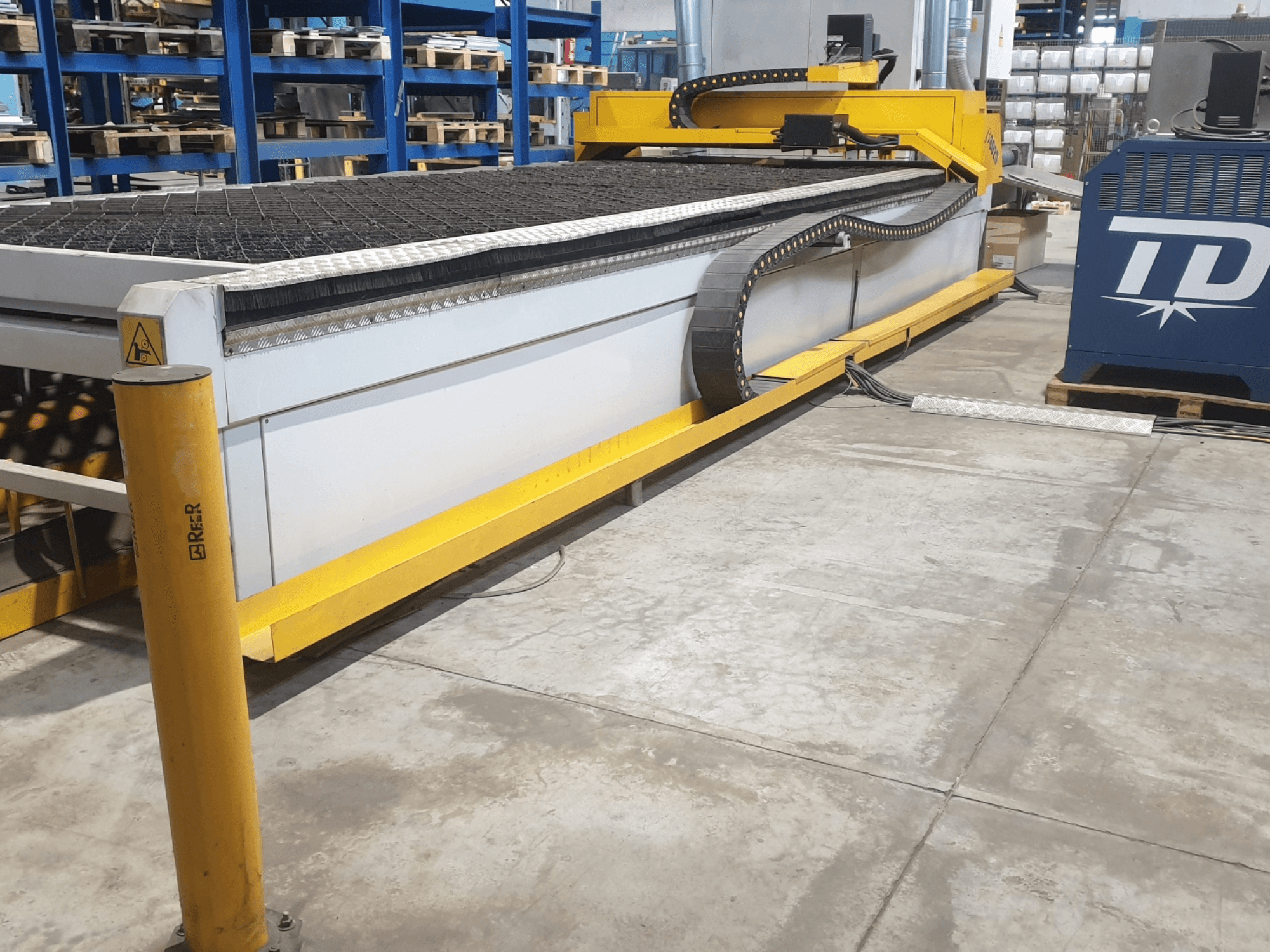

This Thermal Dynamics UltraCut 200 was manufactured in 2012. It features a robust output current range of 10-200 A and a duty cycle of 100% at 200 A, ensuring continuous operation. The cutting capacity on mild steel reaches up to 40 mm with a maximum edge start of 65 mm. It includes a liquid-cooled XT-300 precision torch and a DFC-3000 digital gas console with touchscreen. For more information about this machine, please reach out to us.
Overview
- brand: THERMAL DYNAMICS
- year: 2012
- MODEL: UltraCut 200
- application type: Cutting
- Location: Italy
- machine type: Plasma Cutting Machine
Technical Information - THERMAL DYNAMICS UltraCut 200
Dimensions
- Machine Depth: 1054 mm
- Machine Height: 978 mm
- Machine Weight: 197 kg
Additional Information
Control Interface: DFC-3000 digital gas console with touchscreen (TSC-3000)
Main Drive
Rated Output Power: 36 kW
Duty Cycle (at 40 °C): 100% @ 200 A, 180 V
Movement
Output Voltage Range: 80 – 180 V DC
Open Circuit Voltage: 380 V DC
Tools
Torch Type: XT-300 precision torch with SpeedLok™ cartridge system
Marking Function: Yes – plasma marking without changing consumables
Media
Plasma Gases: O₂, Ar-H₂, N₂, Air (8.3 bar)
Shield Gases: O₂, N₂, Air, H₂O (0.6 L/min water mist)
Cooling: Liquid-cooled (closed loop)
Additional Equipment
Communication: Fiber optic link for noise-free control
Certifications: CE, CCC, CSA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
