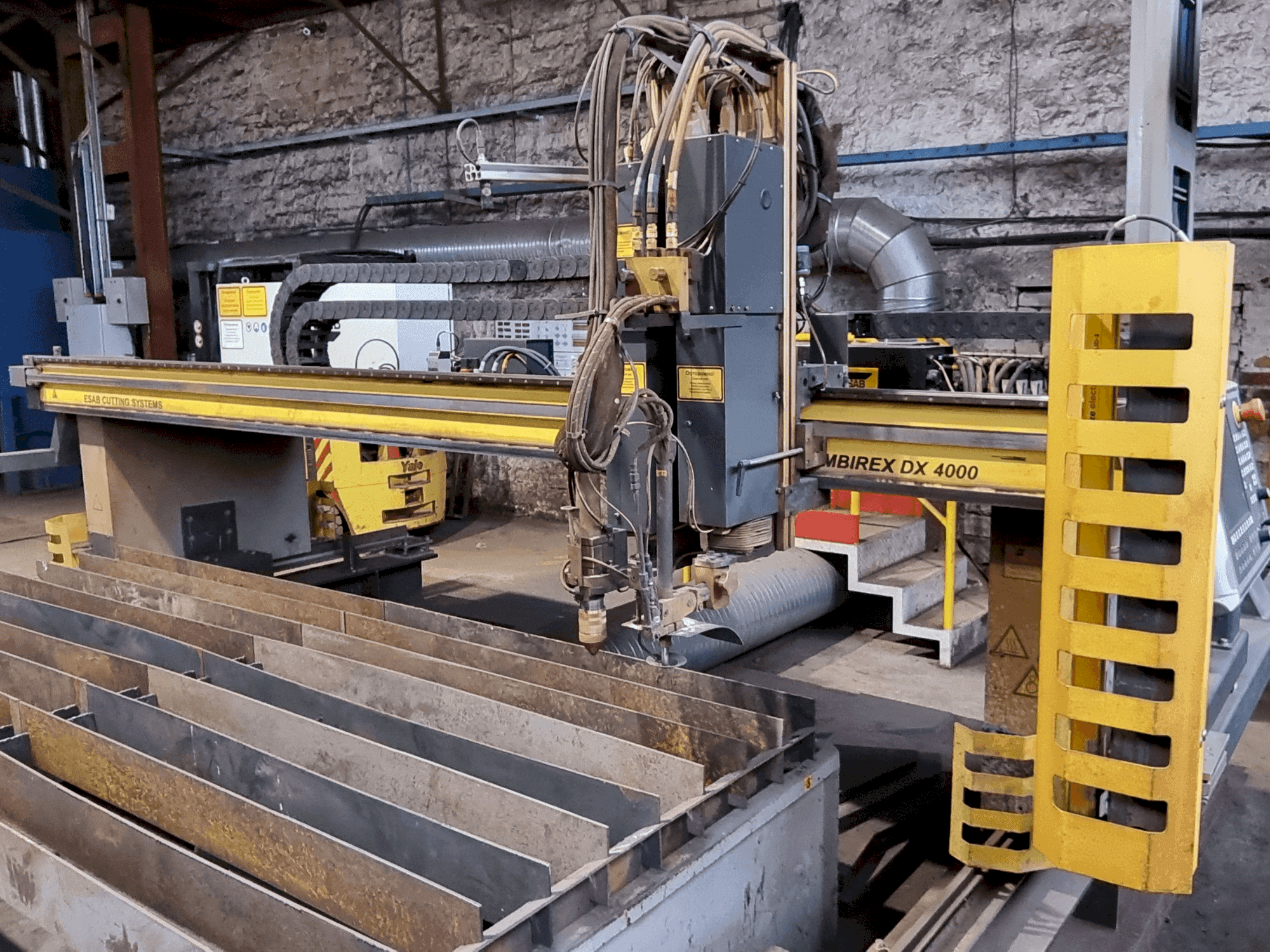

This 3-axis ESAB Combirex DX 4000 plasma cutting machine was manufactured in 2012. It features the ESAB WELDING & CUTTING Vission 51 control and a Precision Plasmarc 368 plasma source. Capable of cutting up to 40 mm with plasma and 300 mm with gas, it offers a cutting area of 3000 × 13000 mm. Consider the opportunity to buy this ESAB Combirex DX 4000 plasma cutting machine. Contact us for more information.
Overview
- brand: ESAB
- year: 2012
- MODEL: Combirex DX 4000
- application type: Cutting
- Location: Estonia
- machine type: Plasma Cutting Machine
- control unit brand: ESAB
Technical Information - ESAB Combirex DX 4000
General Data
- Measurements width: 5125 mm
- Measurements height: 2100 mm
Control Unit
- Brand: ESAB
- Model: EPP-360 Vis 51
Main drive
- Spindle speed range: 50.8–25000 mm/min 1/MIN
- Number of axis: 3
Additional Information
Machine Benefits
Technical Machine Benefits
- Work table height: 660–762 mm
- Recommended max plate width: 3000 mm
- Rail gauge: 4000 mm
- Internal clearance: 3683 mm
- Maximum table outside width: 3454 mm
- Cutting area: 3000 × 13000 mm
- Plasma cuts: up to 40 mm
- Gas cuts: up to 300 mm
- Parking area: 1440 mm
- Power requirement: 230/460/575 vac, 50/60 hz, single-phase, 30 amp (special input voltages available upon request)
Extra Information
Movement Axes: 3 Max Cross Travel with 1 Tool: 3500 mm Max Cross Travel with 2 Tools: 3500 mm Max Cross Travel with 3 Tools: 3300 mm Max Cross Travel with 4 Tools: 3100 mm Max Cross Travel with DMX: 3130 mm Max Cross Travel with DMX + 1 Oxy: 2920 mm Max Cross Travel with DMX + 2 Oxy: 2710 mm Max Cross Travel with DMX + 3 Oxy: 2500 mm Main Drive Plasma Source: Precision Plasmarc 368 Plasma Coolant Circulator: CC-11 COOLANT CIRCULATOR
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
