➤ Used AJAN PP 260 A-5T For Sale | gindumac.com

Show in original language

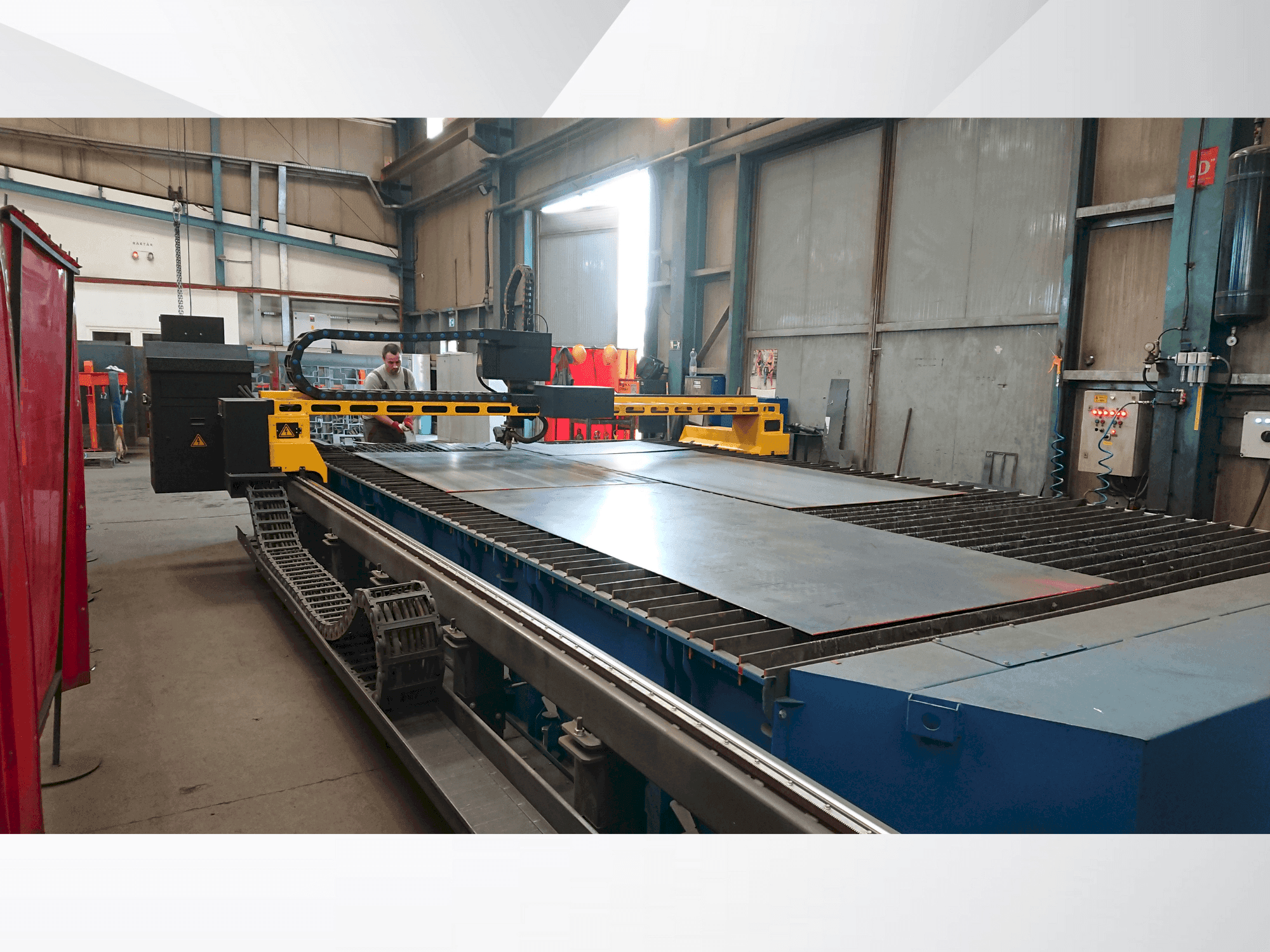

This 5-axis AJAN PP 260 A-5T plasma cutting machine was manufactured in 2015. It features a robust AJAN PP260A power source with a cutting capacity of up to 65 mm for mild steel and 50 mm for stainless steel and aluminum. The large working area spans 2000 mm by 8000 mm, and it includes an AJANCNC 952 Controller for precise control. Consider the opportunity to buy this AJAN PP 260 A-5T plasma cutting machine. Contact us for more information.

Overview

brand: AJAN
year: 2015
MODEL: PP 260 A-5T
application type: Cutting
Location: Hungary
machine type: Plasma Cutting Machine

Technical Information - AJAN PP 260 A-5T

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 8000 MM

Additional Information

Additional equipment

Cutting Gases: O₂, N₂, F5, H35 / Table Ventilation: Mechanical valve with JET filtration system/ Optional Features: Oxy-fuel torch, pipe cutting unit, industrial fume extraction system

Machine Benefits

Technical Machine Benefits

Cutting capacity: mild steel: up to 65 mm/ stainless steel: up to 50 mm/ aluminum: up to 50 mm
Piercing capacity: mild steel: 40 mm /stainless steel: 25 mm /aluminum: 25 mm
Max. Positioning speed: 15 m/min
Positioning accuracy: ±0. 01 mm
Number of axes: 5 (with bevel cutting capability)
Control system: linux-based / software: ajancad and ajancam v7. 0

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
