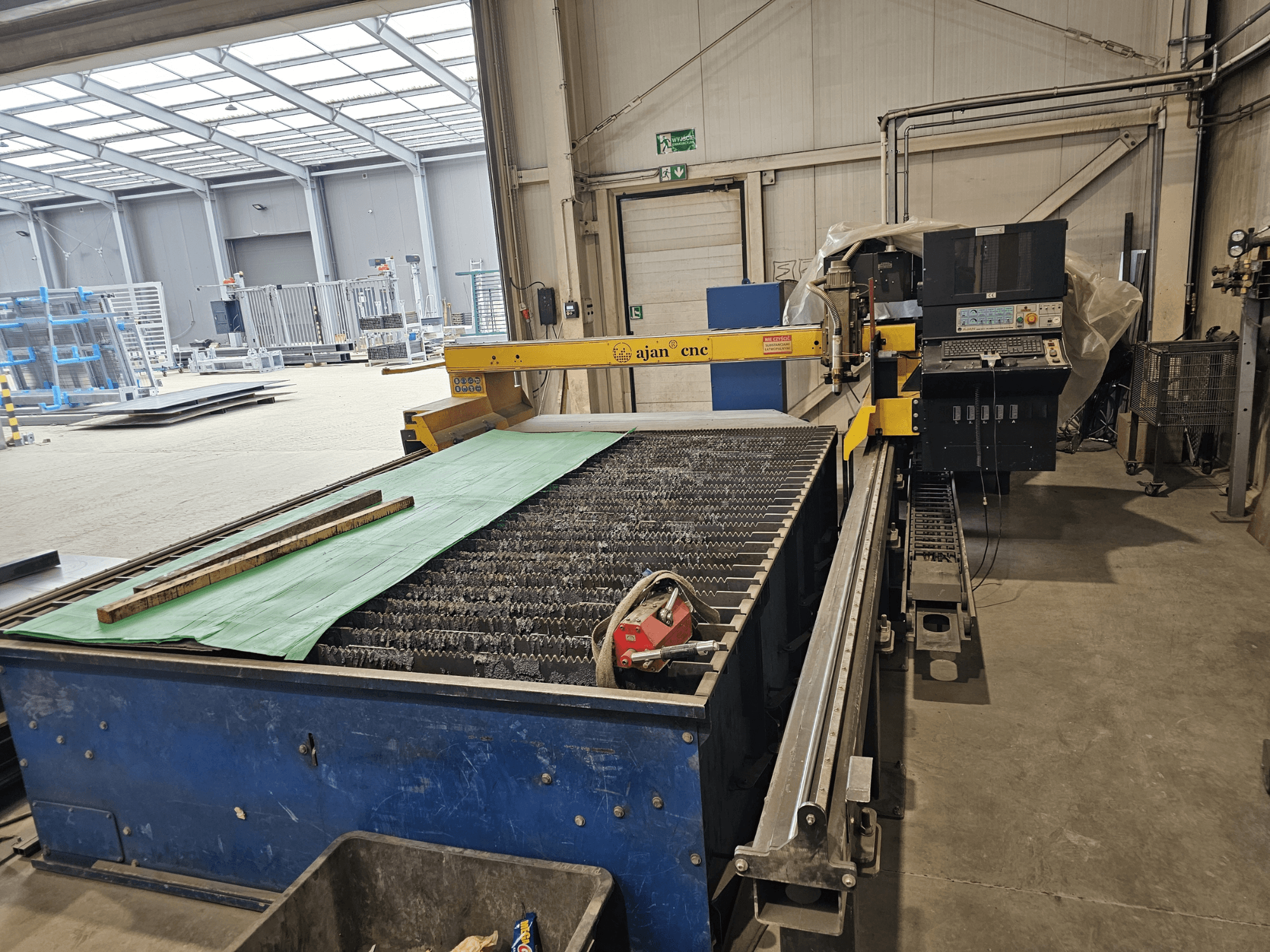

This 3-axis AJAN PP16011 Auto plasma cutting machine was manufactured in 2016. It features a cutting area of 2000 x 3000 mm and can handle a maximum cutting thickness of up to 30 mm. The machine is equipped with a fume extraction and filtration system, ensuring a cleaner working environment. If you are looking to get high-quality plasma cutting capabilities, consider the AJAN PP16011 Auto machine we have for sale. Contact us for further details.
Overview
- brand: AJAN
- year: 2016
- MODEL: PP16011 Auto
- production hours: 3830
- application type: Cutting
- Location: Poland
- machine type: Plasma Cutting Machine
Technical Information - AJAN PP16011 Auto
Dimensions
- Machine Weight: 300 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 2000 mm
Additional Information
Condition: Very good, fully functional
Working hours: 3830 h
Machine under power: Yes
Cutting system: CNC plasma / oxy cutting
Plasma generator: PP130A (included)
Max cutting thickness: up to 30 mm
Machine parameters:
Installed power: 4 kW
Power supply: 400 V / 3 PH / 50 Hz
Input current: 6 A
Plasma generator parameters (PP130A):
Max power consumption: 26 kW
Power supply: 400 V / 3 PH / 50 Hz
Max input current: 40 A
Weight: 520 kg
Documentation included: user manual, operation manual, technical documentation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
