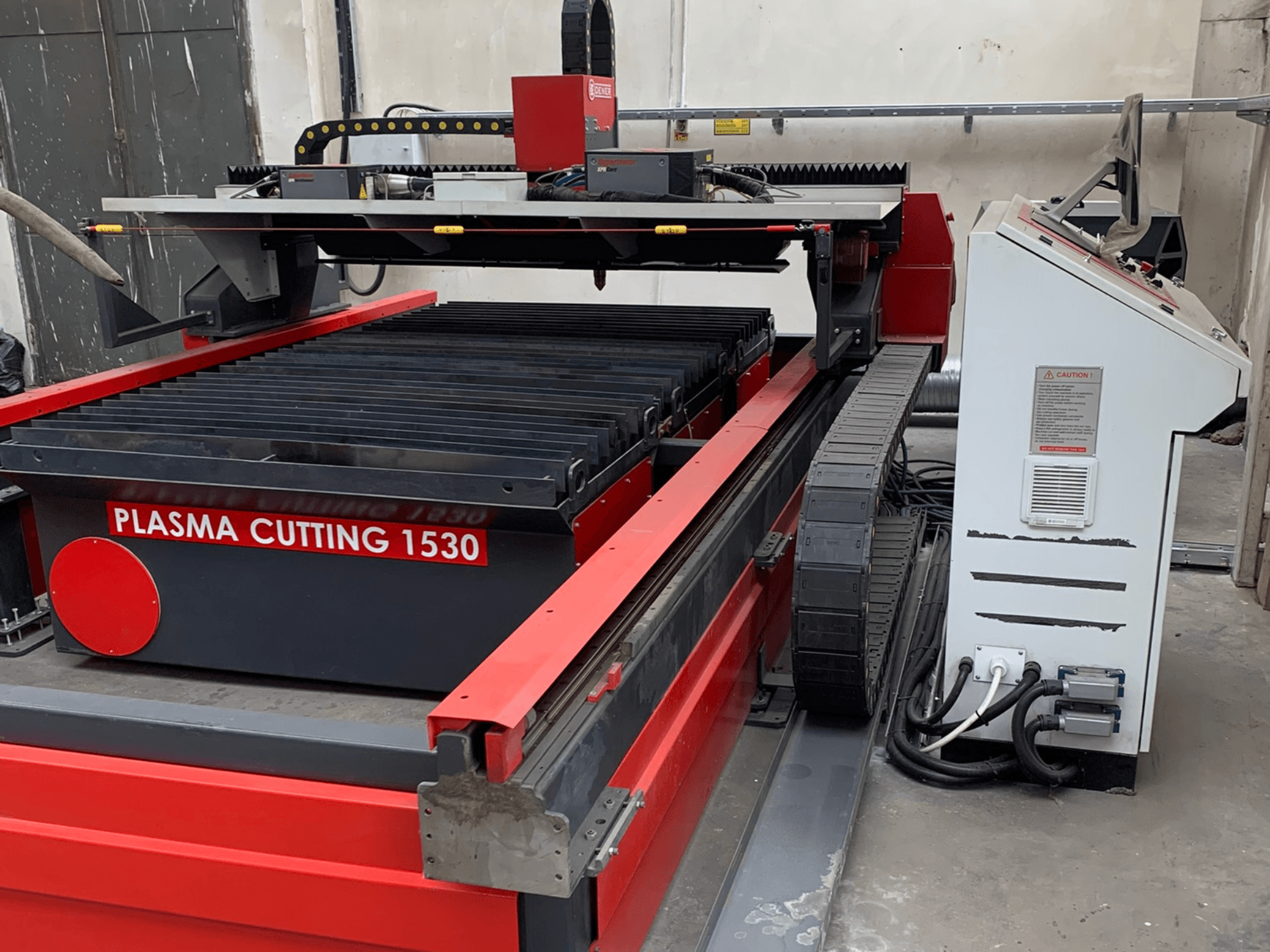

This 3-axis DENER PL 1530 plasma cutting machine was manufactured in 2019. It features a cutting width of 1,500 mm and a cutting length of 3,000 mm, equipped with a Hypertherm HPR 130 XD high-definition plasma source. The machine is in new condition, installed but never used, with 0 working hours. If you are looking to get high-quality plasma cutting capabilities, consider the DENER PL 1530 machine we have for sale. Contact us for further details.
Overview
- brand: DENER
- year: 2019
- MODEL: PL 1530
- application type: Cutting
- Location: Hungary
- machine type: Plasma Cutting Machine
Technical Information - DENER PL 1530
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 3000 mm
Additional Information
Condition: As-new; installed ~95%, powered on only; 0 working hours
Plasma source: Hypertherm HPR 130 XD high-definition
Working area: X 1,500 mm; Y 3,000 mm
Table/cutting heights: Table 750 mm; Cutting 570 mm
Axes/drives:
X: double synchronized AC servo, rack & pinion
Y: synchronized AC servo, rack & pinion (double-sided brushless AC servos)
U: double synchronized AC servo
Motors: brushless AC servo
Rapid positioning speed: 26 m/min
Positioning accuracy: ±0.01 mm (X/Y/U)
Control and HMI:
DENER factory CNC, Windows-based
12" TFT LCD monitor, fixed CNC panel + separate control panel
Celeron 733 industrial CPU, 20 GB industrial HDD
Standard keyboard and PS/2 mouse
Cutting system/features:
Automatic height sensing and following; Hypertherm arc height control
Collision protection on plasma head
Plasma ignition control; speed control unit
Sheet alignment/positioning function
Independent sectional cutting table separated from bridge/frame, with automatic fume extraction doors
Head bridge and side guides
CE conformity; colored signal lights
Electrical/data:
Power supply: 400 V ±10%, 50–60 Hz ±2%
Power: 27 kW
Working temperature: -10 °C to +30 °C
Communication/IO:
2x RS-232, 2x USB 2.0, LAN
Encoder fault diagnosis; max encoder input frequency 500 kHz
Analog inputs for potentiometer
Additional equipment
Nesting PC software (as per original offer)
Spare parts kit (1 set)
Spare parts, consumables and starter kit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
