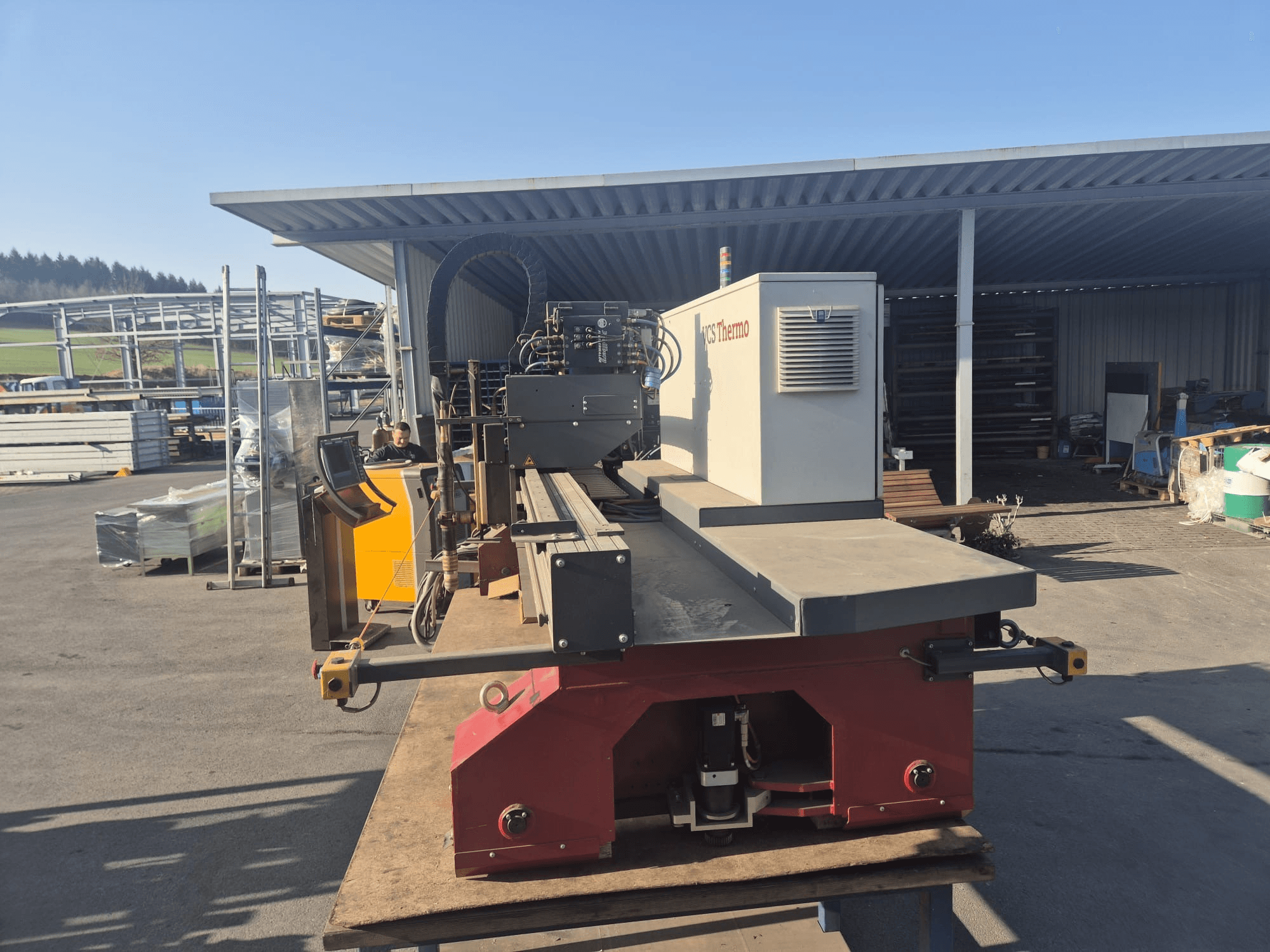

VOORTMAN - VACAM VCS ThermoDE-CUT-VOO-2013-00001

• Working area: 3000 mm (length) x 1500 mm (width)

• Machine structure: Heavy steel frame construction; portal gantry design

• Material support: Sectional support bed

• Plasma cutting unit: Kjellberg HiFocus 280i

• Max plasma thickness: up to approx. 70 mm

• Cutting capacity (steel): 6 / 12 / 20 / 25 / 30 / 40 / 50 / 70 mm

• Cutting speed range: approx. 0–5200 mm/min

• Positioning speed: approx. 12,000 mm/min

• Positioning accuracy: ±0.1 mm

• Control system: VACAM CNC control

• Software: VACAM Machine Edition; VACAD; VANEST

• Industrial PC: Intel Core 2 Duo; 2 GB RAM; SSD storage; Ethernet connection; touchscreen monitor; keyboard; USB ports

• Automatic torch height control: HT4000 PCS

• Laser pointer: Yes

• Electrical connection: 230 V, 1 phase, 50 Hz

• Compressed air requirement: Operating pressure approx. 6 bar

• Noise level (idle): approx. 70 dB

• Safety equipment: Emergency stop buttons; emergency stop cable; protective safety systems

• Material types: Steel; structural steel; sheet metal

Additional equipment

• TEKA Filtercube 4H extraction unit (filter system)
