➤ Used Hypertherm HPR130XD For Sale | gindumac.com

Show in original language

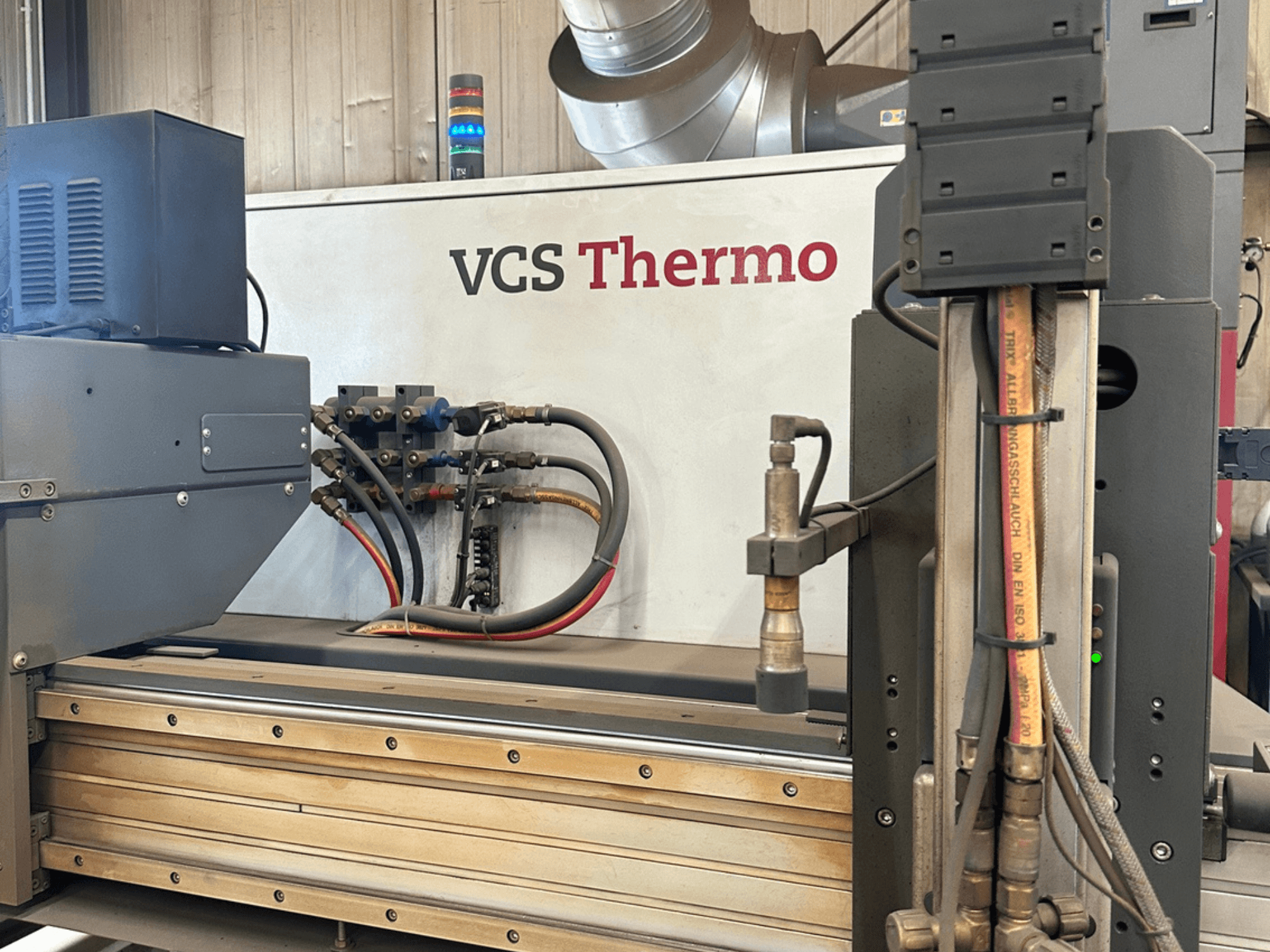

This 3-axis Hypertherm HPR130XD plasma cutting machine was manufactured in 2013. It features a power output of 130A with a 100% duty cycle, and operates at a voltage input of 400V. The included TEKA air extraction unit has a volumetric flow rate of 7500 m³/h and a motor power of 7.5 kW. If you are looking to get high-quality plasma cutting capabilities, consider the Hypertherm HPR130XD machine we have for sale. Contact us for further details.

Overview

brand: Hypertherm
year: 2013
MODEL: HPR130XD
production hours: 350
application type: Cutting
Location: Germany
machine type: Plasma Cutting Machine
Available from: 28/09/2026

Technical Information - Hypertherm HPR130XD

Movement

Number of Axes: 3
X-axis Travel: 3000 mm

Additional Information

- Plasma System Power Output: 5A/82V - 130A/132V (100% Duty Cycle at 130A, 150V)

- Plasma System Voltage Input (U1): 400V, 3-Phase, 50/60 Hz

- Plasma System Input Current (I1max): 32A

- Plasma System Power Rating (S1): 22kVA

- Plasma System Open Circuit Voltage (U0): 311V

- Air Extraction Unit Model: Filtercube 4H

- Air Extraction Year of Manufacture: 04/2013

- Air Extraction Volumetric Flow Rate: 7500 m³/h

- Air Extraction Max Static Pressure: 3950 Pa

- Air Extraction Motor Power: 7.5 kW

- Air Extraction Nominal Current: 15.5 A

- Air Extraction Supply Voltage: 400V (3PH+N+PE), 50Hz

- Air Extraction Control Voltage: 230V

- Air Extraction Mass/Weight: 380 kg

- Air Extraction Protection Class: IP54

- Control / Electrical Cabinet Drives: ECOVARIO / KOCH components (Y1-Drive, X-Drive, XX-Drive, Z-Drive)

Additional Equipment:

Gas bottle setup with regulators, status indicator light tower

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
