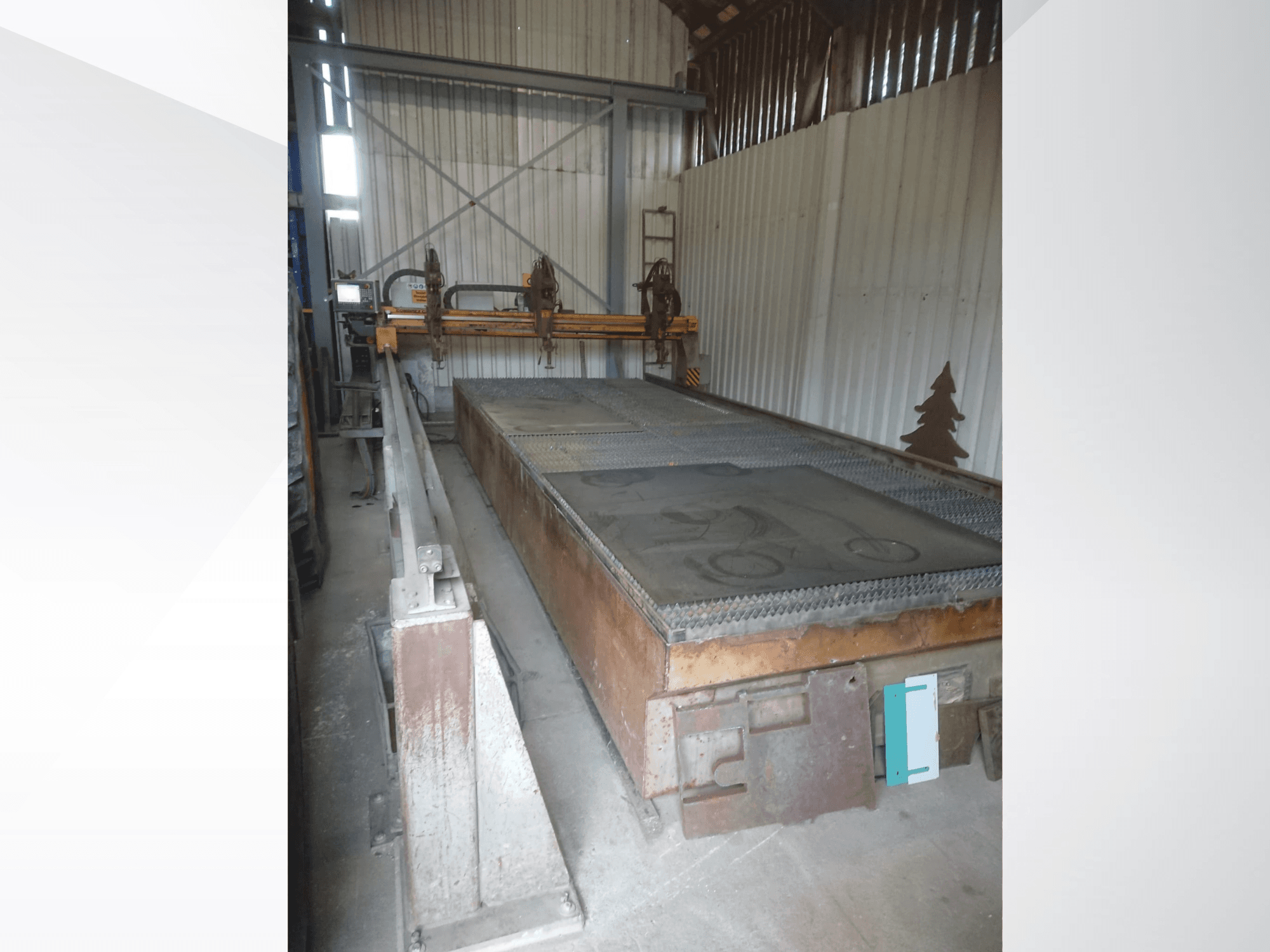

ESAB - Combirex CXD P 3500CH-CUT-ESA-1997-00001

• Cutting table: 2,000 x 6,000 mm with sectional extraction

• Track length: 8,000 mm

• Track gauge: 3,500 mm

• Three oxyfuel torches with capacitive height sensing

• One torch carriage designed as an interchangeable system for plasma torch mounting

• Supply voltage: 230 V

• Apparant power: 4.0 kVA

• Frequency: 50 Hz

• Power source: Hypertherm Powermax 1650

• Torch type: T100M

• Cutting current: 100 A

• Torch-to-work distance: 3.2 mm

• Maximum recommended cutting thickness (Mild Steel): 31.8 mm

• Maximum recommended cutting thickness (Stainless Steel): 31.8 mm

• Maximum recommended cutting thickness (Aluminium): 25.4 mm

• Machine retrofitted in 2008:

New Hypertherm Powermax 1650 plasma source (up to 25 mm steel) including torch

New Vision 51 control system

• Conversion to dual-sided X-axis drive

• Optional: Rotoclean RC-S80 extraction system

• Automatic filter cleaning

• Optional: various spare parts for oxyfuel and plasma operation available

Oxyfuel cutting has not been used for a long time and may require maintenance
