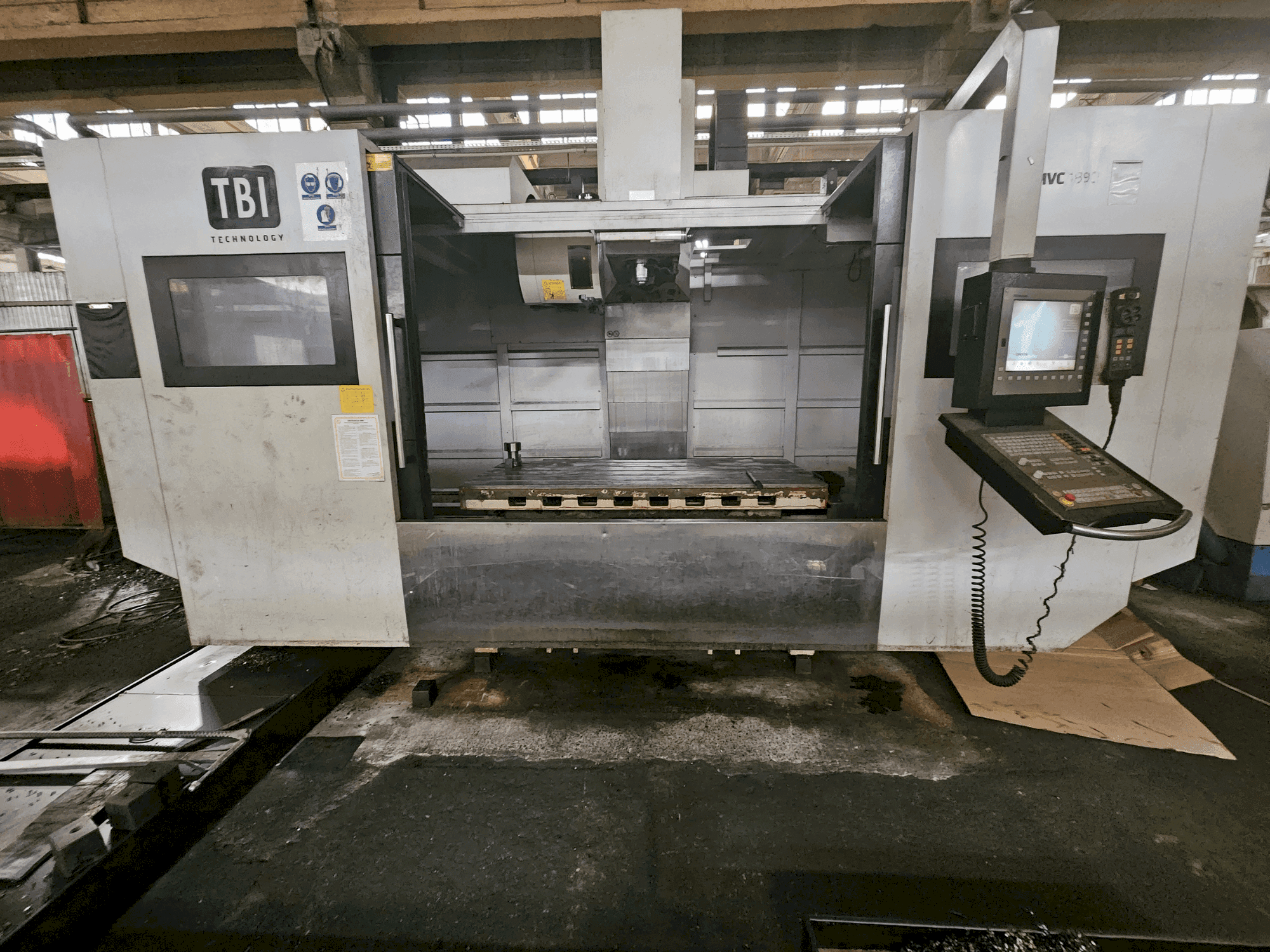

This 3-axis TBI MVC 1890 was manufactured in 2013. It features a robust cast iron body, cross-slide table design, and slideway guides on all axes for enhanced rigidity and precision. Key specs include a Heidenhain CNC control, SK40 spindle taper, and a maximum spindle speed of 12000 rpm. It also boasts a 24-position automatic tool changer and integrated chip conveyor. Consider the opportunity to buy this TBI MVC 1890 vertical machining centre. Contact us for more information.

Overview

brand: TBI
year: 2013
MODEL: MVC 1890
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TBI MVC 1890

General Data

Machine weight: 17000 KG

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 rpm 1/MIN
Tool taper: SK 40

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 900 mm
Z-AXIS Movement: 1020 mm

Additional equipment

- Under-Table Chip Flushing System
- Integrated Chip Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Voltage: 400 v
- - Power requirement: 45 kva
- - Rigid tapping without compensating chuck
- - Electronic handwheel for manual control
- - Data transmission: usb and fast ethernet
- - Through-spindle coolant: 20 bar
- - Spindle air blast, air and liquid cooling
- - 24-position automatic tool changer
- - Manual coolant wash guns

Extra information

- Heavy-duty cast iron body with cross-slide table design for maximum rigidity Slideway guides on all axes with four slideways on Y-axis for extra stiffness Spindle thermal stabilization, Z-axis counterbalance, and centralized lubrication system for high precision and long-term accuracy

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
