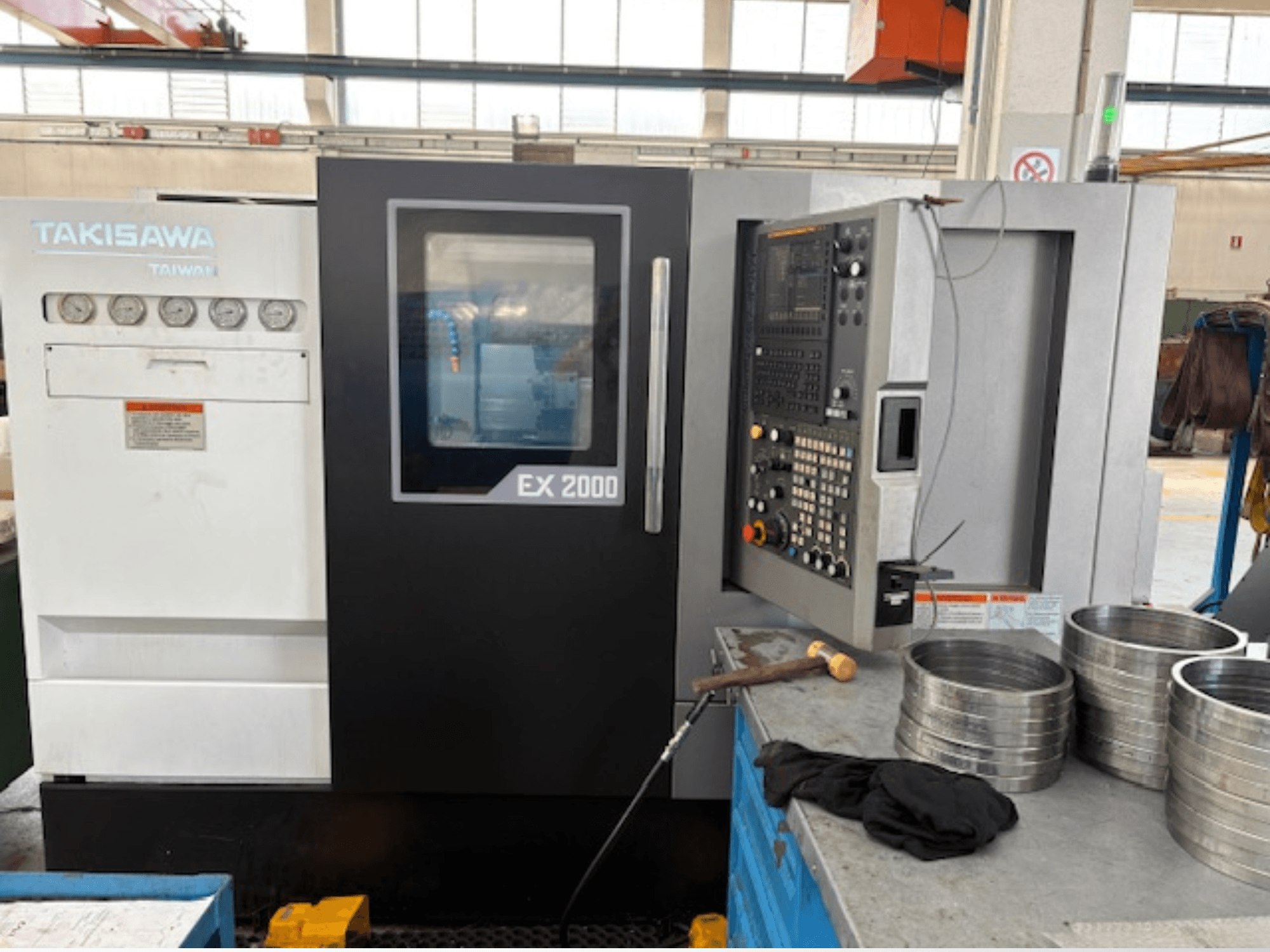

Takisawa EX 2000 CNC machine, front view, featuring control panel, gauges, and metal parts on a workshop table.
Takisawa EX 2000 CNC machine, front view, featuring control panel, gauges, and metal parts on a workshop table.

Takisawa - EX 2000 MSIT-TUR-TAK-2020-00001

Rs. 10,249,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Takisawa EX 2000 MS was manufactured in 2020, featuring a Fanuc 0i-T Plus control system. It offers a max turning diameter of Ø 390 mm and a length of 510.5 mm, with a bar capacity of Ø 65 mm. The machine includes a 12-position driven turret and rapid traverse rates of 30 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high quality turning capabilities consider the Takisawa EX 2000 MS machine we have for sale. Contact us for more information.

Overview

  • brand: Takisawa
  • year: 2020
  • MODEL: EX 2000 MS
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine

Technical Information - Takisawa EX 2000 MS

General Data

  • Measurements width: 1987 mm
  • Measurements depth: 3847 mm
  • Measurements height: 1700 mm
  • Machine weight: 4200 kg

Movement

  • X-AXIS Movement: 250 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Rapid traverse: 36 m/min
  • Z-AXIS Movement: 590 mm
  • B-AXIS Movement: 570 mm

Additional Information

Additional Information

  • Main Spindle Power: 15 kW

  • Sub Spindle Power: 11 kW

  • Main Spindle Torque: 224 Nm

  • Sub Spindle Torque: 58.5 Nm

  • Main Spindle Speed: 4500 rpm

  • Sub Spindle Speed: 5000 rpm

  • Main Spindle Nose: A2-6

  • Sub Spindle Nose: A2-5

  • Chuck Size Main: 8”

  • Chuck Size Sub: 6”

  • Table Size: 1350 × 690 mm

  • Positions: 12 driven positions

  • Max Turning Diameter: Ø 390 mm

  • Max Turning Length: 510.5 mm

  • Max Bar Capacity: Ø 65 mm

  • Max Swing Diameter: Ø 800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
