TACCHI GIACOMO - FT45S CNCGB-BOR-TAC-2011-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- TACCHI GIACOMO FT45S CNC Boring machine
Show in original language

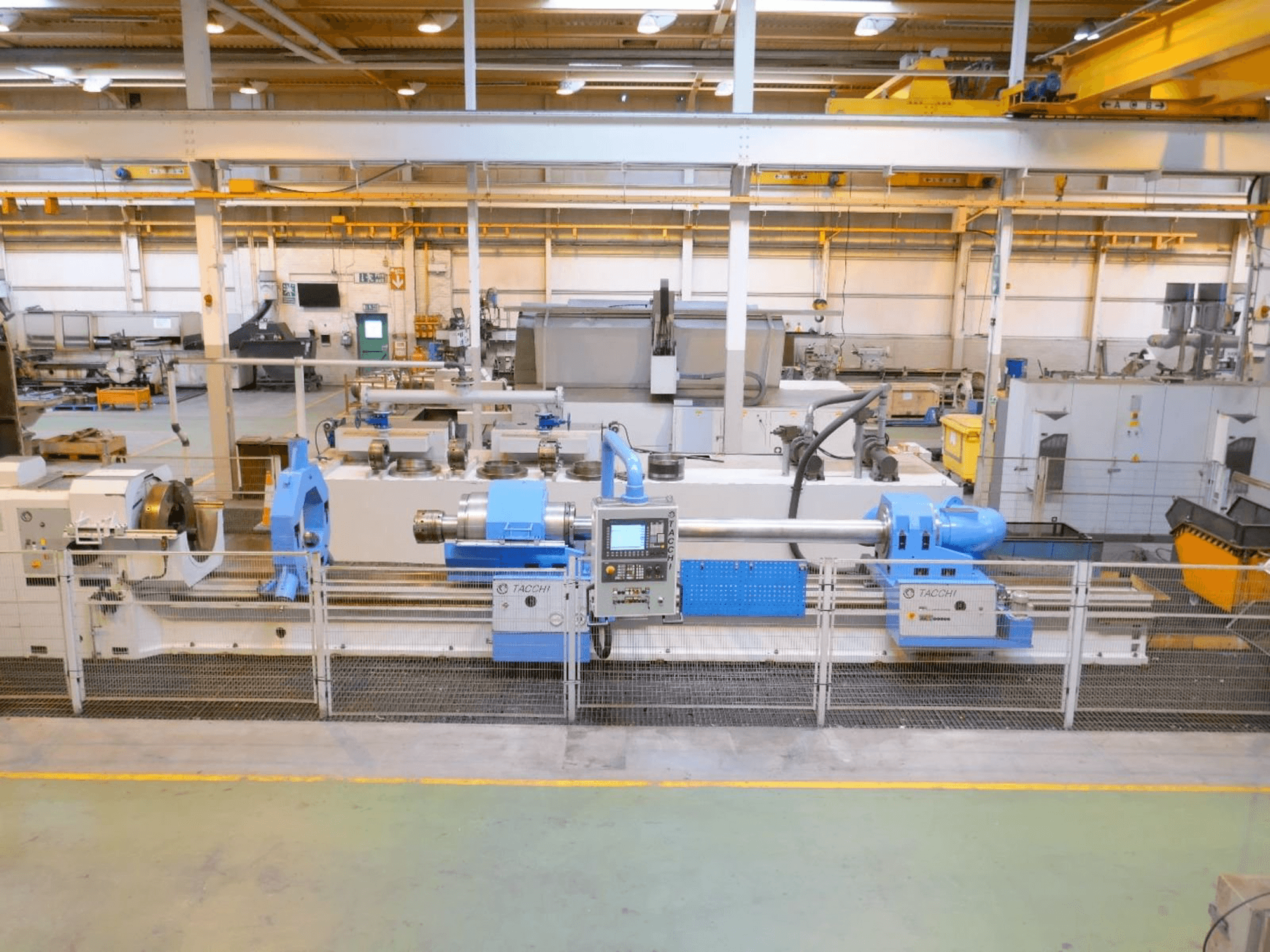

This TACCHI GIACOMO FT45S CNC Boring machine was manufactured in the year 2011 in Italy. It is equipped with a SIEMENS 840 DE control unit. The machine has a spindle speed of 4 - 600 rpm.
Overview
- brand: TACCHI GIACOMO
- year: 2011
- MODEL: FT45S CNC
- application type: Other Machine Tools
- Location: United Kingdom
- machine type: Boring Machine (Metal)
- control unit brand: SIEMENS
Technical Information - TACCHI GIACOMO FT45S CNC
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 DE
Dimensions
- Machine Weight: 42000 kg
Technical Specification
- Spindle Speed: 600 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Boring carriage feeds, infinitely variable : 1 – 4000 mm/min ,rapid traverse : 4000 mm/min ,feed force: 50,000 n
- 1 off boring tube steady, max. Capacity 346 mm. 800mm rohm 3 jaw high grip geared chuck.
- Coolant tank, 16,000 litre.
- Magnetic oil filtration 1600 lt/min.
- Hydraulic approach stroke : 150 mm
- Floor space approx. : 13,000 x 5,000 kg
- Machine equipped with :- coolant oil pumping station with 2 pumps, flow rate 250-1600 lt/min. , 10 bar.
- Bta rotating oil pressure head, size 218 s. Max. Boring bar 346 mm. Boring bushes, rings and seals.
- 3 off boring tubes (154mm and 226mm x 4500mm thread connection, 346mm x 4500mm flange connection).
- Solid boring heads 255, 300, 350, 370, 380, 400mm. 1 off 3 point roller work piece steady, 200 – 650 mm, capacity 6000 kg.
Technical Machine Benefits
- Centre height : 500 mm
- Swing over bed : 1000 mm
- Width of bed : 520 mm
- Boring diameter capacity solid boring : 20 – 280 mm
- Trepanning : 50 – 500 mm
- Counter boring : 550 mm
- Max. Boring depth : 3000 mm
- Spindle bore: 128 mm
- Drive power (ac brushless main motor) : 100 kw
- Maximum torque : 25. 000 nm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
