➤ Used T-Rex Servo 2040 For Sale | gindumac.com

Show in original language

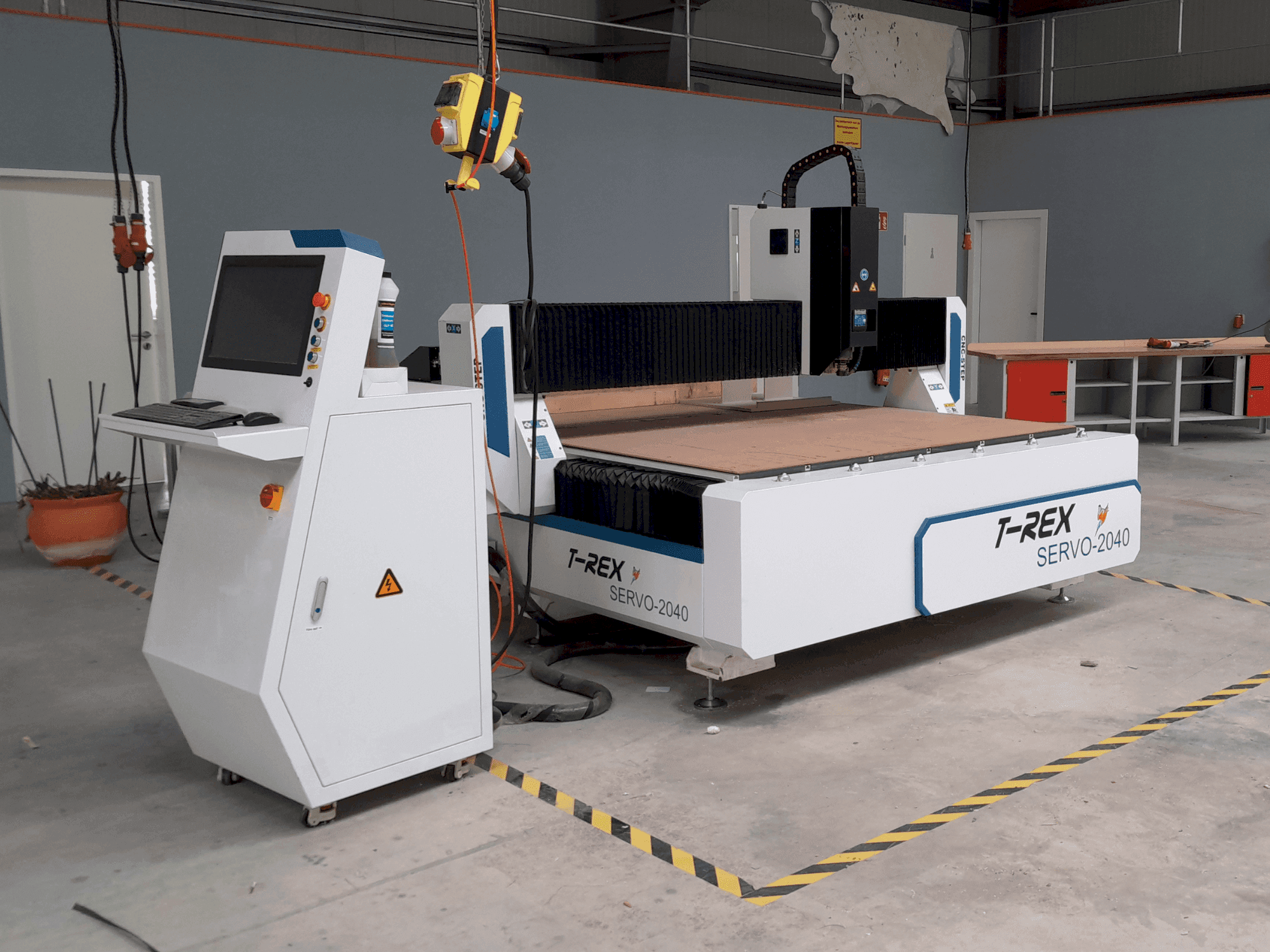

This 3-axis T-Rex Servo 2040 gantry milling machine was manufactured in 2021. It features a robust vacuum plate with T-slot rails, an advanced control system, and a KinetiC-NC interface. Equipped with a 21.5-inch Full HD touchscreen monitor and a powerful Intel 13-core processor, it ensures precise and efficient operations. The machine includes a high-frequency 6.6kW spindle and an automatic tool change station for enhanced productivity. Consider the opportunity to buy this T-Rex Servo 2040 gantry milling machine. Contact us for more information.

Overview

brand: T-Rex
year: 2021
MODEL: Servo 2040
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - T-Rex Servo 2040

General Data

Measurements width: 4508 mm
Measurements depth: 7760 mm
Measurements height: 2060 mm

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 3

Additional equipment

- Automatic lubrication
- Side channel blower 7.50 kW
- Coolant reservoir
- CNC wireless remote control

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Safety fences with sliding door
- - Door contacts for safety fence
- - 10m connection cable and neutrik connector
- - Complete set including converter and pneumatics
- - Tool change system assembly and setup
- - Hosing including air/water hoses, installation and software setup
- - Network: netgear prosafe business switch 5-port - gigabit - emc
- - Transponi floor substructure / external dimensions 504 x 290 x 25 cm

Extra information

- Control Unit 21.5-inch Full HD touchscreen monitor Intel 13-core processor with 4GB RAM and 120GB SSD Pre-configured with Windows 10 Professional Main Drive Hiteco HF spindle 6.6kW Movement Travel: 4000 x 2000 x 200 mm (X/Yi2) Tools Glach tool change station - SK30 chucks Max. cutter length 70mm SK30 tool holder for ER32 collets ER32 collet set - 3.0-20.0mm, 18-point, High Precision Run-out accuracy 0.0006* Noga spray cooling set - Automatic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
